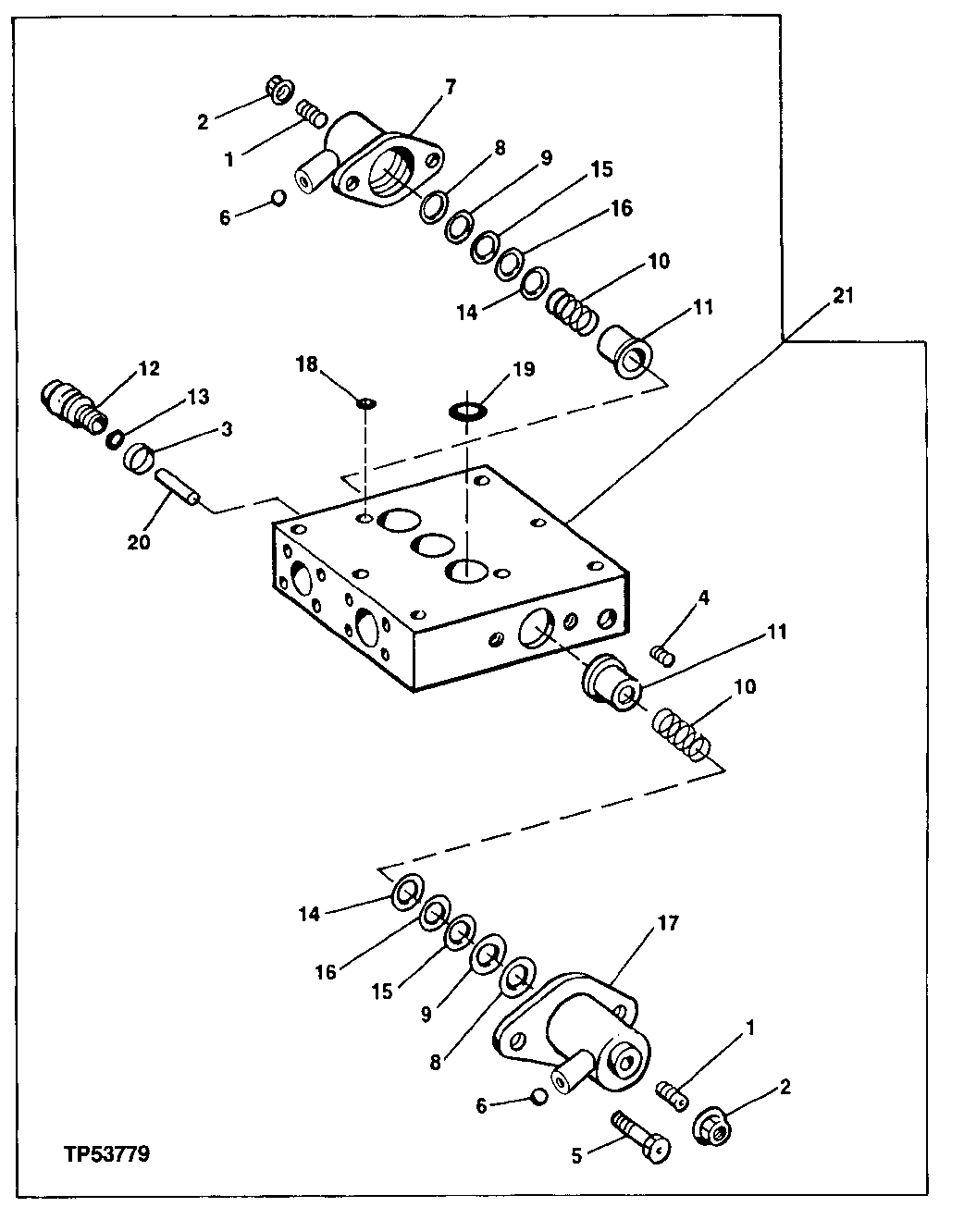

Запчасти John Deere 90ELC 370 - CYLINDER / MOTOR AUXILIARY CONTROL VALVE (556936 - ) 3360 HYDRAULIC SYSTEM

1

T115243

Screw

2шт.

2

T107964

Nut

2шт.

3

R80632

O-Ring

2шт.

4

AT156518

Pressure Relief Valve

2шт.

5

19M7660

Screw

M8 X 20

4шт.

6

AT112756

Check Valve

2шт.

7

T139568

Cushion Cover

1шт.

8

T72221

O-Ring

2шт.

9

24M7199

Shim

(K)

ARшт.

10

T139567

Spring

2шт.

11

T107943

Cap

2шт.

12

AT125518

Pressure Relief Valve

2шт.

13

T74549

O-Ring

2шт.

14

Solid Shim

(K) 1.0 MM

ARшт.

15

Solid Shim

(K) 0.1 MM

ARшт.

16

Solid Shim

(K) 0.3 MM

ARшт.

17

T139568

Cushion Cover

1шт.

18

T107877

O-Ring

2шт.

19

R61871

O-Ring

3шт.

20

19M8211

Screw

M10 X 45 (K1) (K2)

4шт.

21

T115239

Screw

2шт.

22

AT177305

Hyd Actuated Control Valve

NLA, CYLINDER

1шт.

AT177306

Hyd Actuated Control Valve

MOTOR (SAW)

1шт.
