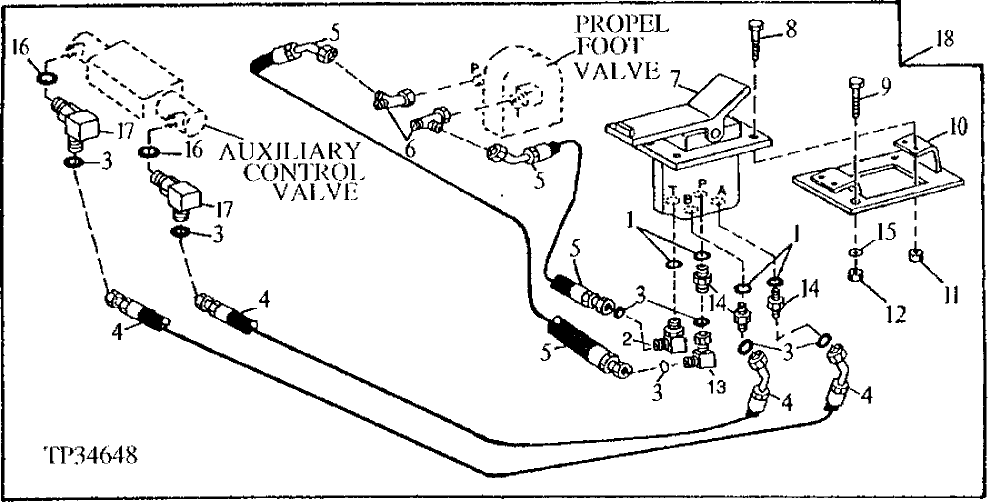

Запчасти John Deere 90ELC 367 - AUXILIARY FOOT VALVE, LINES AND FITTINGS ( - 556935) 3360 HYDRAULIC SYSTEM

1

R26448

O-Ring

(SUB FOR T70177)

4шт.

2

38H1004

Elbow Fitting

1шт.

3

T77613

O-Ring

7шт.

4

AT160348

Hydraulic Hose

(SUB FOR AT152150)

2шт.

5

AT152138

Hydraulic Hose

2шт.

6

AT36921

Tee Fitting

2шт.

7

AT152120

Valve

1шт.

8

19M7866

Screw

M8 X 20

4шт.

9

19M7785

Screw

M10 X 25

2шт.

10

AT115535

Support

1шт.

11

14M7298

Flange Nut

M8

4шт.

12

14M7296

Flange Nut

M10

2шт.

13

38H1094

Elbow Fitting

1шт.

14

38H1160

Adapter Fitting

3шт.

15

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

16

CH11570

O-Ring

2шт.

17

AT137356

Elbow Fitting

2шт.

18

Field Installation Kit

( AT160350 AND AT185482 NO LONGER AVAI LABLE) (SUB AT195684) (AUXILIARY FOOT P EDAL) (SUB FOR AT156888 ( AT195684 NLA) )

1шт.
