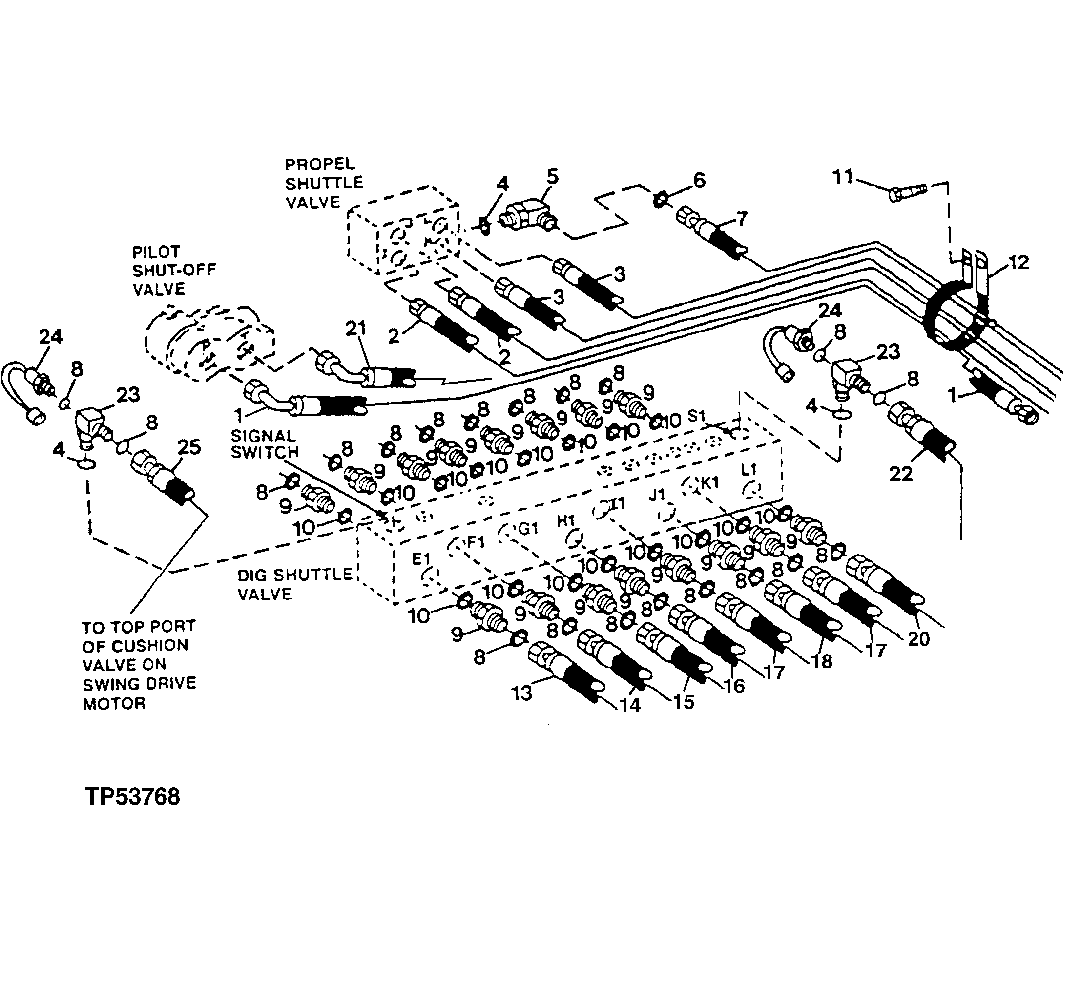

Запчасти John Deere 90ELC 366 - PILOT CONTROL HYDRAULIC LINES (556936 - ) 3360 HYDRAULIC SYSTEM

1

AT178563

Hose

9/16" X 2844 mm (112") X 17.4752"

1шт.

2

AT177773

Hydraulic Hose

9/16" X 1803 mm (71") X 17.4752"

2шт.

3

AT177773

Hydraulic Hose

9/16" X 1803 mm (71") X 17.4752"

2шт.

4

R26287

O-Ring

3шт.

5

AT152142

Adapter Fitting

1шт.

6

T77814

O-Ring

1шт.

7

AT177800

Hydraulic Hose

9/16" X 2057 mm (81") X 9/16"

1шт.

8

T77613

O-Ring

20шт.

9

38H1160

Adapter Fitting

16шт.

10

R26448

O-Ring

16шт.

11

19M7784

Screw

M10 X 20

1шт.

12

N198631

Clamp

1шт.

13

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752" E1

1шт.

14

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752" F1

1шт.

15

AT176878

Hydraulic Hose

17.4752" X 838 mm (33") X 17.4752" G1

1шт.

16

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752" H1

1шт.

17

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752" I1

1шт.

18

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752" J1

1шт.

19

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 1 7.4752" (SUB FOR AT176876)K1

1шт.

20

AT177756

Hydraulic Hose

17.4752" X 1524 mm (60") X 17.4752" L1

1шт.

21

AT178564

Hose

9/16" X 3251 mm (128") X 13/16" TO CHECK VALVE ON LOWEST RESERVOIR PORT

1шт.

22

AT177799

Hydraulic Hose

1шт.

23

AT152197

Fitting

2шт.

24

AT223535

Pressure Switch

(SUB FOR AT152113)

2шт.

25

AT177778

Hydraulic Hose

17.4752" X 1422 mm (56") X 17.4752"

1шт.
