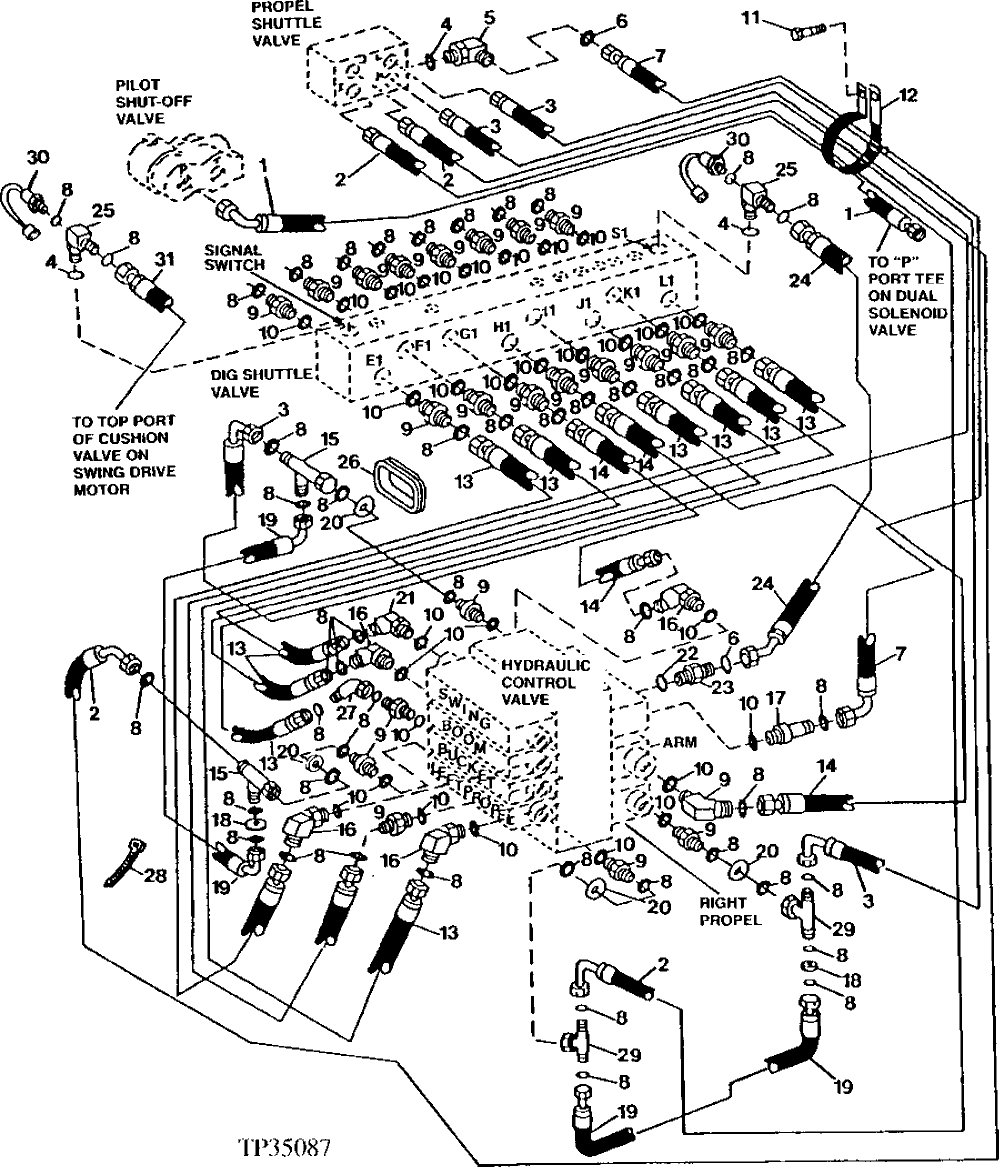

Запчасти John Deere 90ELC 365 - PILOT CONTROL HYDRAULIC LINES (543990 - 556935) 3360 HYDRAULIC SYSTEM

1

AT147357

Hydraulic Hose

9/16" X 3149 mm (124") X 17.4752"

1шт.

2

AT147360

Hydraulic Hose

17.4752" X 2099 mm (82-3/4") X 9/16"

2шт.

3

AT152144

Hydraulic Hose

17.4752" X 2480 mm (97-3/4") X 17.4752"

2шт.

4

R26287

O-Ring

3шт.

5

AT152142

Adapter Fitting

1шт.

6

T77814

O-Ring

2шт.

7

AT147441

Hydraulic Hose

9/16" X 2439 mm (96") X 17.4752"

1шт.

8

T77613

O-Ring

50шт.

T77613

O-Ring

(USE ONLY WITH ANTI-DRIFT APPLICATION)

3шт.

9

38H1160

Adapter Fitting

20шт.

38H1160

Adapter Fitting

23шт.

10

R26448

O-Ring

29шт.

11

19M7784

Screw

M10 X 20

1шт.

12

N198631

Clamp

1шт.

13

AT147362

Hydraulic Hose

17.4752" X 1219 mm (48") X 17.4752"

6шт.

14

AT147363

Hydraulic Hose

17.4752" X 1472 mm (58") X 17.4752"

2шт.

15

38H1038

Tee Fitting

4шт.

16

38H1045

Elbow Fitting

9шт.

38H1045

Elbow Fitting

4шт.

17

38H1212

Adapter Fitting

1шт.

18

T114635

Orifice

2шт.

19

AT167988

Hydraulic Hose

17.4752" X 355 mm (14") X 17.4752" (SUB FOR AT141147, THIS APPLICATION)

2шт.

20

N279033

Orifice

(SUB FOR N203223)

4шт.

21

38H1004

Elbow Fitting

1шт.

22

R28782

O-Ring

1шт.

23

38H1159

Adapter Fitting

1шт.

24

AT147380

Hydraulic Hose

17.4752" X 2400 mm (94-1/2") X 9/16"

1шт.

25

AT152197

Fitting

TEE

1шт.

AT152197

Fitting

TEE

1шт.

26

R20759

Grommet

HOSES THROUGH LOWER RIGH T CORNER OF CENTER BAFFLE

1шт.

27

38H1094

Elbow Fitting

(USE ONLY WITH ANTI-DRIFT APPLICATION)

1шт.

28

R44302

Tie Band

1шт.

29

38H1038

Tee Fitting

2шт.

30

AT223535

Pressure Switch

(SUB FOR AT152113)

2шт.

31

AT167987

Hydraulic Hose

17.4752" X 1803 mm (71") X 17.4752"

1шт.
