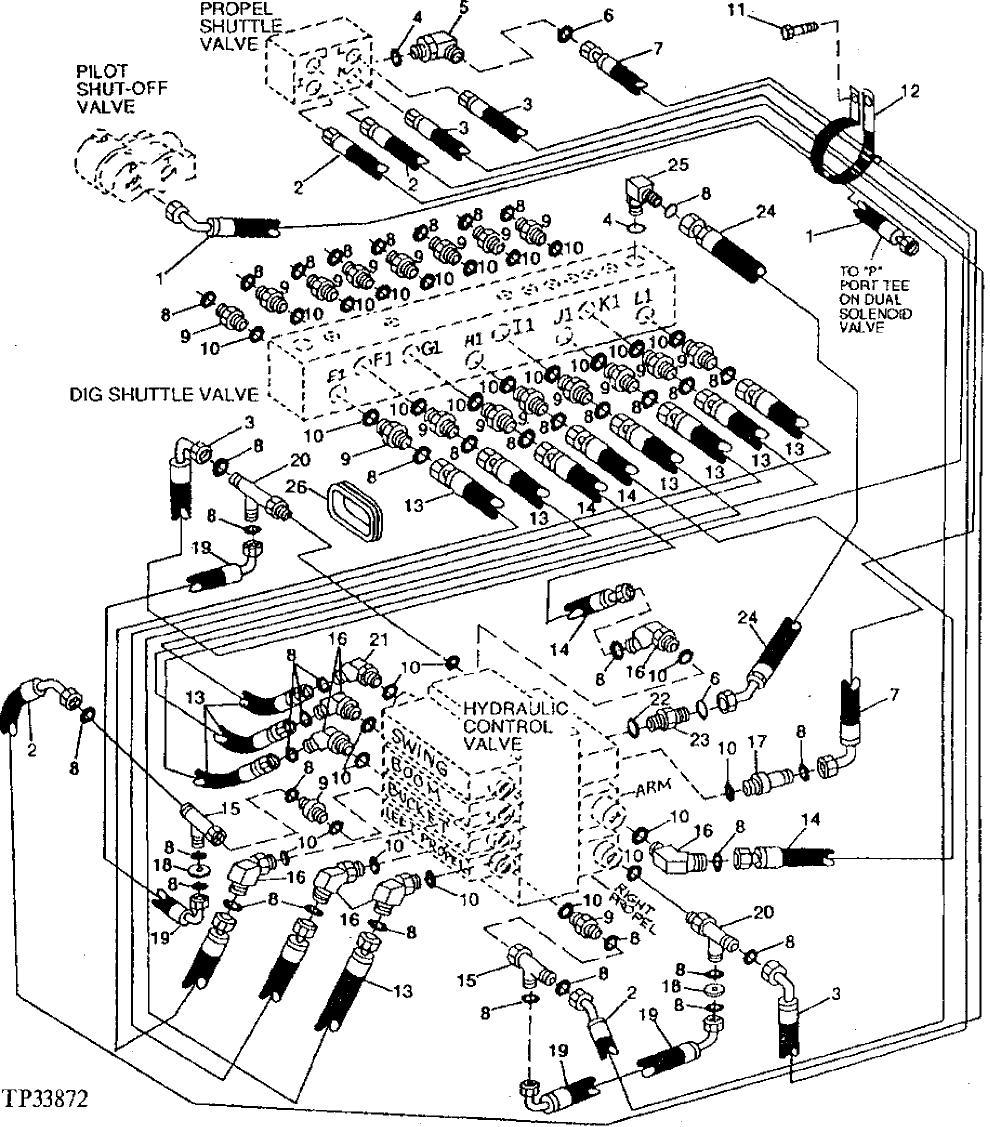

Запчасти John Deere 90ELC 364 - PILOT CONTROL HYDRAULIC LINES ( - 543989) 3360 HYDRAULIC SYSTEM

1

AT147357

Hydraulic Hose

9/16" X 3149 mm (124") X 17.4752"

1шт.

2

AT147360

Hydraulic Hose

17.4752" X 2099 mm (82-3/4") X 9/16"

2шт.

3

AT152144

Hydraulic Hose

17.4752" X 2480 mm (97-3/4") X 17.4752"

2шт.

4

R26287

O-Ring

2шт.

5

AT152142

Adapter Fitting

1шт.

6

T77814

O-Ring

2шт.

7

AT147441

Hydraulic Hose

9/16" X 2439 mm (96") X 17.4752"

1шт.

8

T77613

O-Ring

38шт.

9

38H1160

Adapter Fitting

18шт.

10

R26448

O-Ring

29шт.

11

19M7784

Screw

M10 X 20

1шт.

12

N198631

Clamp

1шт.

13

AT147362

Hydraulic Hose

17.4752" X 1219 mm (48") X 17.4752"

6шт.

14

AT147363

Hydraulic Hose

17.4752" X 1472 mm (58") X 17.4752"

2шт.

15

38H1030

Tee Fitting

2шт.

16

38H1045

Elbow Fitting

9шт.

17

38H1212

Adapter Fitting

1шт.

18

T114635

Orifice

2шт.

19

AT152147

Hydraulic Hose

17.4752" X 635 mm (25") X 17.4752"

2шт.

20

38H1023

Tee Fitting

2шт.

21

38H1004

Elbow Fitting

1шт.

22

R28782

O-Ring

1шт.

23

38H1159

Adapter Fitting

1шт.

24

AT84841

Hydraulic Hose

(SUB FOR AT147380, THIS APPLICATION)

1шт.

25

AT152197

Fitting

1шт.

26

R20759

Grommet

HOSES THROUGH LOWER RIGH T CORNER OF CENTER BAFFLE

1шт.
