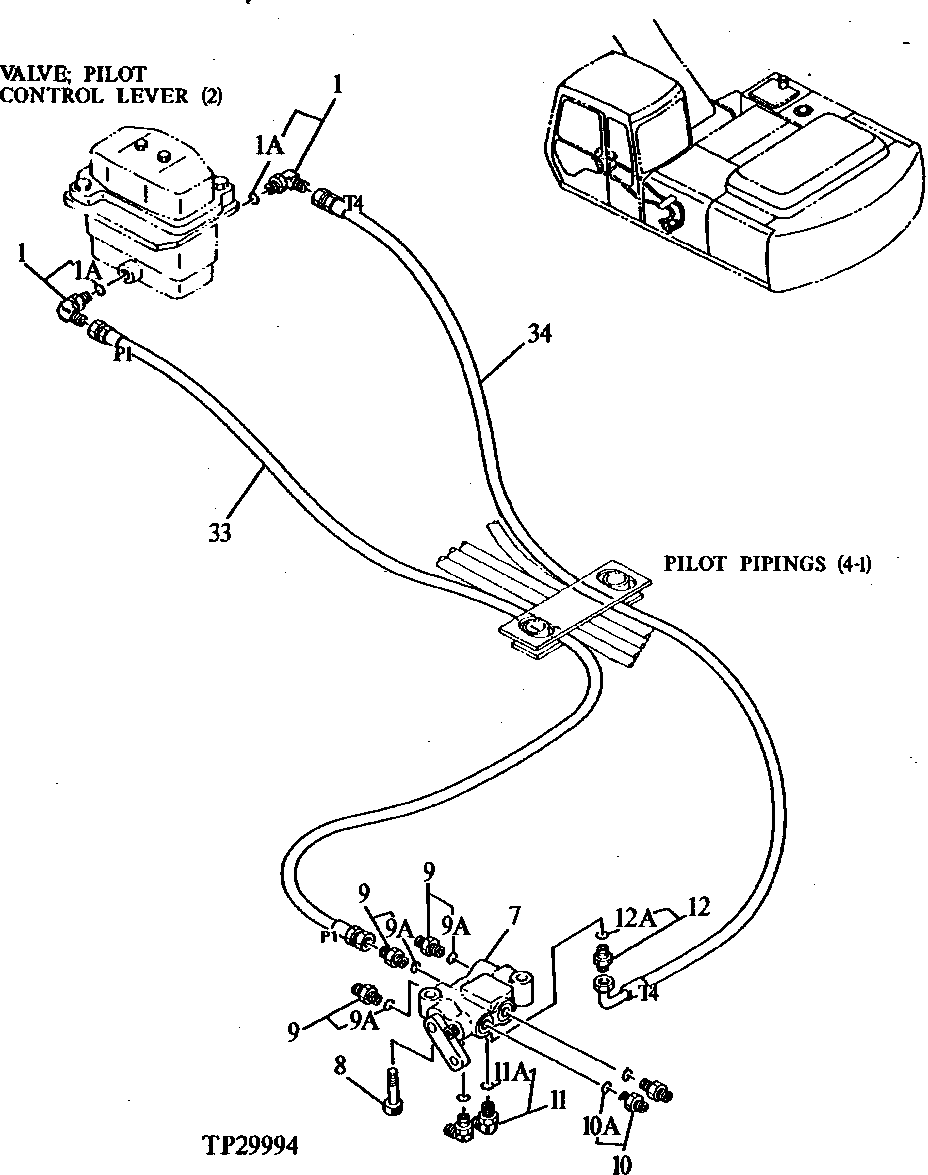

Запчасти John Deere 90ELC 363 - PILOT HYDRAULIC HOSES 3360 HYDRAULIC SYSTEM

1

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

2шт.

1A

M800650

Packing

1шт.

7

4254611

Flow Control Hyd. Valve

(SUB FOR AT154216)

1шт.

8

19M8904

Screw

M10 X 45 (SUB FOR M341045)

2шт.

9

4261938

Fitting

(SUB FOR AT154285)

3шт.

9A

CH11570

O-Ring

1шт.

10

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

10A

CH11570

O-Ring

1шт.

11

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

11A

CH11570

O-Ring

1шт.

12

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

12A

CH11570

O-Ring

1шт.

33

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

34

AT69452

Hydraulic Hose

1шт.
