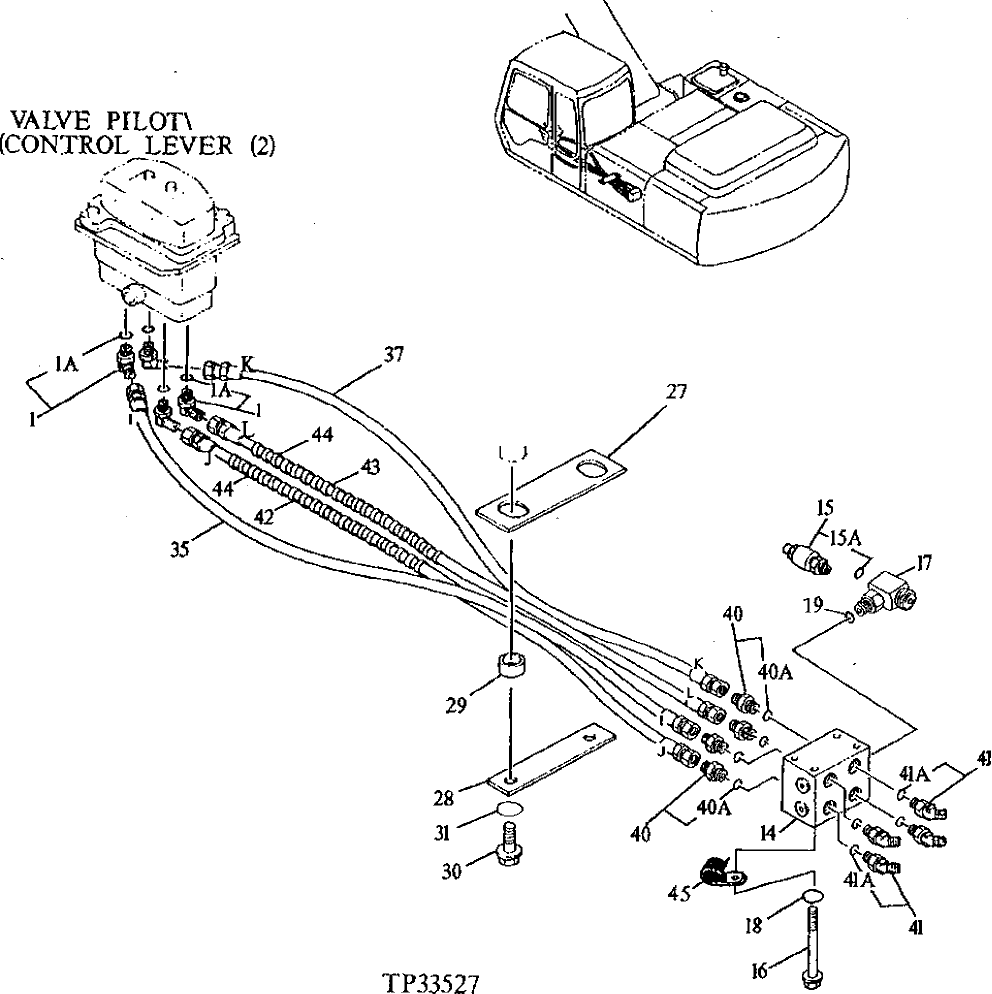

Запчасти John Deere 90ELC 362 - PILOT HYDRAULIC HOSES 3360 HYDRAULIC SYSTEM

1

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR TH101930

4шт.

1A

M800650

Packing

1шт.

14

4254612

Flow Control Hyd. Valve

SUB FOR AT154217

1шт.

15

AT147233

Transducer

1шт.

15A

R26287

O-Ring

1шт.

16

19M8456

Cap Screw

M8 X 100

4шт.

17

AT152142

Adapter Fitting

1шт.

18

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

19

R26287

O-Ring

1шт.

27

4270771

Plate

SUB FOR AT154311

1шт.

28

9736384

Plate

SUB FOR AT154544

1шт.

29

R54204

Half Sleeve

SUB FOR AT154312 OR 4270773

2шт.

30

19M8324

Cap Screw

M10 X 16

2шт.

31

12M7066

Lock Washer

10 mm

2шт.

35

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

37

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

40

4200466

Adapter Fitting

SUB FOR TH108320

4шт.

40A

CH11570

O-Ring

1шт.

41

4190244

Elbow Fitting

SUB FOR TH106152

4шт.

41A

CH11570

O-Ring

1шт.

42

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

43

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

44

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

2шт.

45

T19935

Clamp

2шт.
