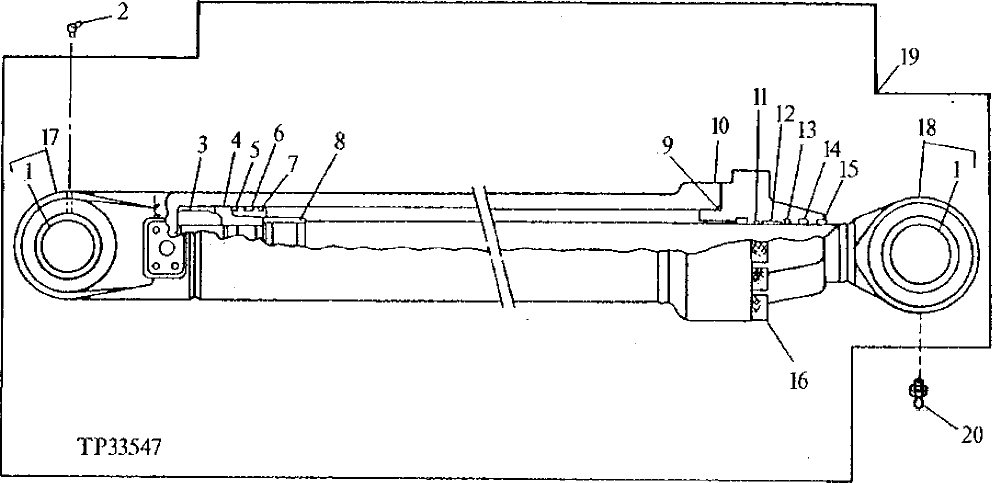

Запчасти John Deere 90ELC 347 - BOOM CYLINDER (RIGHT AND LEFT) 3360 HYDRAULIC SYSTEM

1

H144209

Bushing

(HEAD AND ROD END)

2шт.

TH102446

Seal

(SUB FOR AH140158)

4шт.

2

JD7799

Lubrication Fitting

1шт.

3

H144235

Nut

1шт.

4

H144223

Piston

1шт.

5

AH138083

Seal

(K)

1шт.

6

H144226

Wear Ring

(K)

2шт.

7

H144229

Back-Up Ring

(K)

2шт.

8

H144232

Cushion

1шт.

9

H144919

O-Ring

(K)

1шт.

10

H146298

Hydr. Cylinder Rod Guide

1шт.

11

R81788

Ring

1шт.

12

AT264272

Bushing

(SUB FOR T108019, AT154778, 4272960)

1шт.

13

AH144607

Seal

(K)

1шт.

14

AH140481

Seal

(K)

1шт.

15

H149663

Seal

(K) (SUB FOR H146687)

1шт.

16

19M8629

Screw

M20 X 70

8шт.

17

AH144655

Hydraulic Cylinder Barrel

(RH) (SUB FOR AH140152)

1шт.

AH144654

Hydraulic Cylinder Barrel

(LH) (SUB FOR AH142150)

1шт.

18

AH138071

Hydraulic Cylinder Rod

1шт.

19

AH144674

Hydraulic Cylinder

(RH) (SUB FOR AH140589)

1шт.

Cylinder

(LH) (SUB FOR AH140588 ( AH144671 NLA))

1шт.

20

JD7769

Lubrication Fitting

(WITHOUT CENTRAL LUBE)

1шт.

AH144594

Hydraulic Cylinder Kit

INCLUDES ALL (K) PARTS (CYLINDER SEAL)

1шт.
