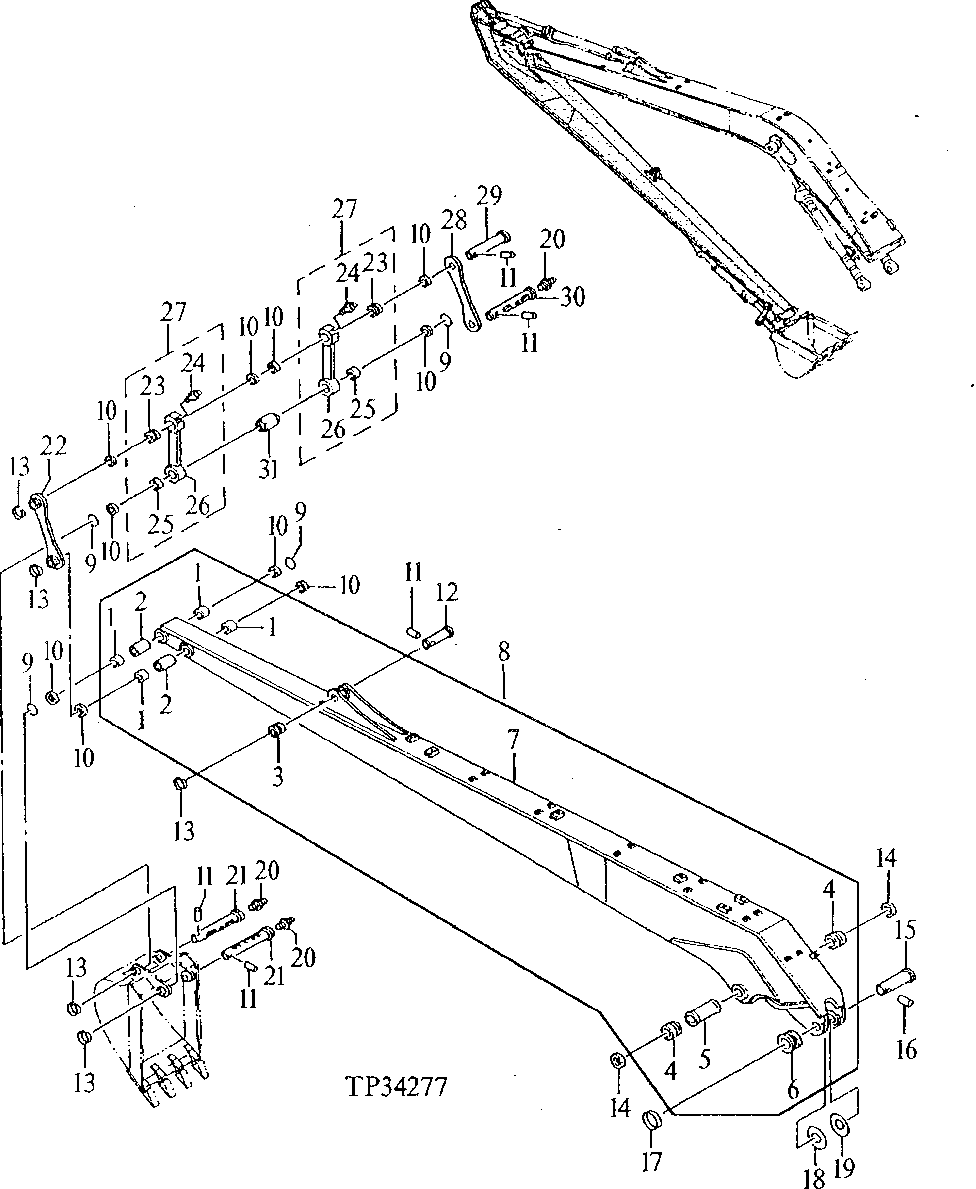

Запчасти John Deere 90ELC 343 - SUPER LONG FRONT ARM AND BUCKET LINKAGE 3340 Frames

1

AT122209

Bushing

4шт.

2

4287248

Bushing

(SUB FOR AT159595)

2шт.

3

TH108649

Bushing

1шт.

4

3030949

Bushing

(SUB FOR T115078)

2шт.

5

4084573

Spacer

(SUB FOR T115079)

1шт.

6

TH104509

Bushing

1шт.

7

Arm

(SUB AT160877)

1шт.

8

Arm

( AT160877 NLA)

1шт.

9

4066923

O-Ring

(SUB FOR AT121233)

4шт.

10

TH100374

Seal

10шт.

11

4065689

Pin Fastener

(SUB FOR TH100625)

5шт.

12

3044367

Pin

(SUB FOR AT134035)

1шт.

13

4065688

Retainer

(SUB FOR TH100624)

5шт.

14

TH102446

Seal

2шт.

15

3058760

Pin Fastener

(SUB FOR AT160879)

1шт.

16

4098713

Pin

(SUB FOR TH103627)

1шт.

17

4098712

Ring

(SUB FOR TH103629)

1шт.

18

TH104296

Washer

2шт.

19

TH104297

Washer

1шт.

20

TH100074

Lubrication Fitting

3шт.

21

AT159603

Pin

2шт.

22

9738223

Link

(SUB FOR AT159598)

1шт.

23

4196557

Bushing

(SUB FOR TH108934)

1шт.

24

TH100074

Lubrication Fitting

1шт.

25

AT122209

Bushing

1шт.

26

Link

( AT159597 NLA)

1шт.

27

8052470

Link

(SUB FOR AT159596)

2шт.

28

4287250

Link

(SUB FOR AT159599)

1шт.

29

AT159601

Pin

1шт.

30

AT318041

Pin Fastener

(SUB FOR 3058763, AT159602)

1шт.

31

4287249

Spacer

(SUB FOR AT159600)

1шт.

AT160855

Sideboom

INCLUDES ALL PARTS (SUPER LONG FRONT BOOM AND ARM, ALSO INCLUDES HYDRAULI CS, CYLINDERS AND CENTRAL LUBRICATION )

1шт.
