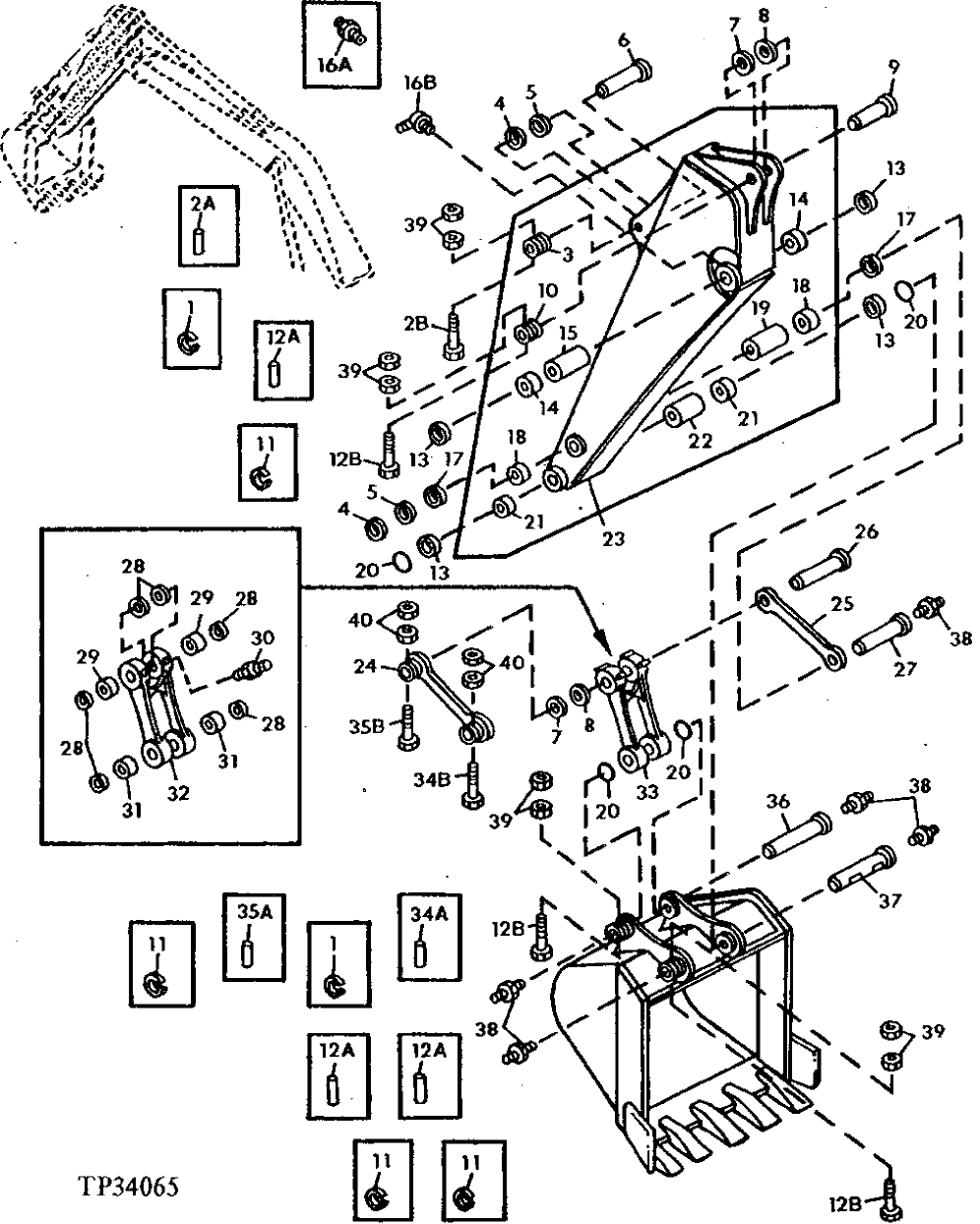

Запчасти John Deere 90ELC 340 - ARM AND BUCKET LINKAGE 3340 Frames

1

4098716

Ring

(SUB FOR TH103631)

1шт.

2A

4098717

Pin

(SUB FOR TH103630)

1шт.

2B

19M7954

Cap Screw

M16 X 150

1шт.

3

T104251

Bushing

1шт.

4

4366692R

Thrust Washer

(SUB FOR TH105593 OR 4366692)

2шт.

5

4367410R

Thrust Washer

(SUB FOR TH105592 OR 4367410)

2шт.

6

T144753

Pin

70.924 X 228 mm (2.792" X 8.976 ") (SUB FOR FFSB108069, T104324)

1шт.

7

TH104296

Washer

2шт.

8

TH104297

Washer

2шт.

9

T144752

Pin

1шт.

10

TH104509

Bushing

1шт.

T146734

Bushing

1шт.

11

4098712

Ring

(SUB FOR TH103629)

4шт.

12A

4098713

Pin

(SUB FOR TH103627)

3шт.

12B

19M7954

Cap Screw

M16 X 150

3шт.

13

TH102446

Seal

4шт.

14

3036976

Bushing

(SUB FOR T104264)

2шт.

15

4123816

Spacer

(SUB FOR T104248)

1шт.

16A

TH100074

Lubrication Fitting

2шт.

16B

JD7799

Lubrication Fitting

2шт.

17

TH104472

Seal

2шт.

18

T104249

Bushing

2шт.

19

T104250

Spacer

1шт.

20

4089028

O-Ring

(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

T379473

V-Ring Seal

V O-Ring

4шт.

21

T139507

Bushing

2шт.

22

4123815

Spacer

(SUB FOR TH104461)

1шт.

23

Arm

9' 6" (2.90M) ( AT188196 NO LO NGER AVAILABLE) (SUB AT188196)

1шт.

DH700010

Arm

9' 6" (2.90M) REPLACEM ENT (SUB FOR AT188196)

1шт.

15H558

Pipe Plug

1/8" (ARM END)

1шт.

AT152188

Arm

7' 3" (2.20M)

1шт.

24

AT147404J

Link

(SUB FOR AT147404)

1шт.

25

T159203J

Link

(SUB FOR T138765 OR T159203)

1шт.

26

T144754

Pin

1шт.

27

T144755

Pin

(SUB FOR T144755, THIS APPL ICATION ) (SUB FOR T104347)

1шт.

28

TH102446

Seal

6шт.

29

T139495

Bushing

2шт.

30

TH100074

Lubrication Fitting

2шт.

31

T139496

Bushing

2шт.

32

Link

1шт.

33

AT147405

Link

1шт.

34A

4106307

Pin

(SUB FOR TH104411)

1шт.

34B

19M7921

Cap Screw

M20 X 150

1шт.

35A

4109669

Pin

(SUB FOR TH104292)

1шт.

35B

19M7921

Cap Screw

M20 X 150

1шт.

36

T144757

Pin

1шт.

37

T144756

Pin

1шт.

38

JD7759

Lubrication Fitting

5шт.

39

14M7276

Nut

M16

8шт.

40

14M7277

Nut

M20

4шт.
