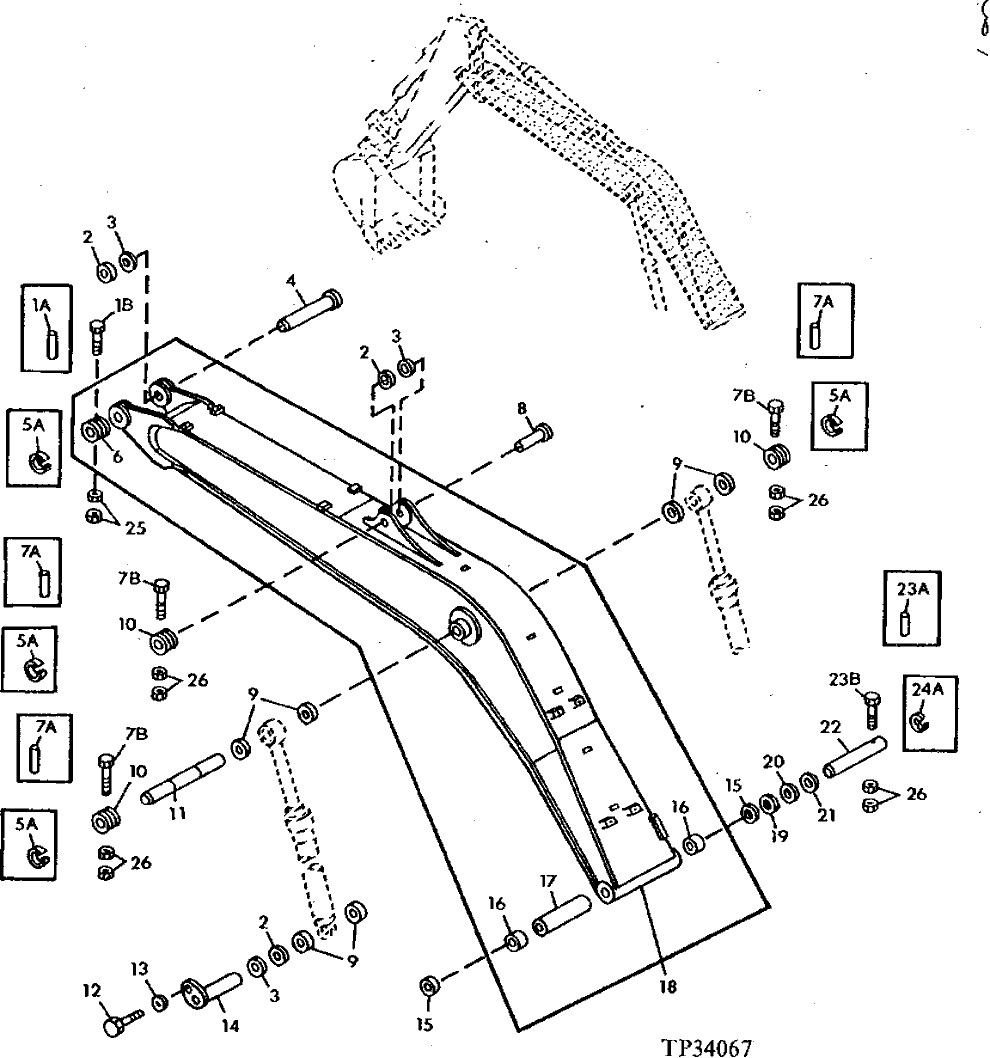

Запчасти John Deere 90ELC 339 - BOOM WITH BOOM, ARM AND CYLINDER MOUNTING PINS 3340 Frames

1A

4109669

Pin

(SUB FOR TH104292)

1шт.

1B

19M7921

Cap Screw

M20 X 150

1шт.

2

TH104297

Washer

4шт.

3

TH104296

Washer

4шт.

4

T144751

Pin

1шт.

5A

4098712

Ring

(SUB FOR TH103629)

4шт.

6

T104269

Bushing

1шт.

7A

4098713

Pin

(SUB FOR TH103627)

3шт.

7B

19M7954

Cap Screw

M16 X 150

3шт.

8

T144752

Pin

1шт.

9

TH102446

Seal

8шт.

10

TH104509

Bushing

3шт.

11

T144749

Pin

1шт.

12

19M8029

Cap Screw

M16 X 30

2шт.

13

R20135

Washer

2шт.

14

AT169526

Pin

(SUB FOR AT152179)

2шт.

15

TH102445

Seal

2шт.

16

T153069

Bushing

(SUB FOR T139505)

2шт.

17

T139506

Spacer

1шт.

18

D91BB010

Excavator Boom

(SUB FOR AT166461, AT147395, AT191651)

1шт.

T162396

Lubrication Fitting

(SUB FOR JD7798)(BOOM BASE - L UBE HOLE) (SUB FOR 15H588 THIS APPLICATION) (NOT ILLUSTRATED)

1шт.

19

T104332

Washer

(3.2 MM)

1шт.

20

TH106308

Washer

(2.3 MM)

1шт.

21

TH106307

Washer

(1.2 MM)

2шт.

22

T144747

Pin

1шт.

23A

4140825

Pin Fastener

(SUB FOR T104334)

1шт.

23B

19M7954

Cap Screw

M16 X 150

1шт.

24

4140823

Ring

(SUB FOR T104335)

1шт.

25

14M7277

Nut

M20

1шт.

26

14M7276

Nut

M16

8шт.
