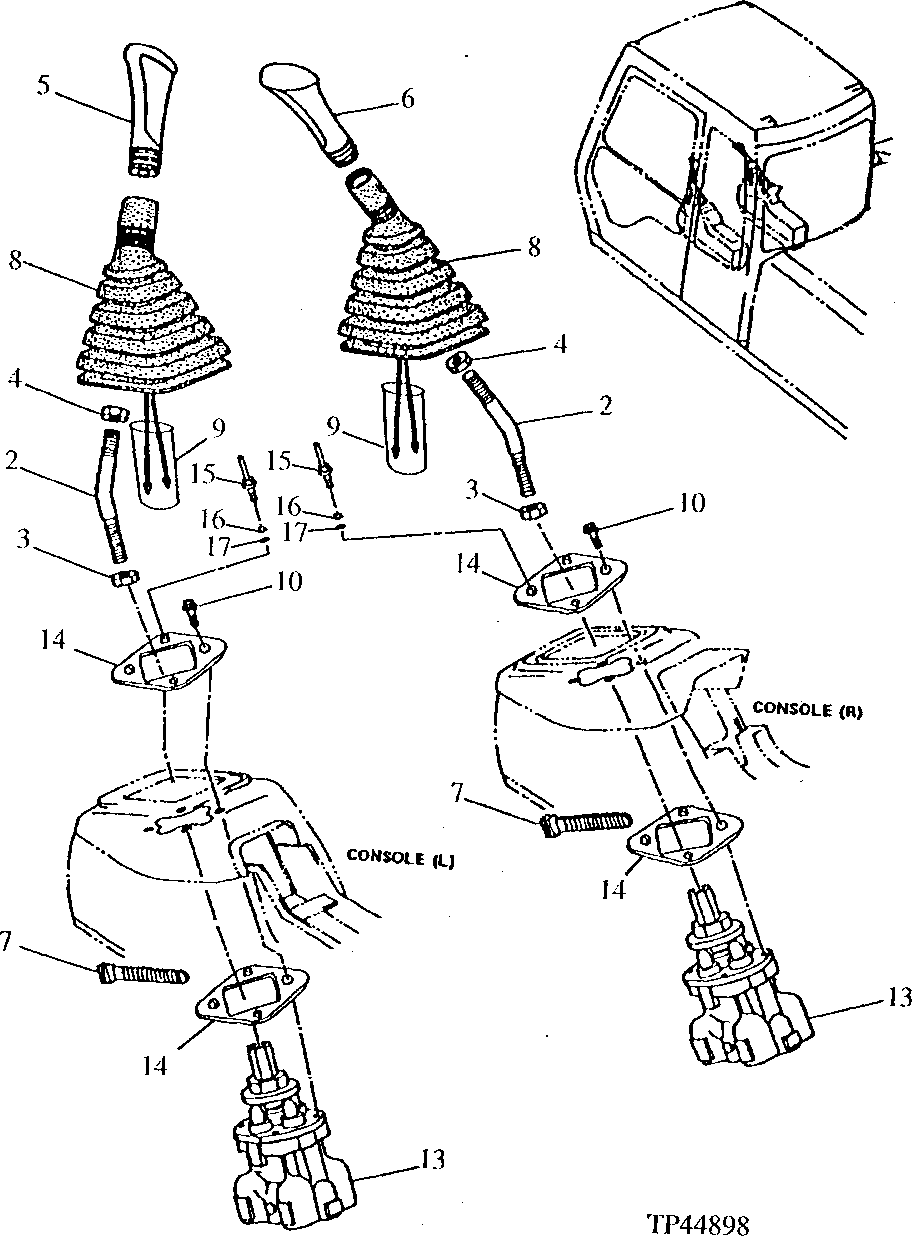

Запчасти John Deere 90ELC 332 - CONTROL LEVERS 3315 Controls Linkage

2

4284522

Lever

(SUB FOR AT154379)

2шт.

4334707

Lever

(SUB FOR AT202326)(USE IF AVAILABLE)

2шт.

4334707

Lever

(SUB FOR AT202326 ) (SUB FOR AT177386)

2шт.

3

14M7141

Nut

M14

2шт.

4

14M7275

Nut

M12

2шт.

5

Grip

( AT154085 NO LONGER AVAILABLE) WITH HORN SWITCH (SUB AT167505, ALONG WITH 4342802, AND 34M708 6

1шт.

Grip

(WITH HORN SWITCH) ( AT163880 NO LONGER AVAILABLE) (SUB AT167505, ALONG WITH 4342802, AND 34M7086

1шт.

2033123

Grip

(SUB FOR AT167505)(WITH HORN SWITCH)

1шт.

6

Grip

( 2036680 NO LONGER AVAILABLE) WI TH POWER-LIFT SWITCH (SUB 2032041, ALONG WITH 4342802, AND 34M7086

1шт.

2036680

Grip

(WITH POWER-LIFT SWITCH) (USE IF AVAILABL E) (SUB 2032041 WITH 4342802 AND 34M7086)

1шт.

2032041

Grip

(SUB FOR AT167507)(WITH POWER-LIFT SWITCH)

1шт.

7

H77698

Tie Band

(SUB FOR M88199)(USE AS REQUIRED)

2шт.

8

2038578

Boot

(SUB FOR AT154080 ) (SUB FOR 2030275)

2шт.

9

4300772

Tube

(SUB FOR AT200522)(USE WITH A T154085 OR 2032586 GRIP ONLY)

2шт.

Tube

(INCLUDED IN AT163880 AND 2036680 GRIP ASSEMBLIES)

2шт.

10

19M7881

Screw

M8 X 20

6шт.

19M7407

Cap Screw

M8 X 25

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.

13

AT154525

Hyd Actuated Control Valve

NLA, (ORDER AT189841)

2шт.

AT189841

Hyd/Pilot Cntl Valve Reman

(REMAN FOR AT154525) (U SE AT154525 IF AVAILABLE)

2шт.

14

4317301

Spacer

(SUB FOR AT165109)(CAB SERIAL NUMBER)

4шт.

15

19M7407

Cap Screw

M8 X 25

2шт.

4342802

Screw

(SUB FOR 4339621)(ALONG WITH 34M7086)

2шт.

34M7086

Spring Pin

3 X 32 mm (SUB FOR 43396 21, ALONG WITH 4342802)

2шт.

4342802

Screw

(SUB FOR 4339621, ALONG WITH 34M7086)

2шт.

16

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.
