Запчасти John Deere 90ELC 330 - General Purpose Bucket Tooth Assembly (24, 30, 36, 42, Or 48 Inch Bucket) 3302 Bucket With Teeth

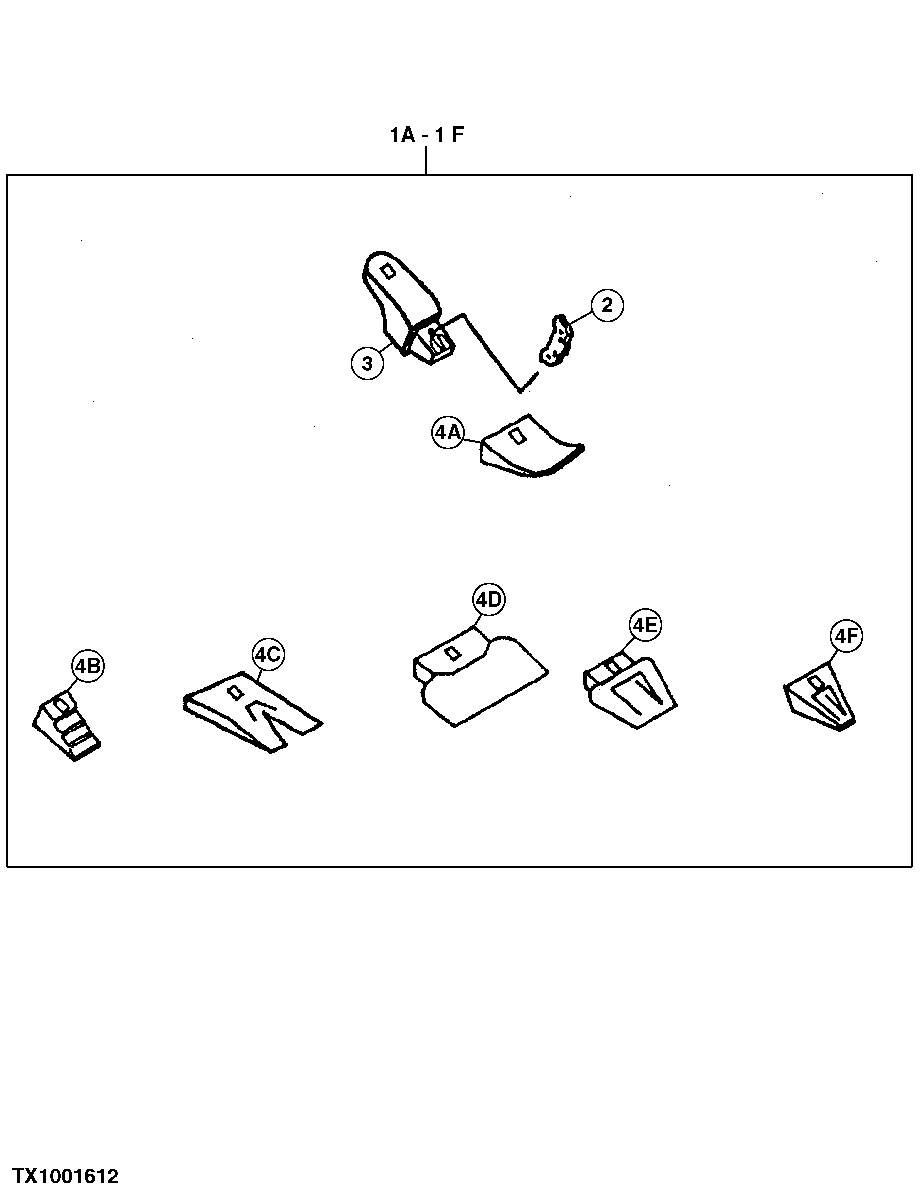

Схема запчастей John Deere 90ELC - 330 - General Purpose Bucket Tooth Assembly (24, 30, 36, 42, Or 48 Inch Bucket) 3302 Bucket With Teeth

Артикул

Название

Примечание

Количество

4A

TF310

Tooth

(ALSO ORDER TP160L)(FANGGS)

1шт.

TF330

Tooth

(FANGGS)

1шт.

TF290

Tooth

(FANGGS)

1шт.

4B

TX310

Tooth

(ALSO ORDER TP160L)(STANDARD)

1шт.

TX330

Tooth

(STANDARD)

1шт.

TX290

Tooth

(STANDARD)

1шт.

4C

TX310WT

Tooth

(ALSO ORDER TP160L)(TWIN TIGER)

1шт.

TX330WT

Tooth

(TWIN TIGER)

1шт.

TX290WT

Tooth

(TWIN TIGER)

1шт.

4D

TX310F

Tooth

(ALSO ORDER TP160L)

1шт.

4E

TX310AP

Tooth

(ALSO ORDER TP160L)

1шт.

4F

TT310

Tooth

(ALSO ORDER TP160L)(TIGER)

1шт.

TT330

Tooth

(TIGER)

1шт.

TT290

Tooth

(TIGER)

1шт.

4G

EX27SYL

Tooth

(ESCO STANDARD) (NOT ILLUSTRATED O N THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4H

EX27TVIP

Tooth

(ESCO TWIN TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4I

Tooth

(ESCO FLARE) (NOT ILLUSTRATED ON THIS P AGE - SEE ESCO TOOTH PAGE), EX27S6F NLA

1шт.

4J

EX27VIP

Tooth

(ESCO TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4K

TF1U3352D

Tooth

(CATERPILLAR REPLACEMENT FANGGS) (NOT ILLUSTRATED)

1шт.

4L

T1U3352

Tooth

(CATERPILLAR REPLACEMENT S TANDARD) (NOT ILLUSTRATED)

1шт.

4M

TX1U3352WT

Tooth

(CATERPILLAR REPLACEMENT TW IN TIGER) (NOT ILLUSTRATED)

1шт.

4N

TT1U3352

Tooth

(CATERPILLAR REPLACEMENT TIGER) (NOT ILLUSTRATED)

1шт.

5

T3G9549

Retainer

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

6

EX27VPL

Plug

(NOT ILLUSTRATED ON THIS P AGE - SEE ESCO TOOTH PAGE)

1шт.

Выбрано товаров: 24
