Запчасти John Deere 90ELC 327 - Severe Duty Cast Lip Bucket Tooth Assembly (24, 30 OR 36 Inch Bucket) 3302 Bucket With Teeth

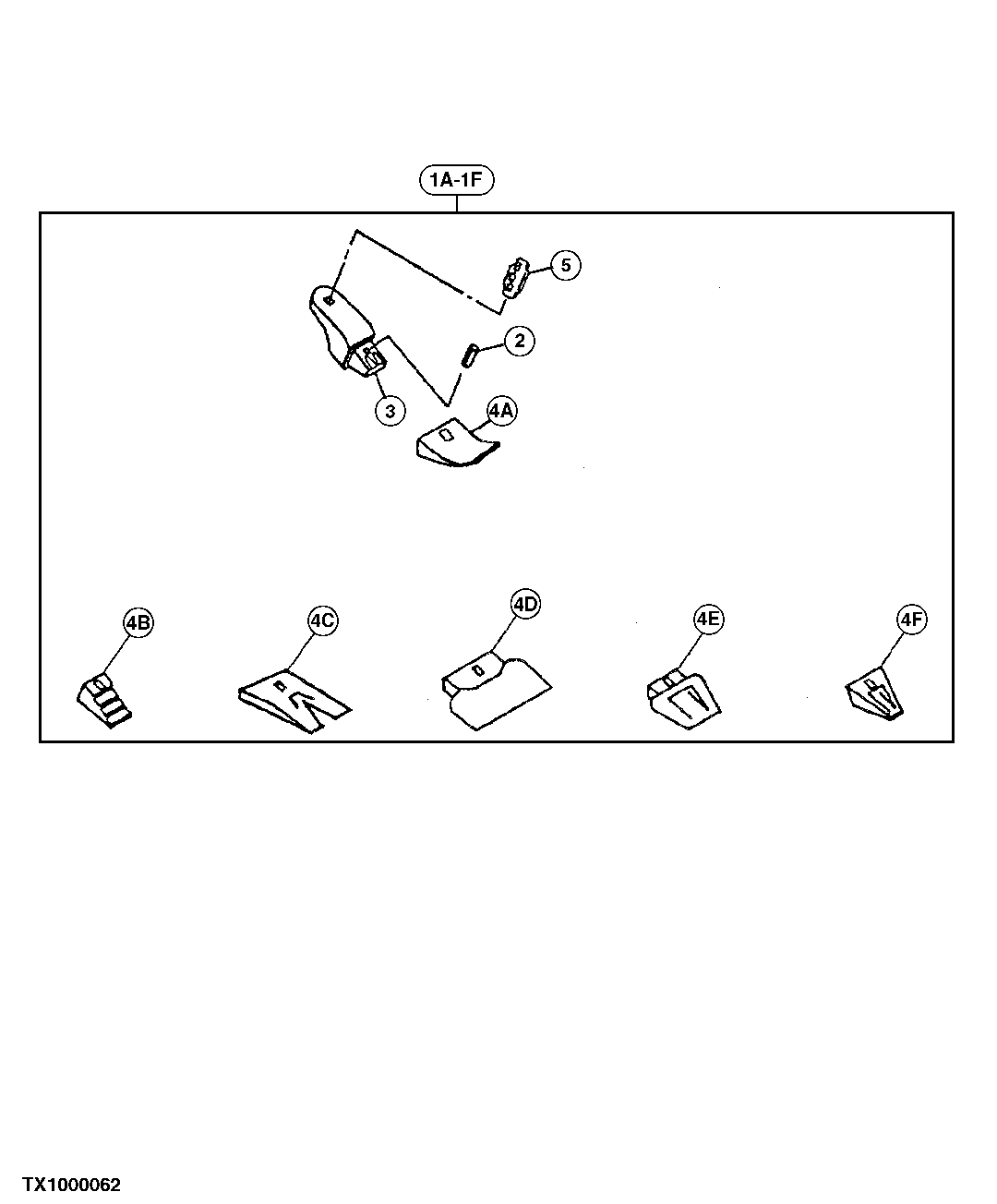

Схема запчастей John Deere 90ELC - 327 - Severe Duty Cast Lip Bucket Tooth Assembly (24, 30 OR 36 Inch Bucket) 3302 Bucket With Teeth

Артикул

Название

Примечание

Количество

1A

Tooth

(SUB FOR AT163819, THIS APPLIC ATION)(FANGGS) ( AT163825 NLA)

1шт.

1B

Tooth

(SUB FOR AT163820, THIS APPLICA TION)(STANDARD) ( AT163826 NLA)

1шт.

1C

Tooth

(SUB FOR AT163821, THIS APPLICAT ION)(TWIN TIGER) ( AT163832 NLA)

1шт.

1D

Tooth

(FLARE) (NOT AVAILABLE FOR THIS BUCKET)

1шт.

1E

Tooth

(SUB FOR AT163822, THIS APPLICATIO N)(ABRASION PANEL) ( AT163828 NLA)

1шт.

1F

Tooth

(SUB FOR AT163824, THIS APPLI CATION)(TIGER) ( AT163827 NLA)

1шт.

2

TP160L

Spring Pin

1шт.

3

T136X310

Bucket Tooth Adapter

1шт.

4A

TF310

Tooth

1шт.

4B

TX310

Tooth

1шт.

4C

TX310WT

Tooth

1шт.

4D

Tooth

(NOT AVAILABLE FOR THIS BUCKET)

1шт.

4E

TX310AP

Tooth

1шт.

4F

TT310

Tooth

1шт.

5

TP136

Shaft Key

1шт.

Выбрано товаров: 15
