Запчасти John Deere 90ELC 321 - General Purpose High Capacity Bucket Tooth Assembly (30, 36, 42 or 48 Inch Bucket) 3302 Bucket With Teeth

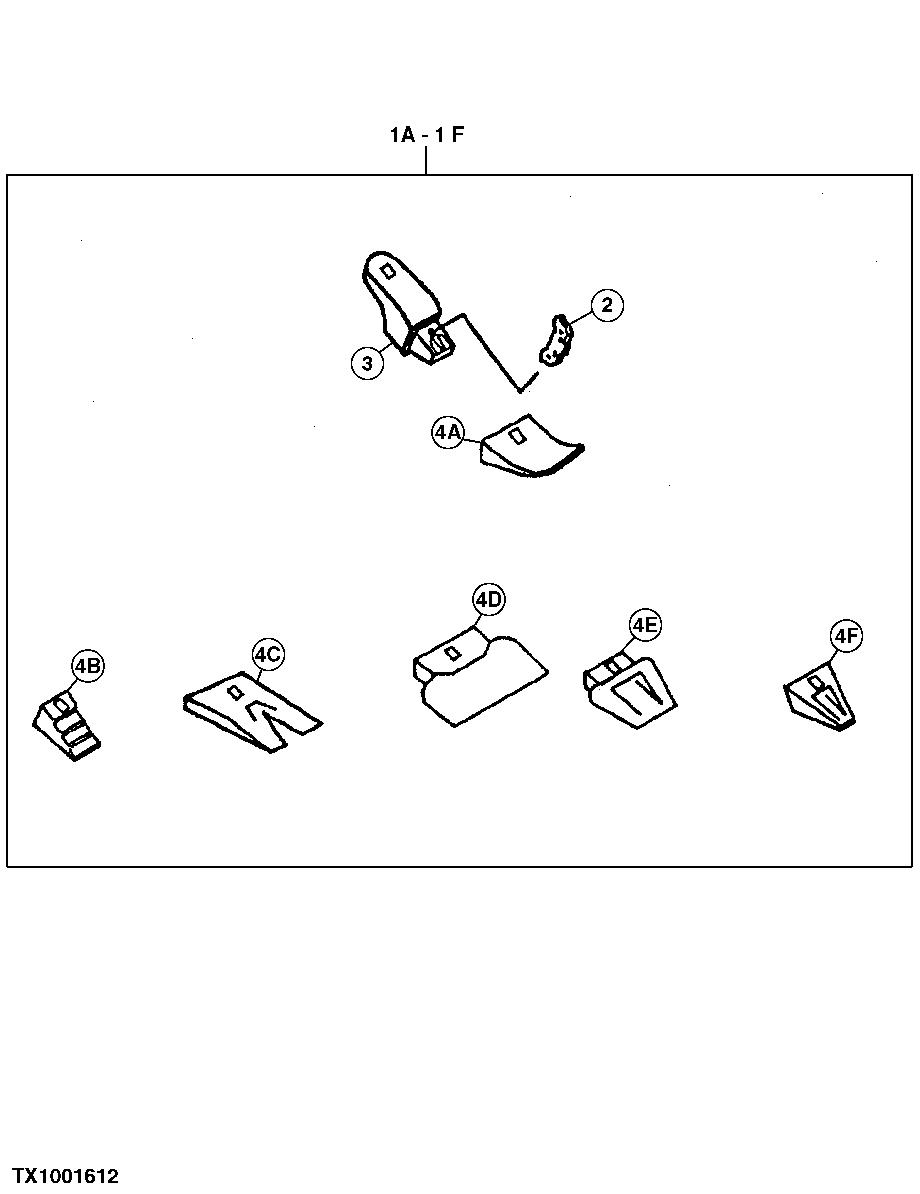

Схема запчастей John Deere 90ELC - 321 - General Purpose High Capacity Bucket Tooth Assembly (30, 36, 42 or 48 Inch Bucket) 3302 Bucket With Teeth

Артикул

Название

Примечание

Количество

1A

Tooth

( AT163538 NLA) (FANG GS 310 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178530 NLA) (FANG GS 330 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178531 NLA) (FANG GS 290 TOOTH ASSEMBLY)

1шт.

1B

Tooth

( AT163539 NLA) (STAND ARD 310 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178532 NLA) (STAND ARD 330 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178533 NLA) (STAND ARD 290 TOOTH ASSEMBLY)

1шт.

1C

Tooth

( AT163543 NLA) (TWIN T IGER 310 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178536 NLA) (TWIN T IGER 330 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178537 NLA) (TWIN T IGER 290 TOOTH ASSEMBLY)

1шт.

1D

Tooth

( AT163542 NLA) (FLARE)

1шт.

1E

Tooth

( AT163541 NLA) (ABRASION PANEL)

1шт.

1F

Tooth

( AT163540 NLA) (TIGER 310 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178534 NLA) (TIGER 330 TOOTH ASSEMBLY)

1шт.

Tooth

( AT178535 NLA) (TIGER 290 TOOTH ASSEMBLY)

1шт.

1G

Tooth

( AT163544 NLA) (ESCO STANDARD TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1H

Tooth

( AT163547 NLA) (ESCO TWIN TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1I

Tooth

( AT163546 NLA) (ESCO FLARE TO OTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1J

Tooth

( AT163545 NLA) (ESCO TIGER TO OTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1K

Tooth

( AT167192 NLA) (CATERPILLAR REPLACEMENT FANGGS TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1L

Tooth

( AT167193 NLA) (CATERPILLAR REPLACEMENT STANDARD TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1M

Tooth

( AT167195 NLA) (CATERPILLAR REPLACEMENT T WIN TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1N

Tooth

( AT167194 NLA) (CATERPILLAR REPLACEMEN T TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

2

TP160L

Spring Pin

(USE WITH 310 TOOTH ASSEMBLIES)

1шт.

TK330

Pin

(USE WITH 330 TOOTH ASSEMBLIES)

1шт.

TK290

Pin

(USE WITH 290 TOOTH ASSEMBLIES)

1шт.

EX27VPN

Pin

(ESCO) (NOT ILLUSTRATED ON TH IS PAGE - SEE ESCO TOOTH PAGE)

1шт.

T9J2358

Pin Fastener

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

3

T153X310

Bucket Tooth Adapter

(USE WITH 310 TOOTH ASSEMBLIES)

1шт.

T158X330

Bucket Tooth Adapter

(USE WITH 330 TOOTH ASSEMBLIES)

1шт.

T158X290

Bucket Tooth Adapter

(USE WITH 290 TOOTH ASSEMBLIES)

1шт.

Bucket Tooth Adapter

EX5850-27V NLA (ESCO) (NOT ILLUSTRAT ED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

T3G8354

Bucket Tooth Adapter

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 32
