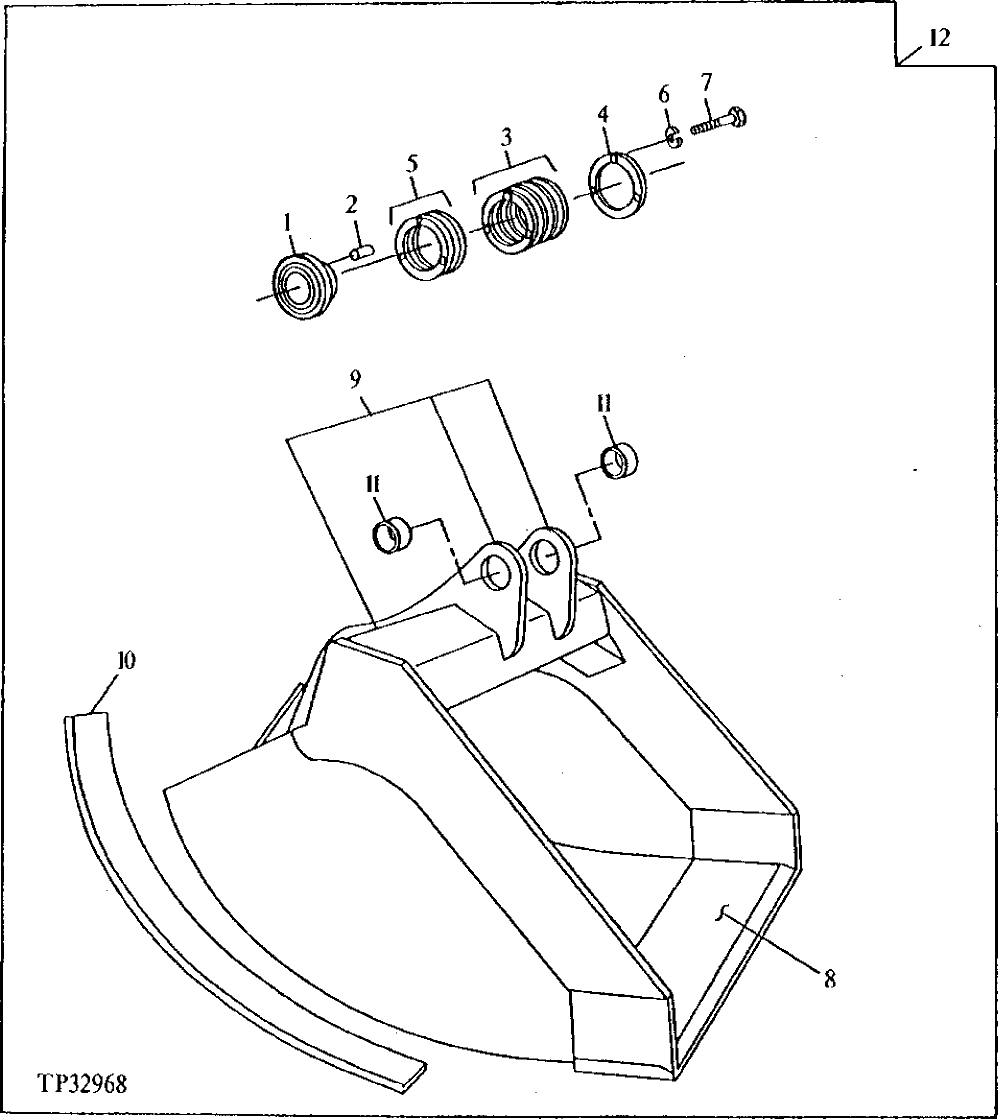

Запчасти John Deere 90ELC 316 - Ditching Bucket 3302 Bucket With Teeth

1

Self-Aligning Bushing

(1" HEAD THICKNESS) ( AT131083 NLA)

1шт.

2

R48685

Dowel Pin

1шт.

3

TH104512

Washer

9шт.

4

TH104514

Spacer

1шт.

5

TH104513

Shim

1шт.

6

12H294

Lock Washer

5/8"

3шт.

7

19H2706

Cap Screw

5/8" X 2"

3шт.

8

AT131089

Dura-Max Cutting Edge

(USE WITH AT161005 BUCKET)

1шт.

AT131088

Dura-Max Cutting Edge

(USE WITH AT160685 BUCKET)

1шт.

9

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10

300204

Bar

(A) (WEAR STRIP)

5шт.

11

TH104509

Bushing

(USE WITH AT161005 BUCKET)

2шт.

TH108649

Bushing

(USE WITH AT160685 BUCKET)

2шт.

12

Excavator Bucket

(AT131117 NLA) WHOLEGOODS (72 INCH - 1.06 CUBIC YARD)

1шт.

Excavator Bucket

(AT161005 NLA) WHOLEGOODS 60" W IDE (.90 CU. YD.) (SUB AT332702)

1шт.

Excavator Bucket

(SUB AT332703)(AT199362 NLA) WHOL EGOODS (60 INCH - 1.13 CUBIC YARD)

1шт.

Excavator Bucket

(AT317398 NLA) WHOLEGOODS (72 INCH - 1.34 CUBIC YARD)

1шт.
