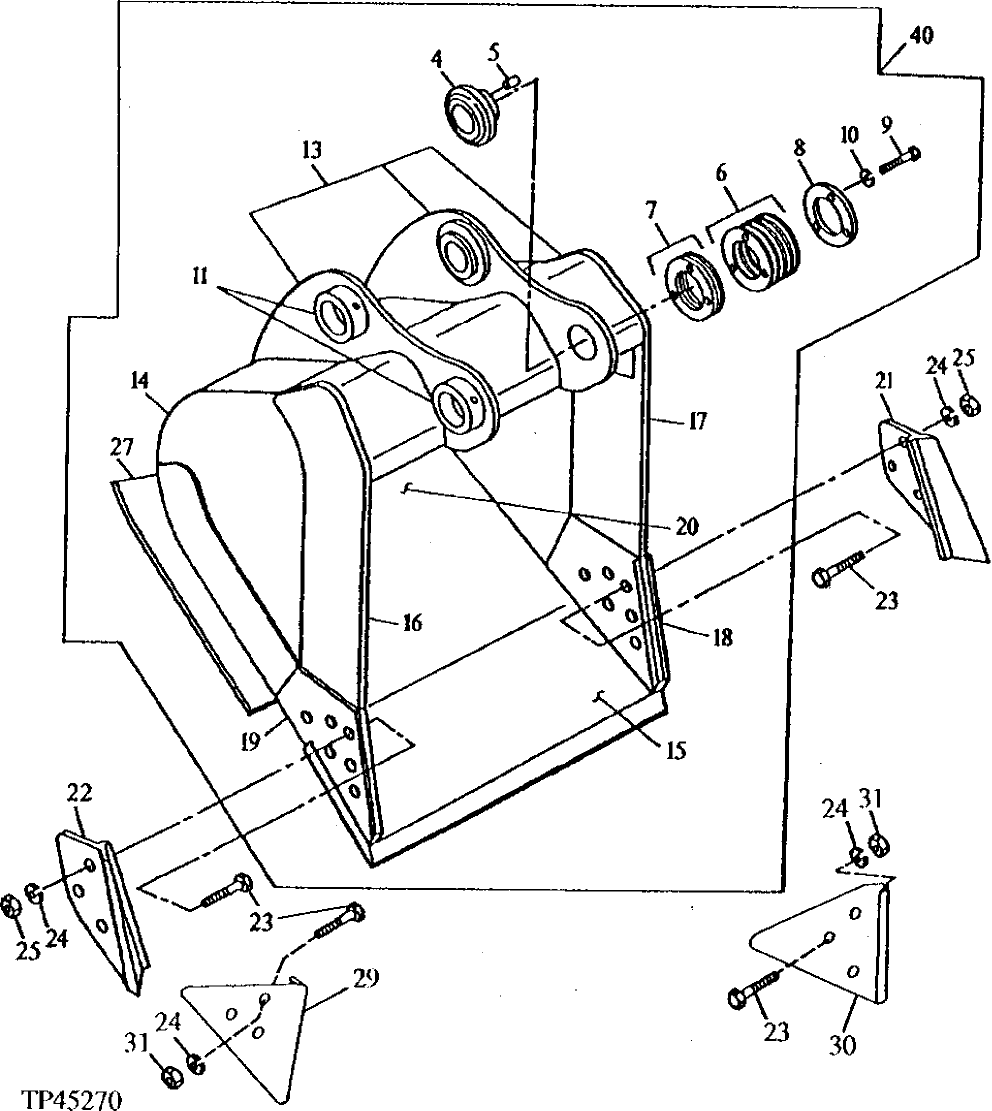

Запчасти John Deere 90ELC 313 - Severe Duty Cast Lip Bucket (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth
№
Артикул
Название
Примечание
Количество
4
Self-Aligning Bushing
(1 INCH HEAD THICKNESS) ( AT131083 NLA)
1шт.
5
R48685
Dowel Pin
1шт.
6
TH104512
Washer
9шт.
7
TH104513
Shim
1шт.
8
TH104514
Spacer
1шт.
9
19H2706
Cap Screw
5/8" X 2"
3шт.
10
12H294
Lock Washer
5/8"
3шт.
11
TH104509
Bushing
(LOCKING COLLAR)
2шт.
13
C607480
Pivot
(F) (BUCKET EAR BLANK ASSEMBLY)
1шт.
14
300952
Plate
(F) (RIGHT AND LEFT SIDE)
2шт.
15
C252561
Cutting Edge
(F) (USE WITH 24 INCH BUCKET) ( AT131118 NO LONGER AVAILABLE)
1шт.
C252562
Cutting Edge
(F) (USE WITH 30 INCH BUCKET) ( AT131119 NO LONGER AVAILABLE)
1шт.
C252563
Cutting Edge
(F) (USE WITH 36 INCH BUCKET) ( AT131092 NO LONGER AVAILABLE)
1шт.
AT131097
Dura-Max Cutting Edge
USE WITH 30 AND 36 INCH BUCKETS
1шт.
16
300159
Vertical Cutter
(F) (UPPER RIGHT SIDE)
1шт.
17
300160
Vertical Cutter
(F) (UPPER LEFT SIDE)
1шт.
18
300958
Vertical Cutter
(F) (LEFT INSERT)
1шт.
19
300957
Vertical Cutter
(F) (RIGHT INSERT)
1шт.
20
600515
Moldboard
(F) (24 INCH)
1шт.
600708
Moldboard
(F) (30 INCH)
1шт.
600517
Moldboard
(F) (36 INCH)
1шт.
21
Cutting Edge
(K) (SUB AT131085)
1шт.
22
Cutting Edge
(K) (SUB AT131085)
1шт.
23
09H1771
Bolt
(K) 7/8" X 3" (K2)
6шт.
24
12H245
Lock Washer
(K) 7/8" (K2)
6шт.
25
14H1077
Nut
(K) 7/8"
6шт.
27
607392
Bar
(F) (USE WITH 24 INCH BUCKET)
1шт.
607393
Bar
(F) (USE WITH 30 INCH BUCKET)
1шт.
607394
Bar
(F) (USE WITH 36 INCH BUCKET)
1шт.
29
Shroud
(WEAR SHROUD) (SUB AT167876 (K2))
1шт.
30
Shroud
(WEAR SHROUD) (SUB AT167876 (K2))
1шт.
31
14H1044
Nut
7/8" (K2)
1шт.
40
Excavator Bucket
( AT171737, AT163621 NLA) (24 I NCH - .59 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )
1шт.
Excavator Bucket
( AT171739, AT163622 NLA) (30 I NCH - .77 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )
1шт.
Excavator Bucket
( AT171741, AT163623 NLA) (36 I NCH - .95 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )
1шт.
AT131085
End Bit
INCLUDES ALL (K) PARTS
1шт.
AT167876
Kit
INCLUDES ALL (K) PARTS
1шт.
Выбрано товаров: 37
