Запчасти John Deere 90ELC 312 - Heavy Duty High Capacity Bucket 3302 Bucket With Teeth

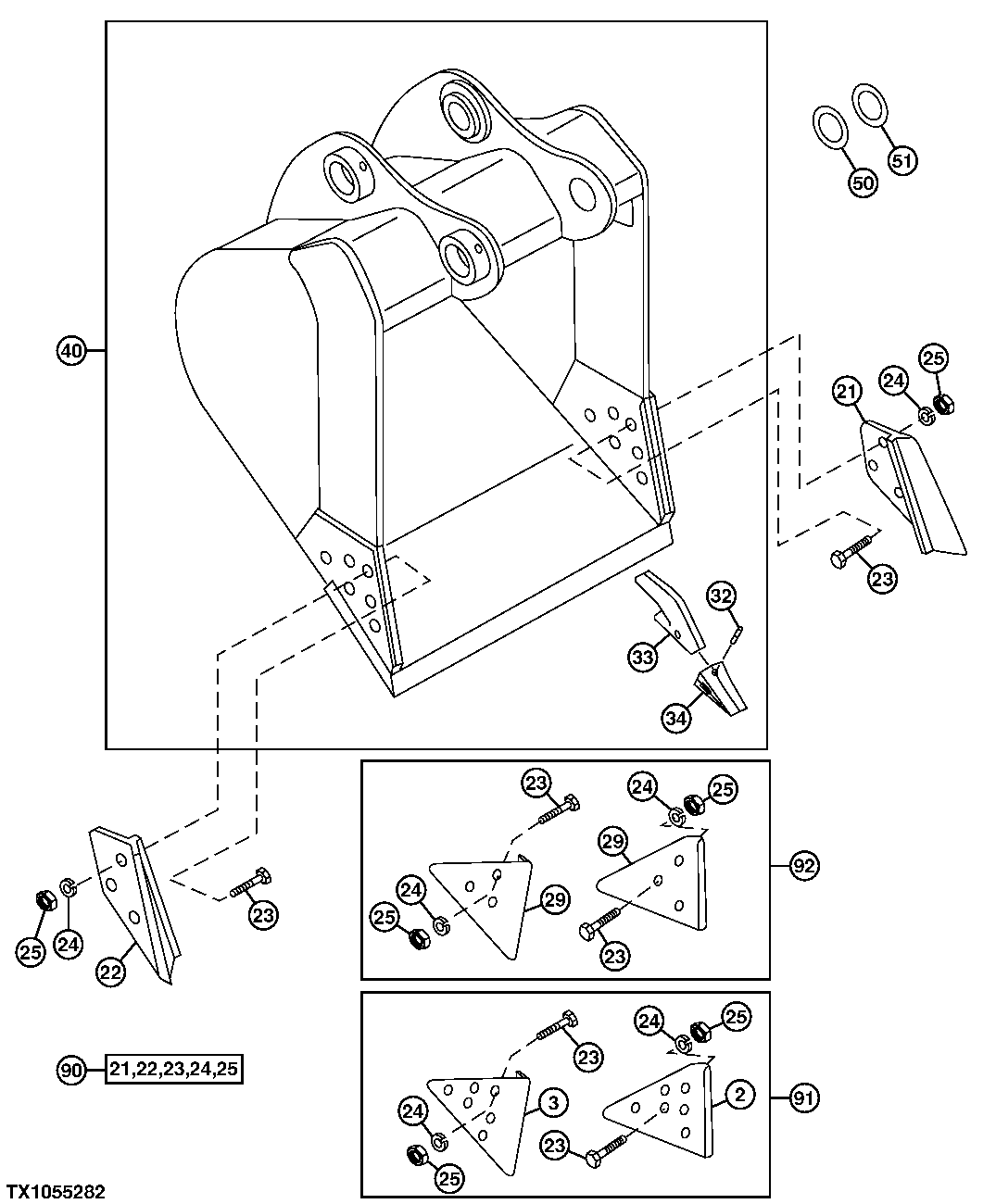

Схема запчастей John Deere 90ELC - 312 - Heavy Duty High Capacity Bucket 3302 Bucket With Teeth

Артикул

Название

Примечание

Количество

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748L3

End Bit

1шт.

22

CE17748R3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

ARшт.

24

12H245

Lock Washer

7/8"

ARшт.

25

14H1077

Nut

7/8"

ARшт.

29

TPDE31329

Shroud

(WEAR)

2шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

AT339138

Excavator Bucket

(WHOLEGOODS) (24 INCH - .56 CUBIC YARD) (4 TEETH) (SUB FOR AT332693)

1шт.

AT339140

Excavator Bucket

(WHOLEGOODS) (30 INCH - .76 CUBIC YARD) (4 TEETH) (SUB FOR AT332695)

1шт.

AT339142

Excavator Bucket

(WHOLEGOODS) (36 INCH - .97 CUBIC YARD) (5 TEETH) (SUB FOR AT332696)

1шт.

AT339144

Excavator Bucket

(WHOLEGOODS) (42 INCH - 1.19 CUBIC YARD) (5 TEETH) (SUB FOR AT332697)

1шт.

AT339146

Excavator Bucket

(WHOLEGOODS) (48 INCH - 1.39 CUBIC YARD) (6 TEETH) (SUB FOR AT332698)

1шт.

50

T241930

Washer

85 X 140 X 1 mm (3.346" X 5.512" X 0.039") (1 MM)

ARшт.

51

T241937

Shim

(.5 MM)

ARшт.

90

AT342511

Kit

(WHOLEGOODS) (SIDE CUTTER KIT)

1шт.

91

AT342513

Kit

(WHOLEGOODS) (EDGE PROTECTOR) (6 INCH)

1шт.

92

AT342512

Kit

(WHOLEGOODS) (EDGE PROTECTOR) (3 INCH)

1шт.

Выбрано товаров: 21
