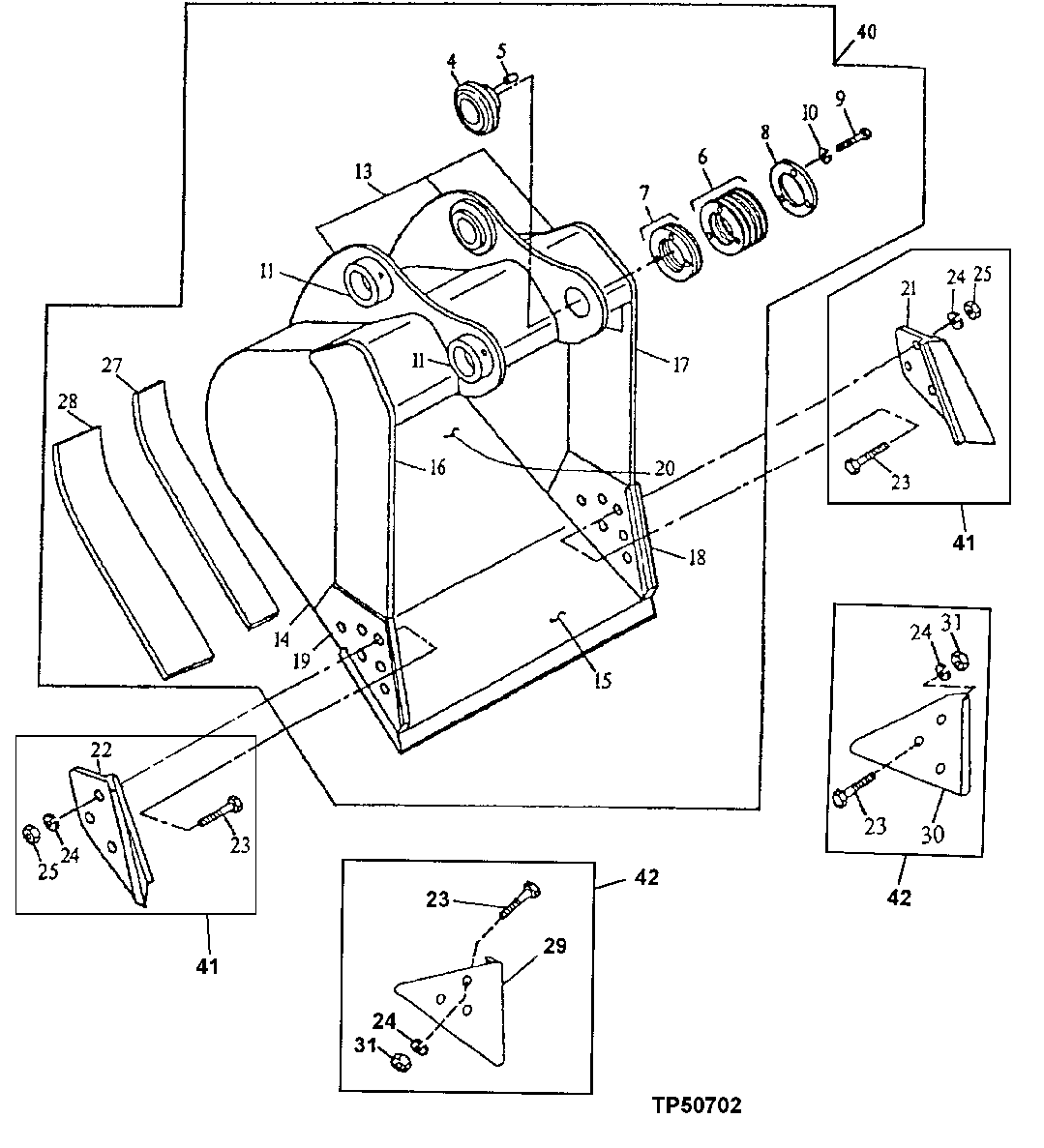

Запчасти John Deere 90ELC 310 - Heavy Duty High Capacity Bucket 3302 Bucket With Teeth

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

(LOCKING COLLAR)

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300167

Plate

(A) (RIGHT AND LEFT SIDE)

2шт.

15

Cutting Edge

(CUT TO LENGTH FROM AT131090 BULK MATERIAL)

1шт.

C252567

Cutting Edge

(A) (CUT TO LENGTH) U SE WITH 36 INCH BUCKET

1шт.

16

300159

Vertical Cutter

(A) (UPPER RIGHT SIDE)

1шт.

17

300160

Vertical Cutter

(A) (UPPER LEFT SIDE)

1шт.

18

300158

Vertical Cutter

(A) (LEFT INSERT)

1шт.

19

300157

Vertical Cutter

(A) (RIGHT INSERT)

1шт.

20

600118

Moldboard

(A) (24 INCH)

1шт.

600119

Moldboard

(A) (30 INCH)

1шт.

600120

Moldboard

(A) (36 INCH)

1шт.

600121

Moldboard

(A) (42 INCH)

1шт.

600122

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)(LEFT)

1шт.

22

Cutting Edge

(SUB AT131085)(RIGHT)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300156

Bar

(A) (INNER WEAR)

1шт.

28

306452

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

(WEAR SHROUD) (SUB AT167876)

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

(SUB AT332693)(AT163616 NLA) WHOLEGOO DS (24 INCH - .73 CUBIC YARD) (AVAILAB LE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332695)(AT163617 NLA) WHOLEGOO DS (30 INCH - .95 CUBIC YARD) (AVAILAB LE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332696)(AT163618 NLA) WHOLEGOO DS (36 INCH - 1.16 CUBIC YARD) (AVAILA BLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332697)(AT163620 NLA) WHOLEGOO DS (42 INCH - 1.38 CUBIC YARD) (AVAILA BLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332698)(AT1999358 NLA) WHOLEGO ODS (48 INCH - 1.6 CUBIC YARD BUCKET)

1шт.

41

AT131085

Kit

(CUTTING EDGE) WHOLEGOODS

1шт.

42

AT167876

Kit

(WEAR) WHOLEGOODS

1шт.
