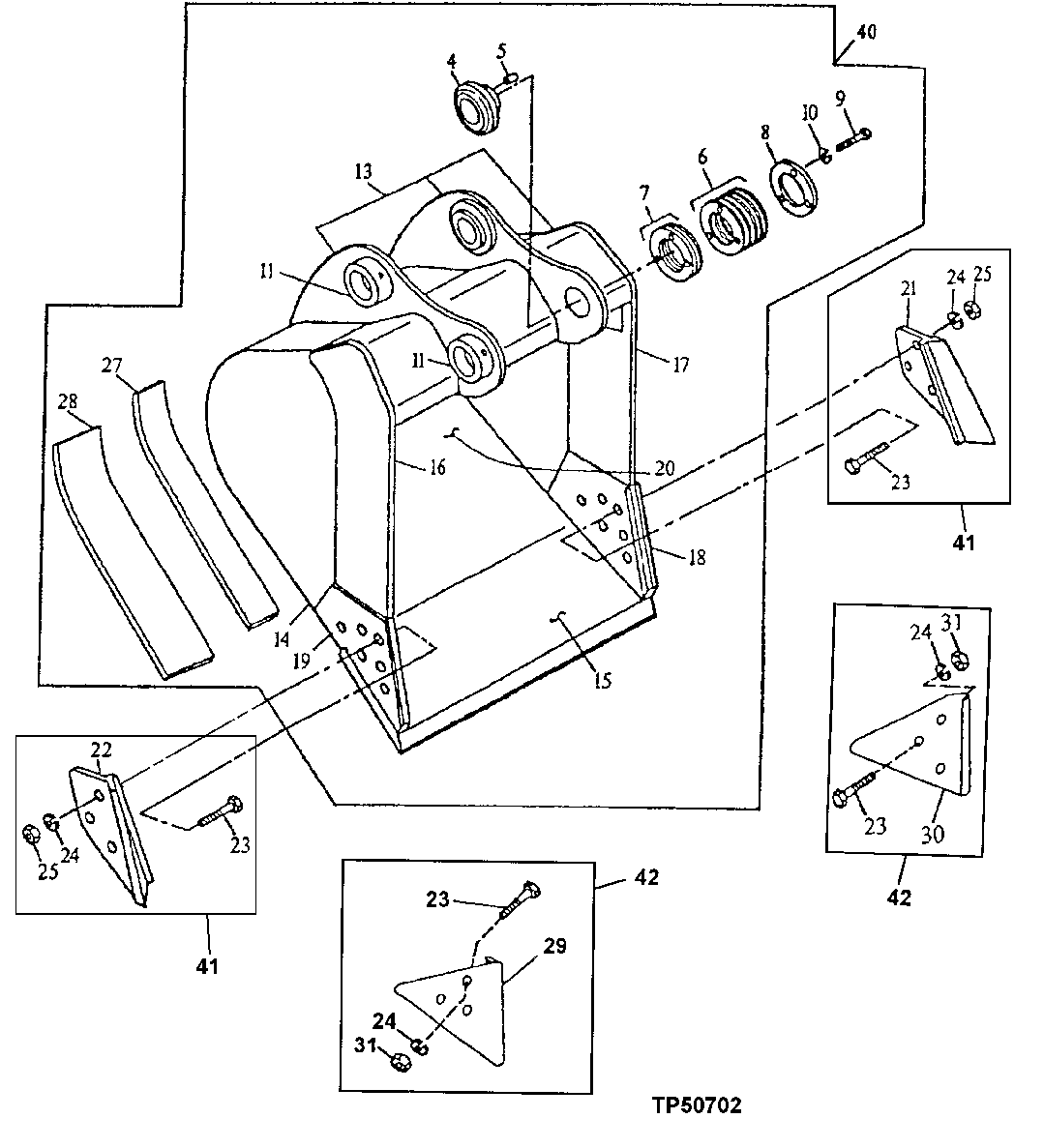

Запчасти John Deere 90ELC 304 - GENERAL PURPOSE HIGH CAPACITY BUCKET (ORDER TEETH SEPARATELY) 3302 Bucket With Teeth
№
Артикул
Название
Примечание
Количество
4
Self-Aligning Bushing
(1 INCH HEAD THICKNESS) ( AT131083 NLA)
1шт.
5
R48685
Dowel Pin
1шт.
6
TH104512
Washer
9шт.
7
TH104513
Shim
1шт.
8
TH104514
Spacer
1шт.
9
19H2706
Cap Screw
5/8" X 2"
3шт.
10
12H294
Lock Washer
5/8" (1" HEAD THICKNESS)
3шт.
11
TH104509
Bushing
2шт.
13
C607480
Pivot
(A) (BUCKET EAR BLANK ASSEMBLY)
1шт.
14
300536
Plate
(A) (RIGHT AND LEFT SIDE)
2шт.
15
Cutting Edge
(CUT TO LENGTH FROM AT131090 BULK MATERIAL)
1шт.
16
300534
Vertical Cutter
(A) (UPPER RIGHT SIDE)
1шт.
17
300535
Vertical Cutter
(A) (UPPER LEFT SIDE)
1шт.
18
300482
Vertical Cutter
(A) (LEFT INSERT)
1шт.
19
300481
Vertical Cutter
(A) (RIGHT INSERT)
1шт.
600319
Moldboard
(A) (36 INCH)
1шт.
600320
Moldboard
(A) (42 INCH)
1шт.
600321
Moldboard
(A) (48 INCH)
1шт.
21
Cutting Edge
(SUB AT131080)
1шт.
22
Cutting Edge
(SUB AT131080)
1шт.
23
09H1770
Bolt
7/8" X 2-1/2" 7/8" X 2-1/2"
6шт.
24
12H245
Lock Washer
7/8" 7/8"
6шт.
25
14H1077
Nut
7/8"
6шт.
28
306974
Bar
(A) (OUTER WEAR)
2шт.
29
Shroud
(WEAR SHROUD) (SUB AT167874)
1шт.
30
Shroud
(WEAR SHROUD) (SUB AT167874)
1шт.
31
14H1044
Nut
7/8" 22.225 MM (7/8")
6шт.
40
Excavator Bucket
(SUB AT332684)( AT163607 NLA) (30 INCH - .95 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )
1шт.
Excavator Bucket
(SUB AT332685)( AT163608 NLA) (36 INCH - 1.16 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
Excavator Bucket
(SUB AT332686)( AT163609 NLA) (42 INCH - 1.38 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
Excavator Bucket
(SUB AT332687)( AT163610 NLA) (48 INCH - 1.60 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
90
Kit
(SIDE CUTTER KIT) ( AT131080 NLA) ( WOODS-CENTRAL FABRICATORS NO. C20338)
1шт.
91
Kit
(EDGE PROTECTOR) ( AT167874 NLA) (W OODS-CENTERAL FABRICATORS NO. C28357)
1шт.
Выбрано товаров: 35
