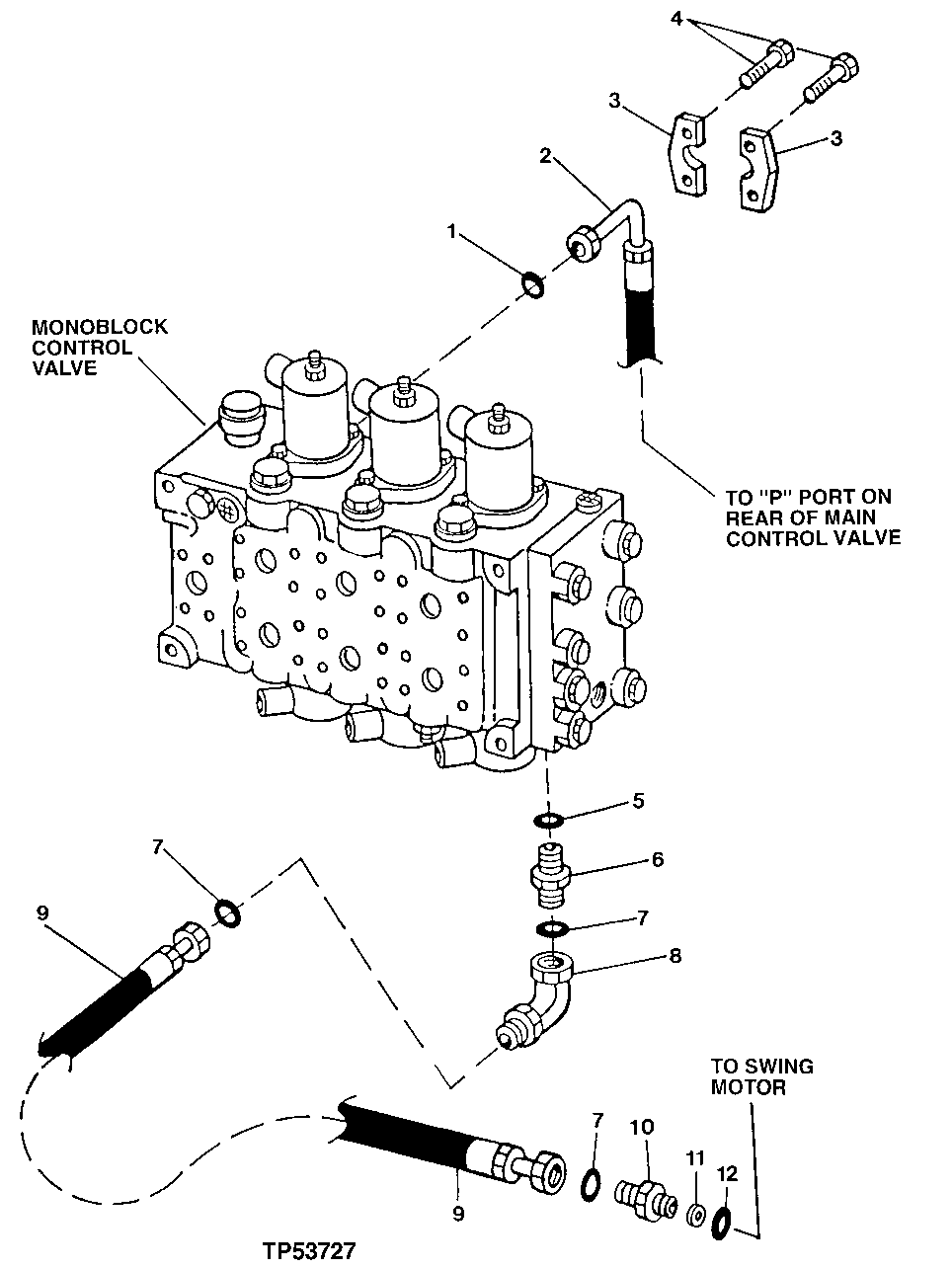

Запчасти John Deere 90ELC 302 - MONOBLOCK VALVE HYDRAULICS (FRONT / BOTTOM) (556936 - ) 2160 HYDRAULIC SYSTEM

1

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

2

AT176880

Hose

1" X 850 mm (33-1/2") X 36.5252" "P" PORT

1шт.

3

T107068

Flange Fitting

2шт.

4

19M7493

Cap Screw

M12 X 40

4шт.

5

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

6

38H1172

Adapter Fitting

1шт.

7

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

3шт.

8

38H1094

Elbow Fitting

1шт.

9

AT177829

Hydraulic Hose

17.4752" X 609 mm (24") X 17.4752"

1шт.

10

T104327

Adapter Fitting

1шт.

11

51M4236

Sealing Ring

1шт.

12

T55758

O-Ring

10.820 X 1.270 mm (0.426" X 0.050")

1шт.
