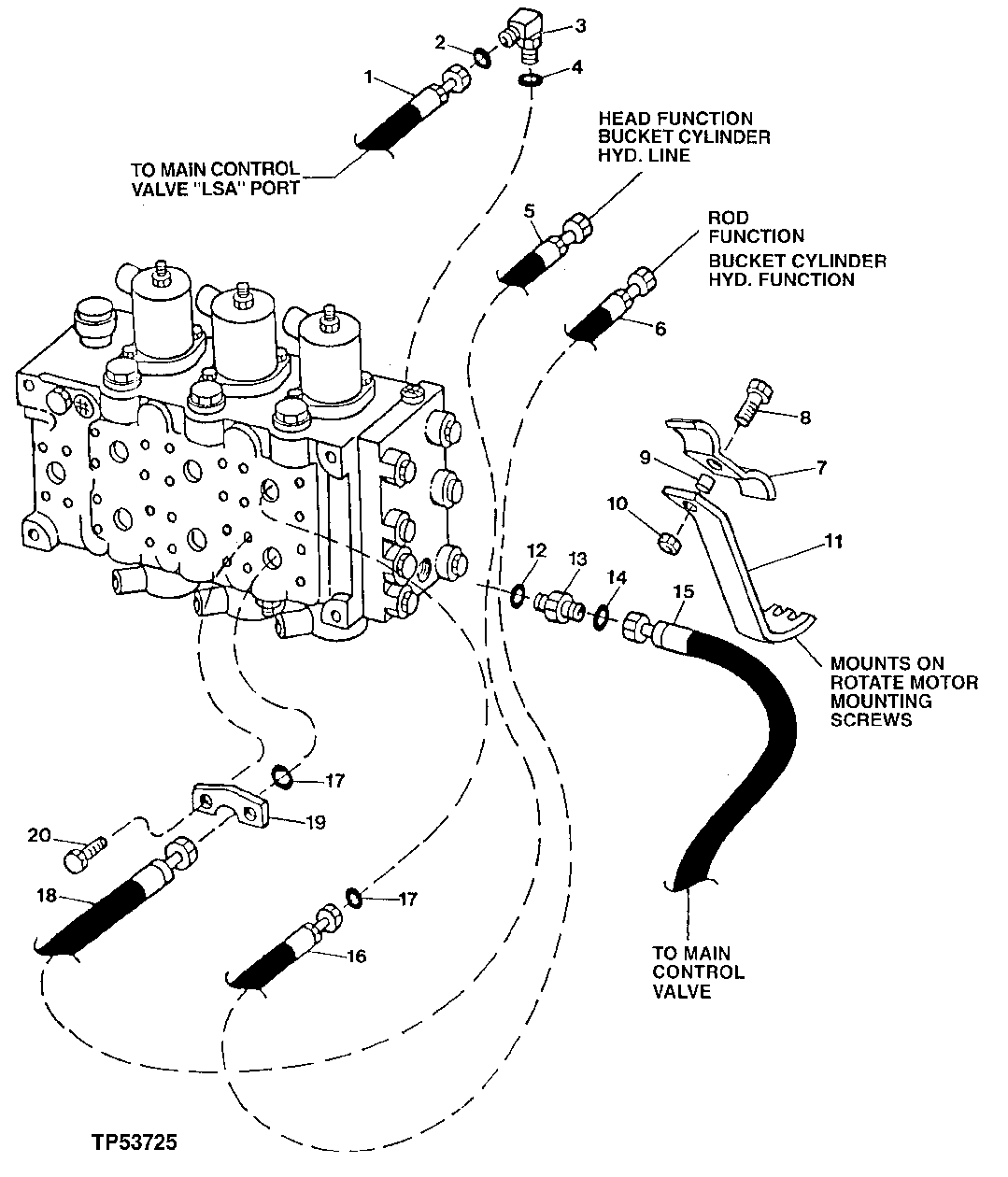

Запчасти John Deere 90ELC 300 - MONOBLOCK VALVE HYDRAULICS (FRONT) (556936 - ) 2160 HYDRAULIC SYSTEM

1

AT177757

Hydraulic Hose

9/16" X 736 mm (29") X 9/16"

1шт.

2

T77814

O-Ring

7.650 X 1.780 mm (0.301" X 0.070")

1шт.

3

38H1009

Elbow Fitting

1шт.

4

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

1шт.

5

AT177479

Hydraulic Hose

3/4" X 1473 mm (58") X 30.1752"

1шт.

6

AT178364

Hydraulic Hose

3/4" X 1524 mm (60") X 30.1752"

1шт.

7

T35459

Clamp

1шт.

8

19M7807

Screw

M10 X 60

1шт.

9

28H3389

Spacer

0.423" X 0.675" X 1"

1шт.

10

14M7296

Flange Nut

M10

1шт.

11

T160476

Support

1шт.

12

R29936

O-Ring

29.743 X 2.946 mm (1.171" X 0.116")

1шт.

13

38H1164

Adapter Fitting

1шт.

14

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

1шт.

15

AT178332

Hydraulic Hose

36.5252" X 1524 mm (60") X 36.5252"

1шт.

16

AT178364

Hydraulic Hose

3/4" X 1524 mm (60") X 30.1752"

1шт.

T107493

Flange Fitting

(NOT ILLUSTRATED) PLUG NOTE: U SE IN BUCKET VALVE WORK PORT WI TH NO BOOM AND ARM INSTALLATION

1шт.

17

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

18

AT177479

Hydraulic Hose

3/4" X 1473 mm (58") X 30.1752"

1шт.

T107493

Flange Fitting

(NOT ILLUSTRATED) PLUG NOTE: U SE IN BUCKET VALVE WORK PORT WI TH NO BOOM AND ARM INSTALLATION

1шт.

19

T107446

Flange Fitting

4шт.

20

19M8881

Screw

M10 X 30

8шт.
