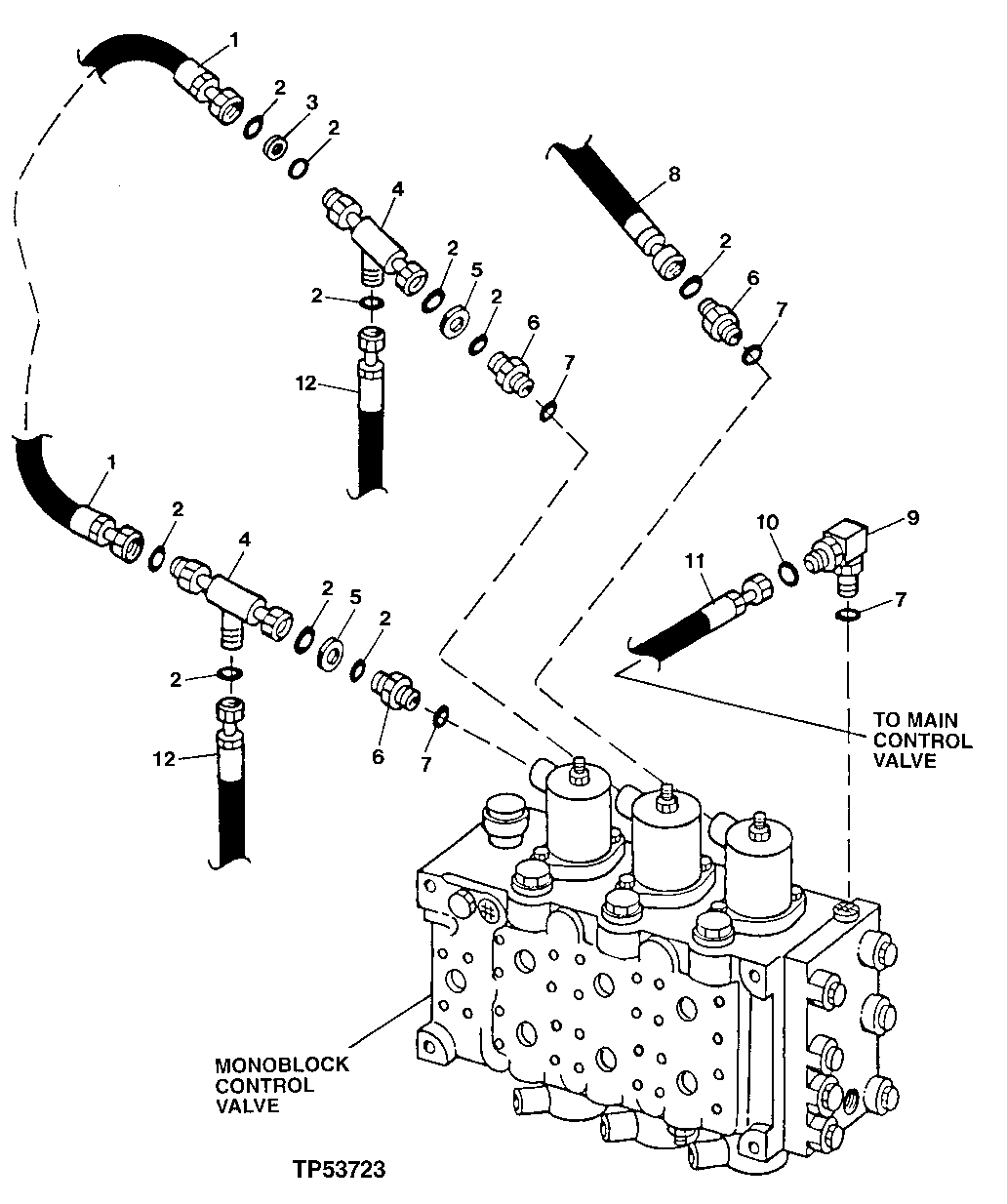

Запчасти John Deere 90ELC 298 - MONOBLOCK VALVE HYDRAULICS (UPPER) (556936 - ) 2160 HYDRAULIC SYSTEM

1

AT176875

Hydraulic Hose

17.4752" X 406 mm (16") X 17.4752"

1шт.

2

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

10шт.

3

T114635

Orifice

1шт.

4

38H1030

Tee Fitting

2шт.

5

N279033

Orifice

(SUB FOR N203223)

2шт.

6

38H1160

Adapter Fitting

3шт.

7

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

8

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752"

1шт.

9

38H1009

Elbow Fitting

1шт.

10

T77814

O-Ring

7.650 X 1.780 mm (0.301" X 0.070")

1шт.

11

AT177757

Hydraulic Hose

9/16" X 736 mm (29") X 9/16"

1шт.

12

AT177773

Hydraulic Hose

9/16" X 1803 mm (71") X 17.4752"

2шт.
