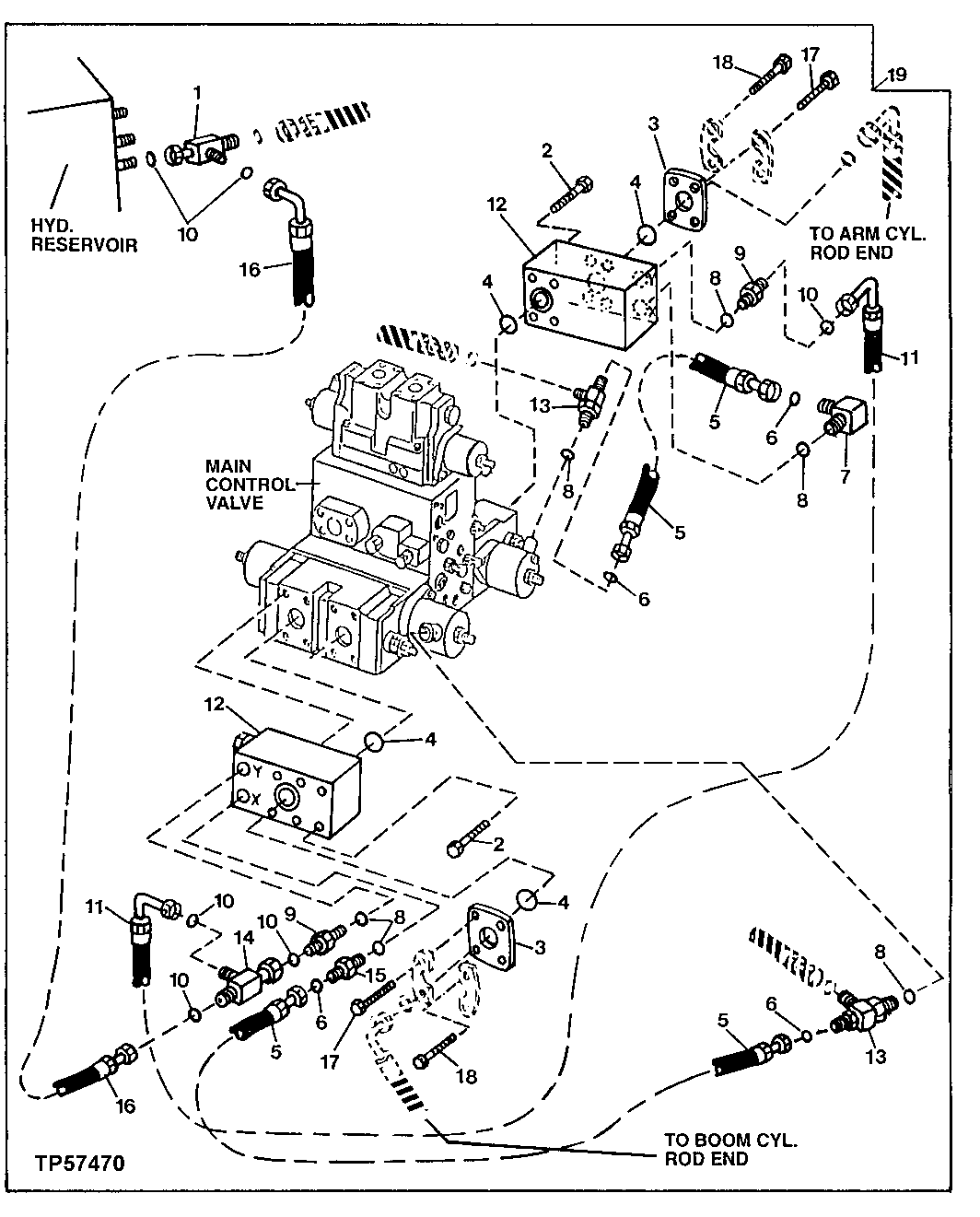

Запчасти John Deere 90ELC 294 - BOOM AND ARM CYLINDER ANTI-DRIFT VALVE (556936 - ) 2160 HYDRAULIC SYSTEM

1

38H1031

Tee Fitting

1шт.

2

19M7349

Cap Screw

M12 X 95

4шт.

3

T145378

Fitting

2шт.

4

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

5

AT152147

Hydraulic Hose

17.4752" X 635 mm (25") X 17.4752"

2шт.

6

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

4шт.

7

38H1004

Elbow Fitting

("X" PORT)

1шт.

8

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

6шт.

9

38H1173

Adapter Fitting

("Y" PORT)

2шт.

10

T77857

O-Ring

6шт.

11

AT178544

Hydraulic Hose

13/16" X 1018 mm (40") X 13/16"

1шт.

12

AT152186

Hyd Actuated Control Valve

2шт.

13

38H1023

Tee Fitting

2шт.

14

38H1031

Tee Fitting

1шт.

15

38H1160

Adapter Fitting

("X"PORT)

1шт.

16

AT178543

Hydraulic Hose

13/16" X 533 mm (21") X 13/16"

1шт.

17

19M7493

Cap Screw

M12 X 40

4шт.

18

19M7914

Cap Screw

M12 X 120

4шт.

19

Kit

BOOM AND ARM CYLINDER ANTI-DRIFT VA LVE ( AT178557 NO LONGER AVAILABLE)

1шт.
