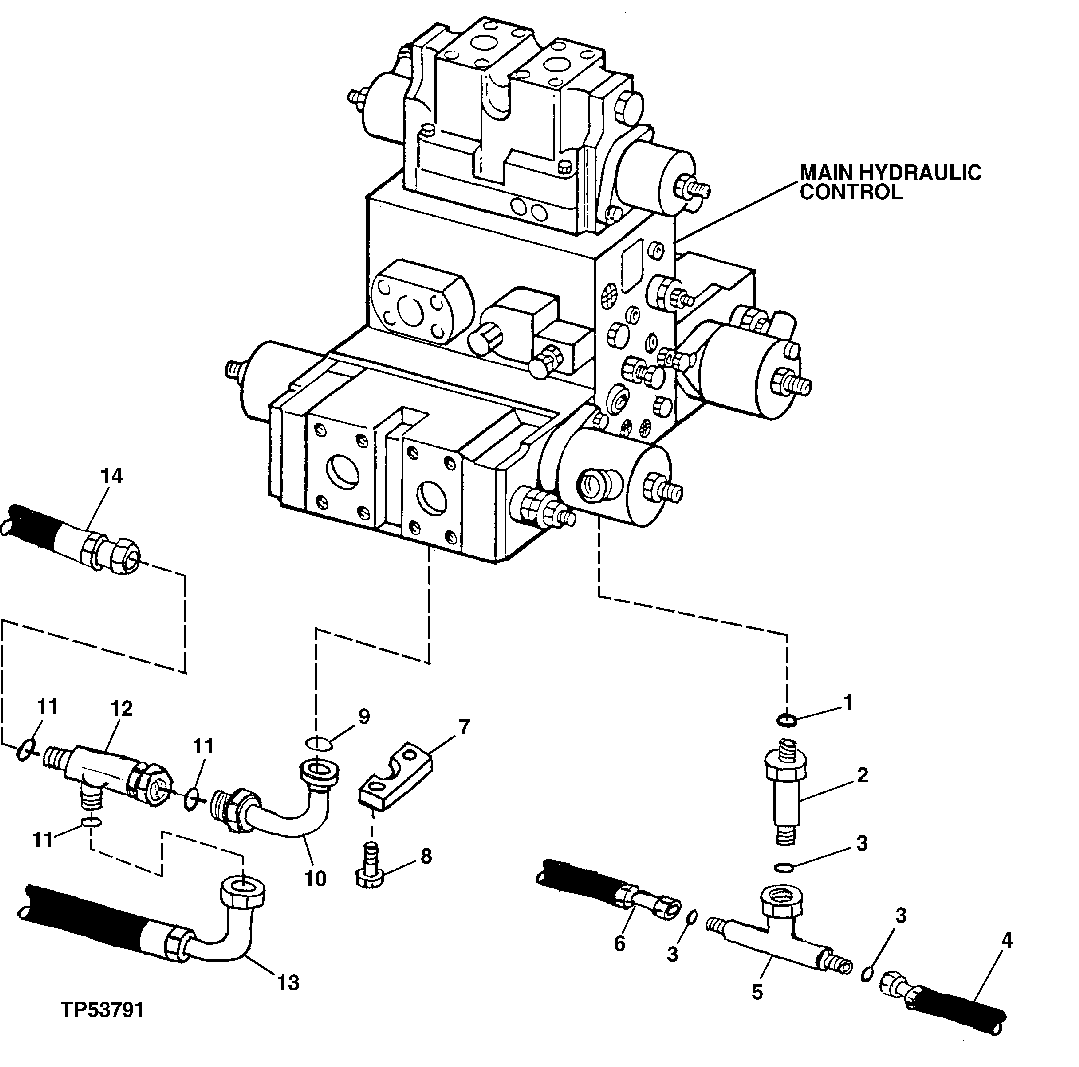

Запчасти John Deere 90ELC 293 - MAIN CONTROL VALVE HYDRAULICS (BOTTOM) (556936 - ) 2160 HYDRAULIC SYSTEM

1

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

1шт.

2

38H1212

Adapter Fitting

(TO PORT AT BOTTOM FRON T OF MAIN CONTROL VALVE)

1шт.

3

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

3шт.

4

AT177755

Hydraulic Hose

17.4752" X 711 mm (28") X 9/16" ( TO "LSA" PORT ON MONOBLOCK VALVE)

1шт.

5

38H1038

Tee Fitting

1шт.

6

AT179358

Hydraulic Hose

17.4752" X 1549 mm (61") X 17.4752" ( TO "LS" PORT ADAPTER ON MAIN HYD PUMP)

1шт.

7

T107068

Flange Fitting

2шт.

8

19M7493

Cap Screw

M12 X 40

4шт.

9

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

1шт.

10

T149315

Adapter Fitting

(TO "P" PORT AT BOTTOM RE AR OF MAIN CONTROL VALVE)

1шт.

11

19M7493

Cap Screw

M12 X 40

8шт.

12

38H1002

Tee Fitting

1шт.

13

AT178332

Hydraulic Hose

36.5252" X 1524 mm (60") X 36.5252" (TO "P " PORT ON FRONT OF MONOBLOCK CONTROL VALVE)

1шт.

14

AT177785

Hydraulic Hose

(TO UPPER PORT ON MAIN HYD PUMP)

1шт.
