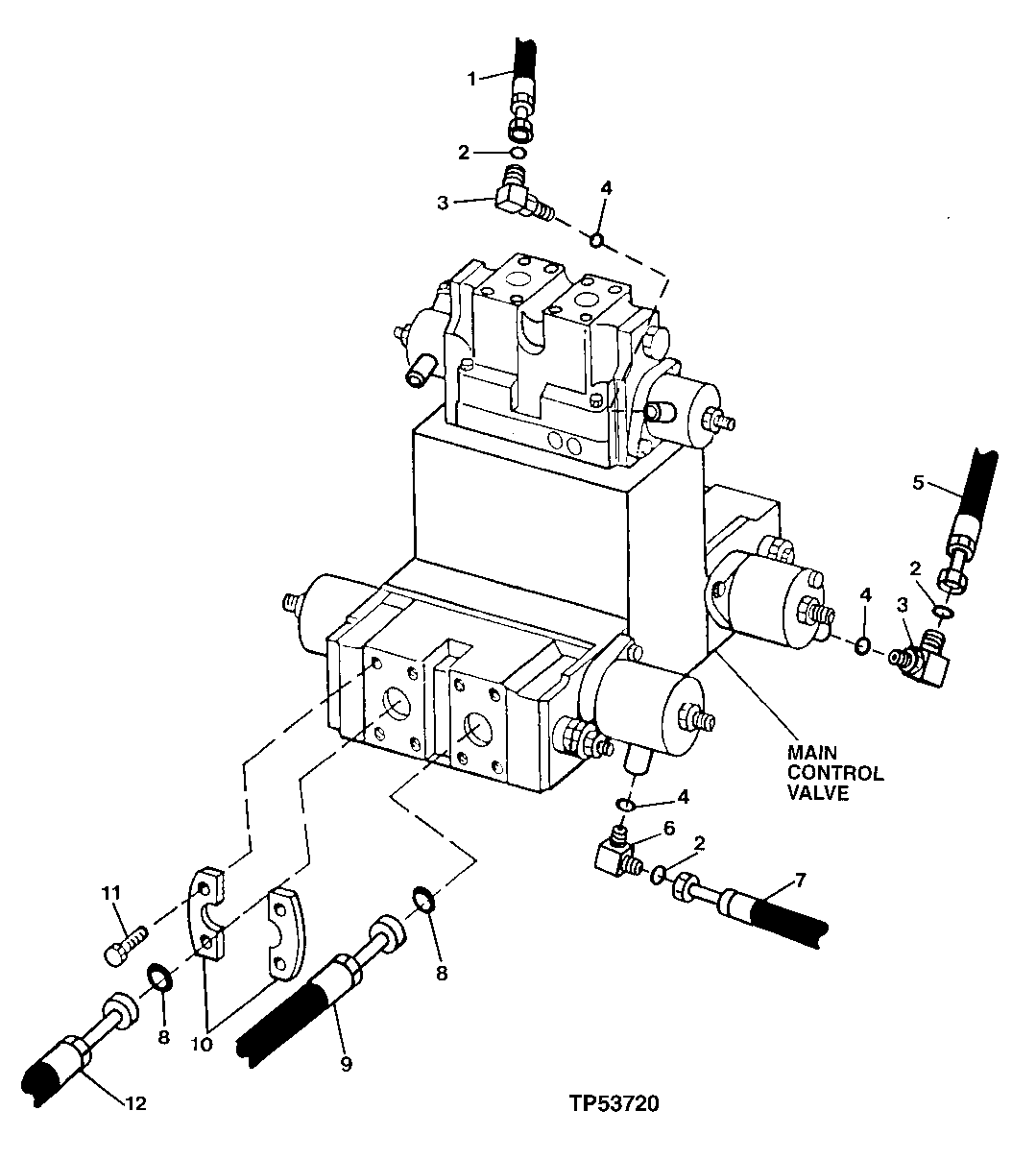

Запчасти John Deere 90ELC 292 - MAIN CONTROL VALVE HYDRAULICS (REAR) (556936 - ) 2160 HYDRAULIC SYSTEM

1

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752"

1шт.

2

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

3шт.

3

38H1004

Elbow Fitting

2шт.

4

R26448

O-Ring

3шт.

5

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752" (SUB FOR AT176876)

1шт.

6

38H1045

Elbow Fitting

1шт.

7

AT176878

Hydraulic Hose

17.4752" X 838 mm (33") X 17.4752"

1шт.

8

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

2шт.

9

AT177675

Hydraulic Hose

1" X 1752 mm (69") X 36.5252"

1шт.

T114638

Flange Fitting

(NOT ILLUSTRATED) PLUG NOTE: USE IN ARM VALVE WORK PORT WIT H NO BOOM AND ARM INSTALLATION

1шт.

10

T107068

Flange Fitting

4шт.

11

19M7493

Cap Screw

M12 X 40

8шт.

12

AT177674

Hydraulic Hose

1" X 1270 mm (50") X 30.1752"

1шт.

T114638

Flange Fitting

(NOT ILLUSTRATED) PLUG NOTE: USE IN BUCKET ARM VALVE WORK PORT WI TH NO BOOM AND ARM INSTALLATION

1шт.
