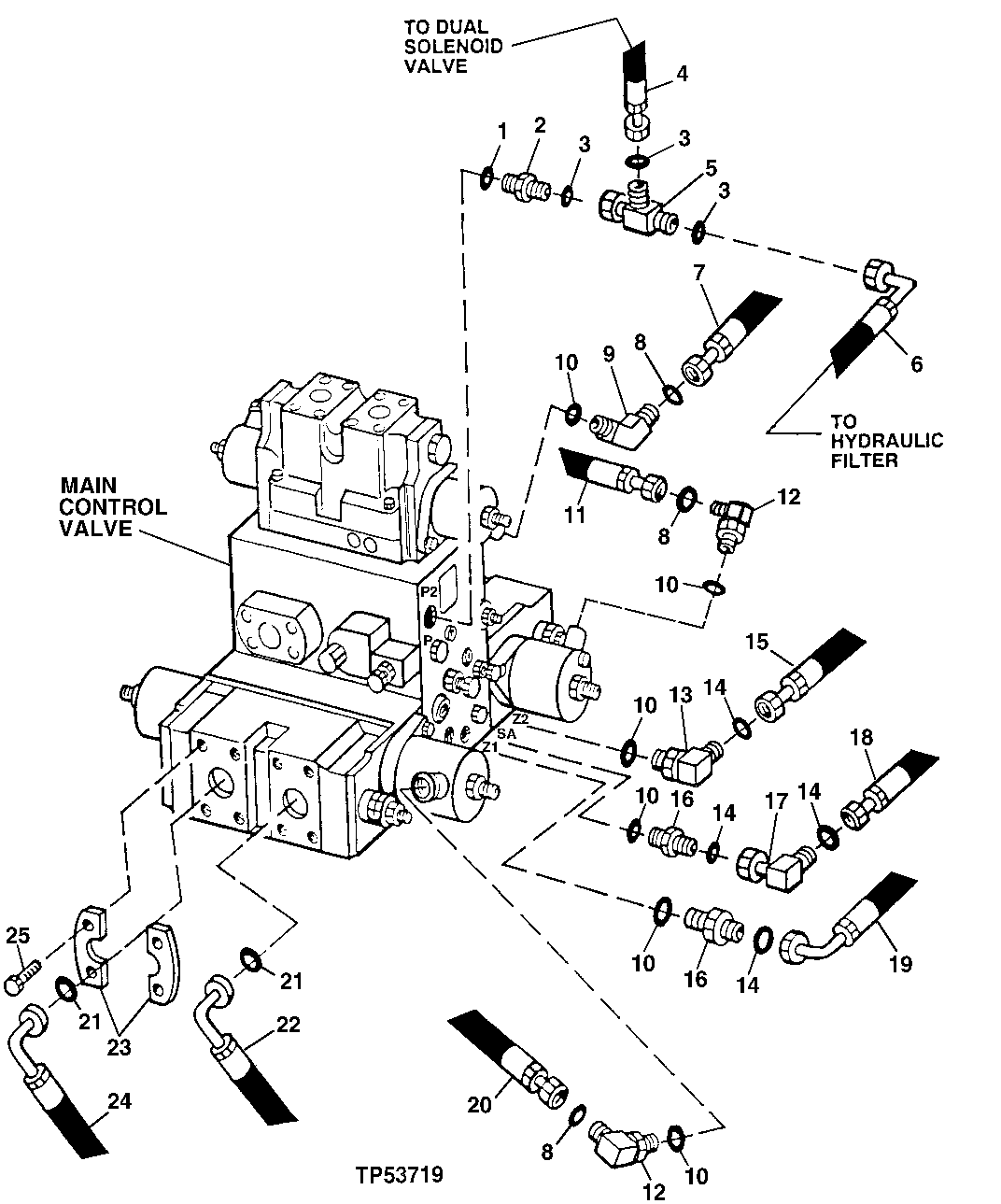

Запчасти John Deere 90ELC 291 - MAIN CONTROL VALVE HYDRAULICS (FRONT) (556936 - ) 2160 HYDRAULIC SYSTEM

1

R26906

O-Ring

1шт.

2

38H1174

Adapter Fitting

1шт.

3

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

3шт.

4

AT178084

Hydraulic Hose

17.4752" X 558 mm (22") X 13/16"

1шт.

5

38H1031

Tee Fitting

1шт.

6

AT178083

Hydraulic Hose

30.1752" X 1295 mm (51") X 13/16"

1шт.

7

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752"

1шт.

8

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

3шт.

9

38H1045

Elbow Fitting

1шт.

10

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

6шт.

11

AT176877

Hydraulic Hose

17.4752" X 1168 mm (46") X 17.4752"

1шт.

12

38H1004

Elbow Fitting

2шт.

13

38H1009

Elbow Fitting

1шт.

14

T77814

O-Ring

7.650 X 1.780 mm (0.301" X 0.070")

4шт.

15

AT177799

Hydraulic Hose

1шт.

16

38H1168

Adapter Fitting

2шт.

17

38H1093

Elbow Fitting

1шт.

18

AT177757

Hydraulic Hose

9/16" X 736 mm (29") X 9/16"

1шт.

19

AT177800

Hydraulic Hose

9/16" X 2057 mm (81") X 9/16"

1шт.

20

AT177756

Hydraulic Hose

17.4752" X 1524 mm (60") X 17.4752"

1шт.

21

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

2шт.

22

AT177798

Hydraulic Hose

1" X 1092 mm (43") X 36.5252"

1шт.

23

T107068

Flange Fitting

4шт.

24

AT147237

Hydraulic Hose

1" X 1195 mm (47") X 36.5252"

1шт.

25

19M7493

Cap Screw

M12 X 40

8шт.
