287 - MAIN HYDRAULIC CONTROL VALVE MOUNTING (556936 - )

Запчасти John Deere 90ELC 287 - MAIN HYDRAULIC CONTROL VALVE MOUNTING (556936 - ) 2160 HYDRAULIC SYSTEM

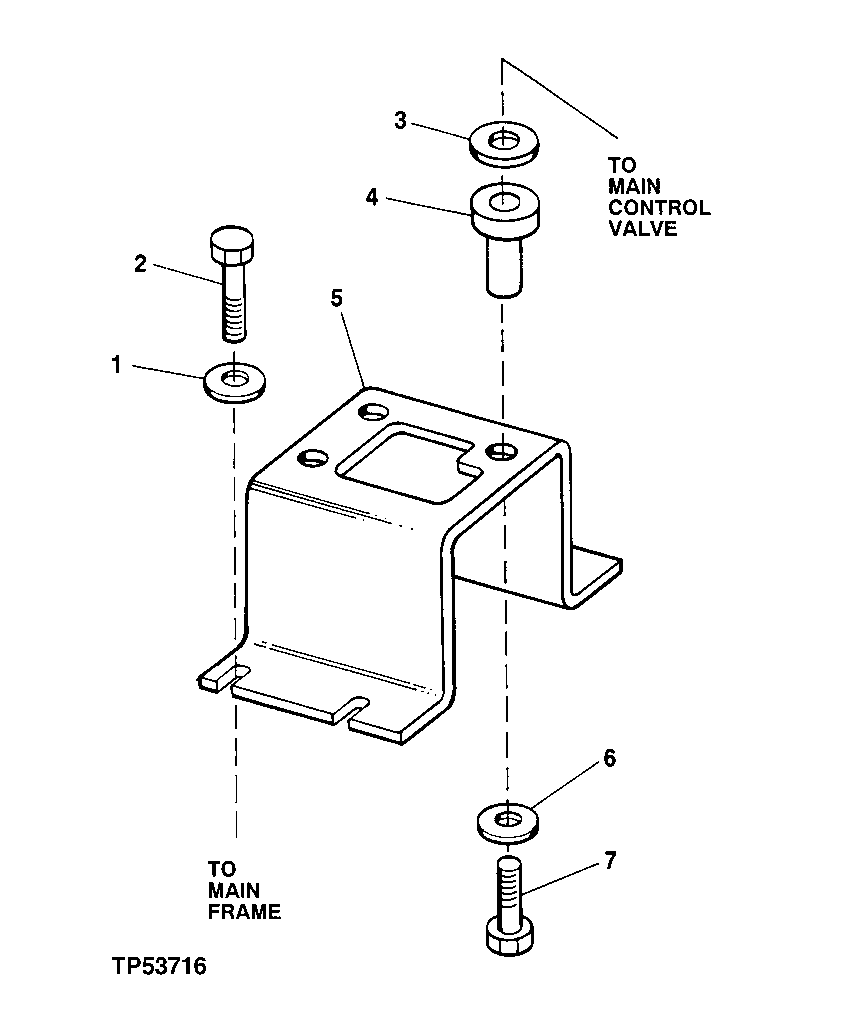

Схема запчастей John Deere 90ELC - 287 - MAIN HYDRAULIC CONTROL VALVE MOUNTING (556936 - ) 2160 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Washer

9/16" X 2" X 0.134" ( 24H 1270 NO LONGER AVAILABLE)

4шт.

2

19M7813

Screw

M12 X 45

4шт.

3

24H1318

Washer

7/16" X 2" X 0.134"

3шт.

4

AT139776

Isolator

3шт.

5

T160355

Support

MOUNTING

1шт.

6

24H1318

Washer

7/16" X 2" X 0.134"

3шт.

7

19M7813

Screw

M12 X 45

3шт.

Выбрано товаров: 7
