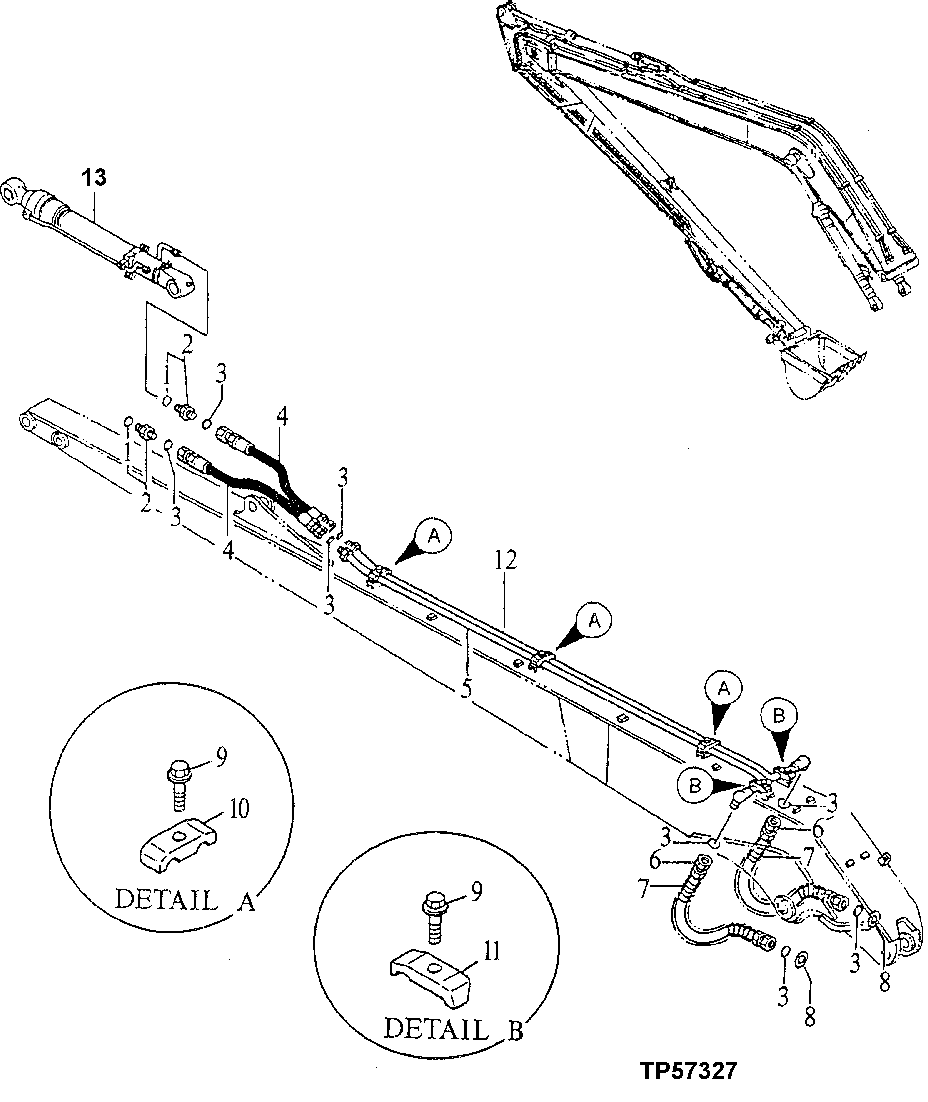

Запчасти John Deere 90ELC 279 - SUPER LONG FRONT ARM HYRAULIC LINES AND FITTINGS 2160 HYDRAULIC SYSTEM

1

4506418

O-Ring

(SUB FOR U46489)

1шт.

2

4197530

Adapter Fitting

(SUB FOR TH109595)

2шт.

3

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

4

AT155257

Hydraulic Hose

2шт.

5

8052579

Tube

(SUB FOR AT160886)LEFT

1шт.

6

4286047

Hydraulic Hose

(SUB FOR AT131291)

2шт.

7

4053610

Hose Guard

(SUB FOR TH104495)

2шт.

8

4203220

Washer

32 X 50 X 1.600 mm (1.260" X 1-3 1/32" X 1/16") (SUB FOR TH109827)

2шт.

9

19M7363

Cap Screw

M12 X 60

5шт.

10

4285723

Clamp

(SUB FOR TH109071 OR 4189859)

3шт.

11

4190126

Clamp

(SUB FOR TH109830)

2шт.

12

8052580

Tube

(SUB FOR AT160887)RIGHT

1шт.

13

4287889

Cylinder

(SUB FOR AT159611, 4298371)BUCKET

1шт.
