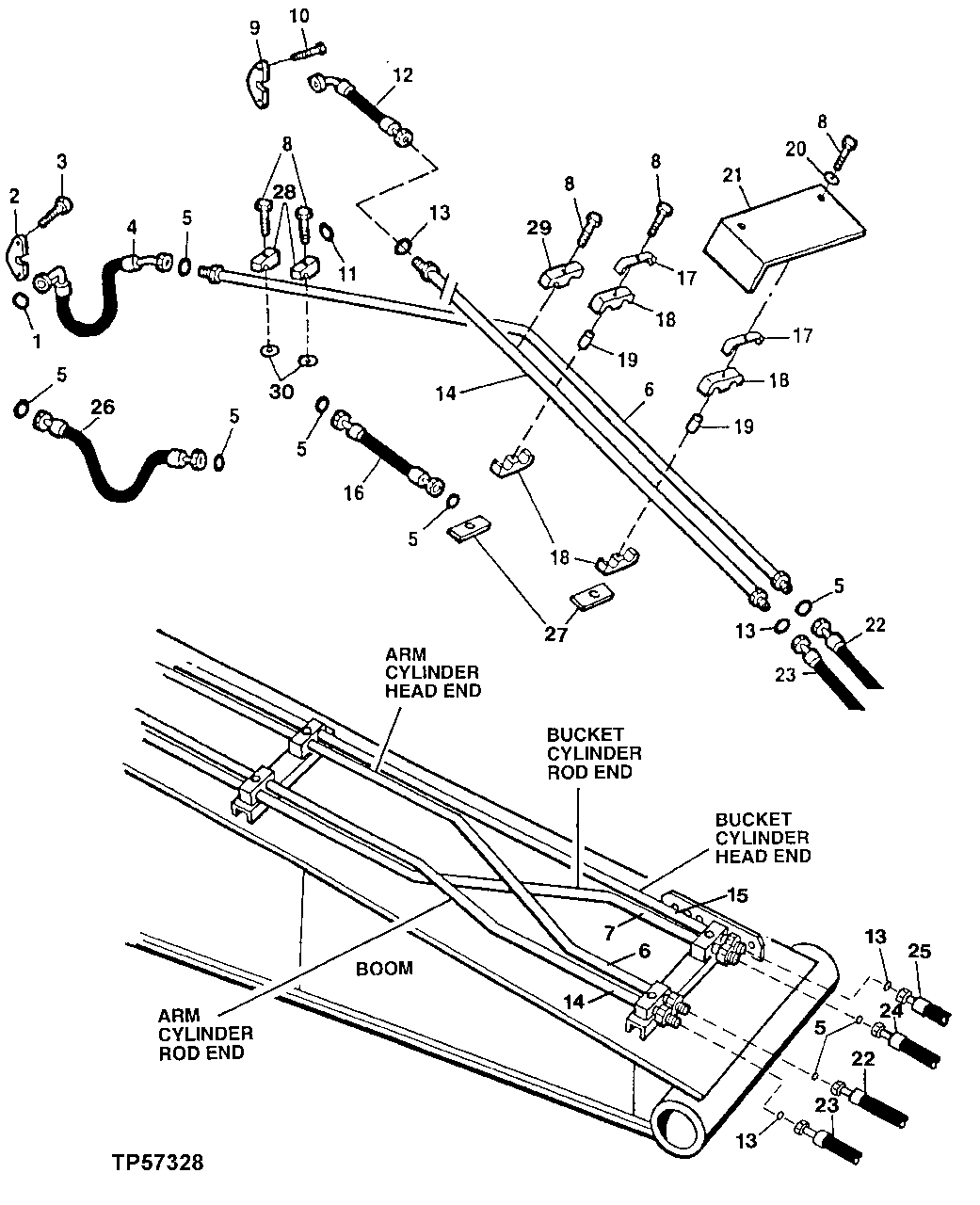

Запчасти John Deere 90ELC 275 - ARM AND BUCKET CYLINDER HYDRAULIC LINES (556936 - ) 2160 HYDRAULIC SYSTEM

1

T59014

O-Ring

1шт.

2

T107446

Flange Fitting

2шт.

3

19M7662

Cap Screw

M10 X 30

4шт.

4

AT147452

Hydraulic Hose

3/4" X 1659 mm (65-1/4") X 30.17 52" LONG ARM (RIGHT SIDE OF BOOM) BOOM TO BUCKET-CYLINDER HEAD POR T

1шт.

AT152038

Hose

SHORT ARM (RIGHT SIDE OF BOOM) B OOM TO BUCKET-CYLINDER HEAD PORT

1шт.

5

T77858

O-Ring

8шт.

6

AT177872

Oil Line

RIGHT SIDE OF BOOM (ARM CYLINDER HEAD END)

1шт.

7

AT177871

Oil Line

LEFT SIDE OF BOOM (BUCKET CYLINDER ROD END)

1шт.

8

19M7816

Screw

M12 X 65

10шт.

9

T107068

Flange Fitting

2шт.

10

19M7493

Cap Screw

M12 X 40

4шт.

11

T78313

O-Ring

1шт.

12

AT147201

Hydraulic Hose

1" X 774 mm (30-1/2") X 36.5252" ARM CYLINDER HEAD END (RIGHT SIDE OF BOOM)

1шт.

13

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

14

AT177873

Oil Line

LEFT SIDE OF BOOM (ARM CYLINDER ROD END)

1шт.

15

AT169520

Oil Line

RIGHT SIDE OF BOOM (BU CKET CYLINDER HEAD END)

1шт.

16

AT147202

Hydraulic Hose

30.1752" X 800 mm (31-1/2") X 30.1752" ARM CYLINDER OF ROD END TUBE (LEFT SIDE OF BOOM)

1шт.

17

T139640

Channel

4шт.

18

T139643

Clamp

LEFT SIDE OF BOOM

4шт.

T139642

Clamp

RIGHT SIDE OF BOOM

4шт.

19

28H1676

Bushing

0.546" X 0.840" X 1-5/8"

4шт.

20

24M7240

Washer

13 X 25 X 3 mm

4шт.

21

T139476

Guard

1шт.

22

AT178364

Hydraulic Hose

3/4" X 1524 mm (60") X 30.1752"

1шт.

23

AT177674

Hydraulic Hose

1" X 1270 mm (50") X 30.1752"

1шт.

24

AT177479

Hydraulic Hose

3/4" X 1473 mm (58") X 30.1752"

1шт.

25

AT177675

Hydraulic Hose

1" X 1752 mm (69") X 36.5252"

1шт.

26

AT147203

Hydraulic Hose

30.1752" X 1600 mm (63") X 30.17 52" LONG ARM (LEFT SIDE OF BOOM) BOOM TO BUCKET-CYLINDER ROD PORT

1шт.

AT152037

Hydraulic Hose

36.5252" X 1299 mm (51-1/4") X 36 .5252" SHORT ARM (LEFT SIDE OF BOO M) BOOM TO BUCKET-CYLINDER ROD POR T

1шт.

27

T160692

Strap

3шт.

28

T139648

Clamp

4шт.

29

T142128

Clamp

LEFT SIDE OF BOOM

1шт.

T142129

Clamp

RIGHT SIDE OF BOOM

1шт.

30

24H1346

Washer

17/32" X 1-3/4" X 0.120"

4шт.
