17 - ROTARY MANIFOLD-TO-PROPEL CONTROL VALVE LINES AND FITTINGS

Запчасти John Deere 90ELC 17 - ROTARY MANIFOLD-TO-PROPEL CONTROL VALVE LINES AND FITTINGS 0260 HYDRAULIC SYSTEM

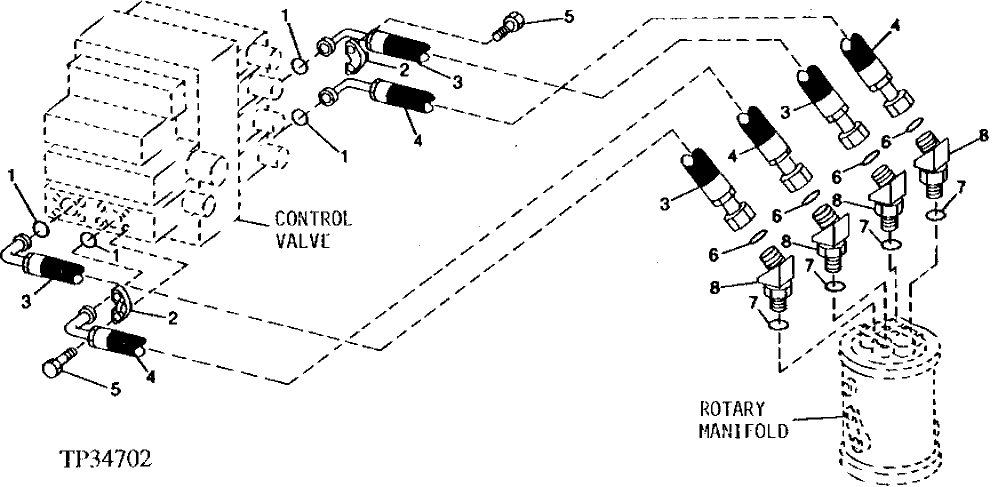

Схема запчастей John Deere 90ELC - 17 - ROTARY MANIFOLD-TO-PROPEL CONTROL VALVE LINES AND FITTINGS 0260 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T59014

O-Ring

4шт.

2

T107446

Flange Fitting

8шт.

3

AT147247

Hydraulic Hose

2шт.

4

AT147246

Hydraulic Hose

2шт.

5

19M8881

Screw

M10 X 30

16шт.

6

T77858

O-Ring

4шт.

7

R27149

O-Ring

(SUB FOR TH100055, THIS APPLICATION)

4шт.

8

AT164375

Elbow Fitting

(SUB FOR AT130711)

4шт.

Выбрано товаров: 8
