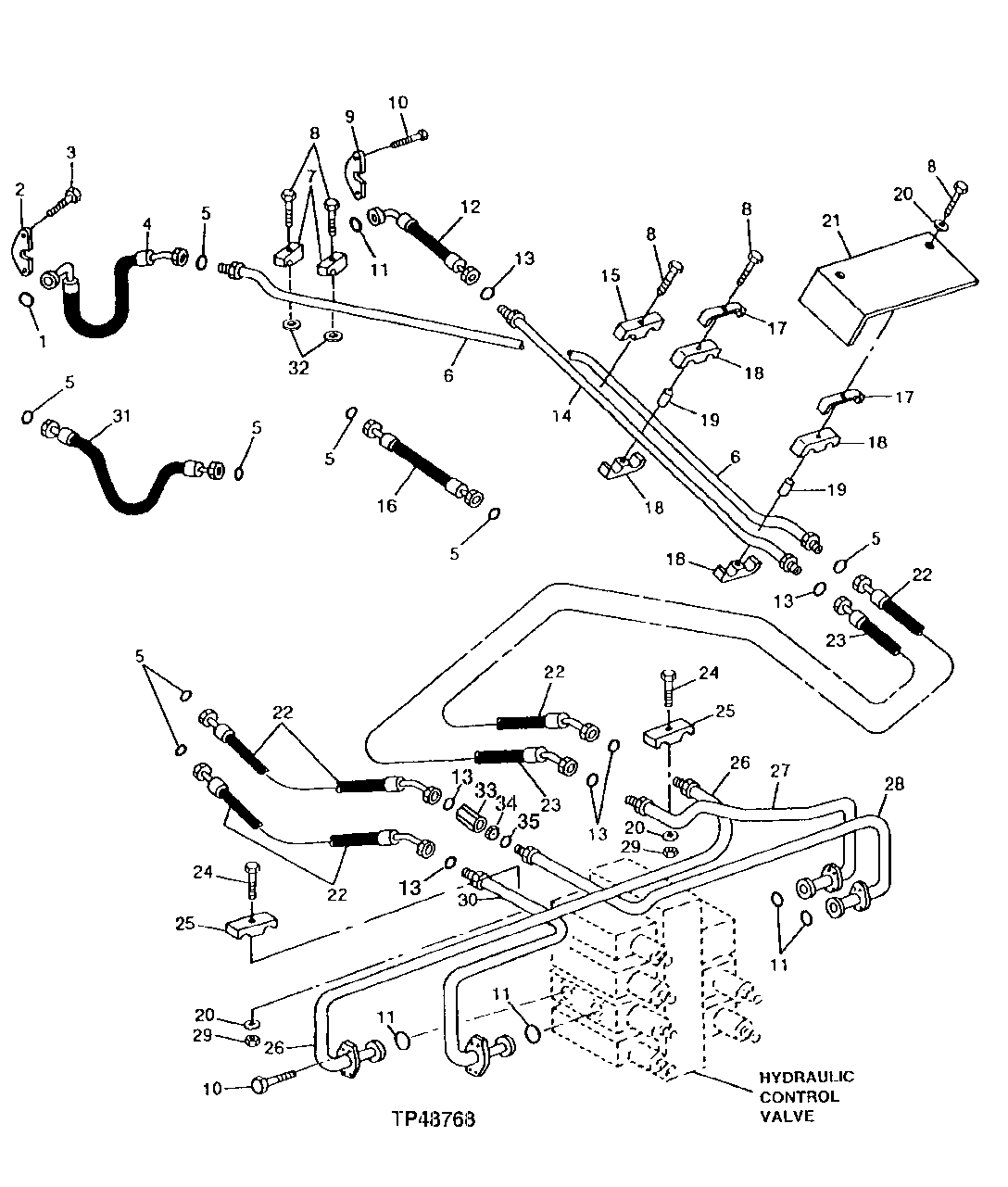

Запчасти John Deere 90ELC 274 - ARM AND BUCKET CYLINDER HYRAULIC LINES ( - 556935) 2160 HYDRAULIC SYSTEM

1

T59014

O-Ring

1шт.

2

T107446

Flange Fitting

2шт.

3

19M7662

Cap Screw

M10 X 30

4шт.

4

AT147452

Hydraulic Hose

3/4" X 1659 mm (65-1/4") X 30.17 52" LONG ARM (RIGHT SIDE OF BOOM) BOOM TO BUCKET-CYLINDER HEAD POR T

1шт.

AT152038

Hose

SHORT ARM (RIGHT SIDE OF BOOM) B OOM TO BUCKET-CYLINDER HEAD PORT

1шт.

5

T77858

O-Ring

8шт.

6

AT169521

Oil Line

(SUB FOR AT139595)LEFT SIDE OF BOOM (WHEN ORDERED PRIOR TO SERIAL NUMBER 546277 ALSO ORDER (4) 24H1346 WASHERS )

1шт.

AT169520

Oil Line

(SUB FOR AT139594)RIGHT SIDE OF BOOM (WHEN ORDERED PRIOR TO SERIAL NUMBER 5 46277 ALSO ORDER (4) 24H1346 WASHERS)

1шт.

7

T139648

Clamp

4шт.

8

19M7816

Screw

M12 X 65

10шт.

9

T107068

Flange Fitting

2шт.

10

19M7493

Cap Screw

M12 X 40

20шт.

11

T78313

O-Ring

5шт.

12

AT147201

Hydraulic Hose

1" X 774 mm (30-1/2") X 36.5252" ARM CYLINDER HEAD END (RIGHT SIDE OF BOOM)

1шт.

13

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

6шт.

14

AT163113

Oil Line

(SUB FOR AT139597)LEFT SIDE OF BOOM

1шт.

AT163112

Oil Line

(SUB FOR AT139596)RIGHT SIDE OF BOOM

1шт.

15

T142128

Clamp

LEFT SIDE OF BOOM

1шт.

T142129

Clamp

RIGHT SIDE OF BOOM

1шт.

16

AT147202

Hydraulic Hose

30.1752" X 800 mm (31-1/2") X 30.1752" ARM CYLINDER OF ROD END TUBE (LEFT SIDE OF BOOM)

1шт.

17

T139640

Channel

4шт.

18

T139643

Clamp

LEFT SIDE OF BOOM

4шт.

T139642

Clamp

RIGHT SIDE OF BOOM

4шт.

19

28H1676

Bushing

0.546" X 0.840" X 1-5/8"

4шт.

20

24M7240

Washer

13 X 25 X 3 mm

4шт.

21

T139476

Guard

1шт.

22

AT152105

Hydraulic Hose

30.1752" X 1074 mm (42-1/4") X 36.5252"

3шт.

23

AT147236

Hydraulic Hose

36.5252" X 1074 mm (42-1/4") X 36.5252"

1шт.

24

19M7753

Cap Screw

M12 X 70

2шт.

25

T52979

Clamp

2шт.

26

AT147211

Oil Line

1шт.

27

AT147213

Oil Line

1шт.

AT167970

Oil Line

(USE WITH ARM REGENERATION)

1шт.

28

AT147212

Oil Line

1шт.

AT167969

Oil Line

(USE WITH ARM REGENERATION)

1шт.

29

14M7401

Lock Nut

M12

2шт.

30

AT147210

Oil Line

1шт.

31

AT147203

Hydraulic Hose

30.1752" X 1600 mm (63") X 30.17 52" LONG ARM (LEFT SIDE OF BOOM) BOOM TO BUCKET-CYLINDER ROD PORT

1шт.

AT152037

Hydraulic Hose

36.5252" X 1299 mm (51-1/4") X 36 .5252" SHORT ARM (LEFT SIDE OF BOO M) BOOM TO BUCKET-CYLINDER ROD POR T

1шт.

32

24H1346

Washer

17/32" X 1-3/4" X 0.120"

4шт.

33

T82004

Adapter Fitting

1шт.

38H1164

Adapter Fitting

1шт.

T160419

Adapter Fitting

1шт.

38H1194

Adapter Fitting

1шт.

T77858

O-Ring

1шт.

34

T159022

Orifice

1шт.

35

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

1шт.
