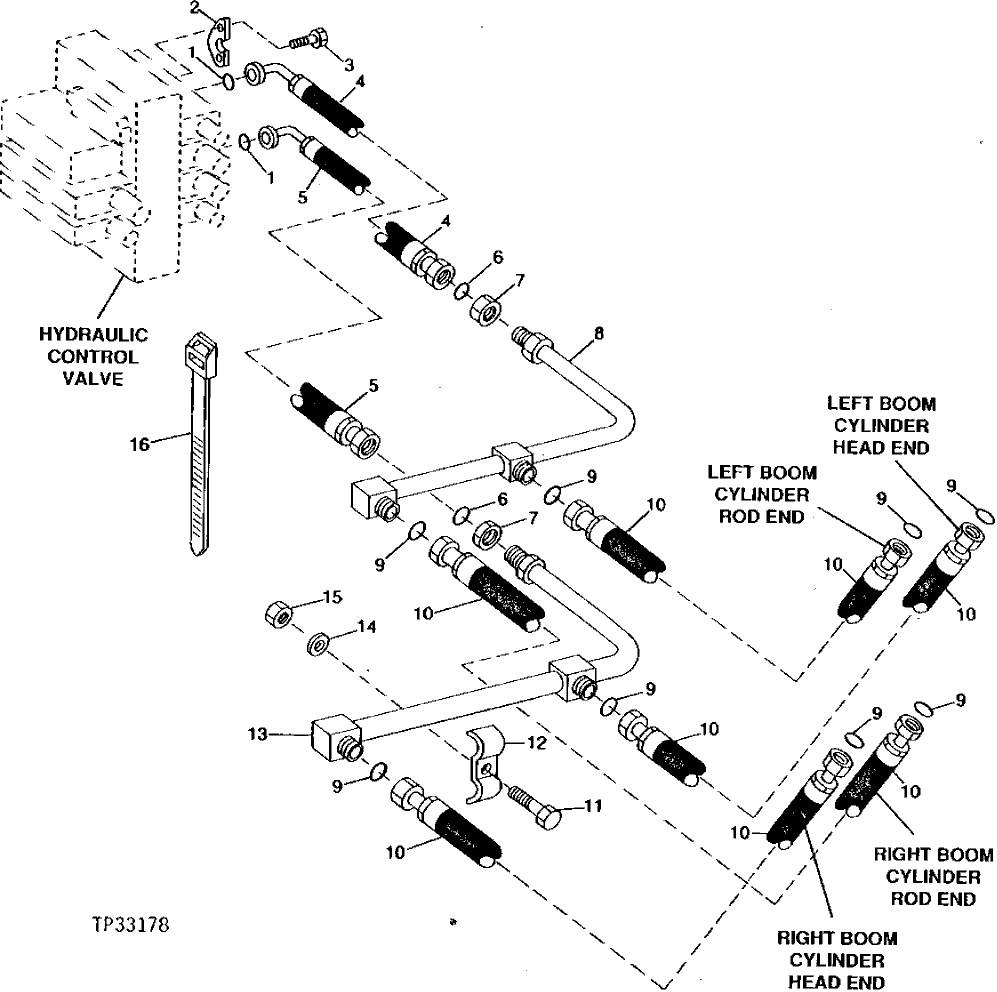

Запчасти John Deere 90ELC 272 - BOOM CYLINDER TO CONTROL VALVE LINES ( - 553935) 2160 HYDRAULIC SYSTEM

1

T78313

O-Ring

2шт.

2

T107068

Flange Fitting

4шт.

3

19M7493

Cap Screw

M12 X 40

8шт.

4

AT147238

Hydraulic Hose

1" X 1219 mm (48") X 36.5252"

1шт.

5

AT147237

Hydraulic Hose

1" X 1195 mm (47") X 36.5252"

1шт.

6

T76938

O-Ring

2шт.

7

T78715

Nut

2шт.

8

AT147480

Line

1шт.

9

T77858

O-Ring

8шт.

10

AT147354

Hydraulic Hose

30.1752" X 872 mm (34-1/4") X 30.1752"

4шт.

11

19M7807

Screw

M10 X 60

2шт.

12

T35459

Clamp

JUNCTION TUBES TO MAINFRAME BRACKET

2шт.

13

AT147239

Oil Line

1шт.

14

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

15

14M7296

Flange Nut

M10

2шт.

16

N189220

Tie Band

(SUB FOR AA21510)BOOM HO SES TO LEFT PROPEL HOSES

1шт.
