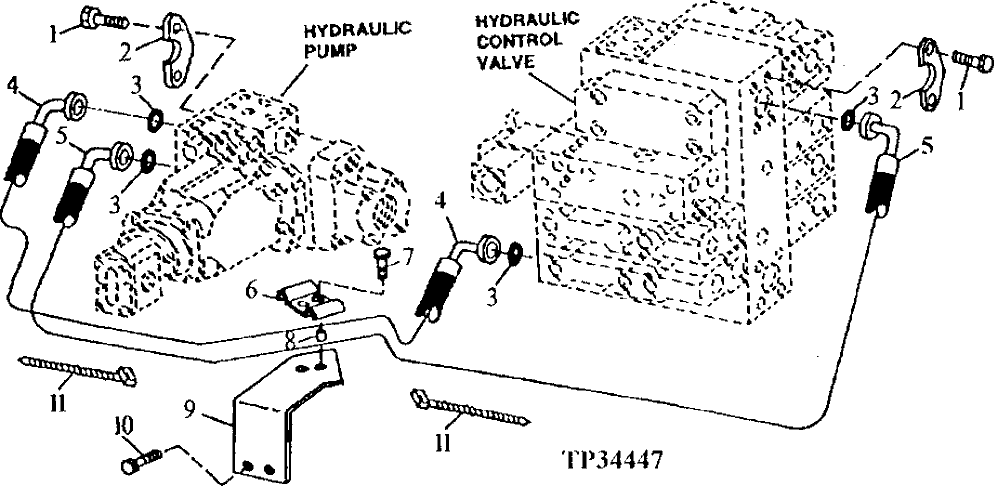

Запчасти John Deere 90ELC 270 - HYDRAULIC PUMP TO CONTROL VALVE HOSES ( - 556935) 2160 HYDRAULIC SYSTEM

1

19M7493

Cap Screw

M12 X 40

16шт.

2

T107068

Flange Fitting

8шт.

3

T78313

O-Ring

4шт.

4

AT152126

Hydraulic Hose

1" X 1975 mm (77-3/4") X 1"

1шт.

5

AT168043

Hose

(SUB FOR AT152125)

1шт.

6

T35868

Clamp

1шт.

7

19M7816

Screw

M12 X 65

2шт.

8

28H294

Bushing

0.622" X 0.840" X 1-3/8"

2шт.

9

AT157619

Bracket

HOSES TO RIGHT REAR ENGINE MOUNT

1шт.

10

19M7787

Screw

M12 X 20

2шт.

11

N189220

Tie Band

(TIE TWO HOSES TOGETHER)

2шт.
