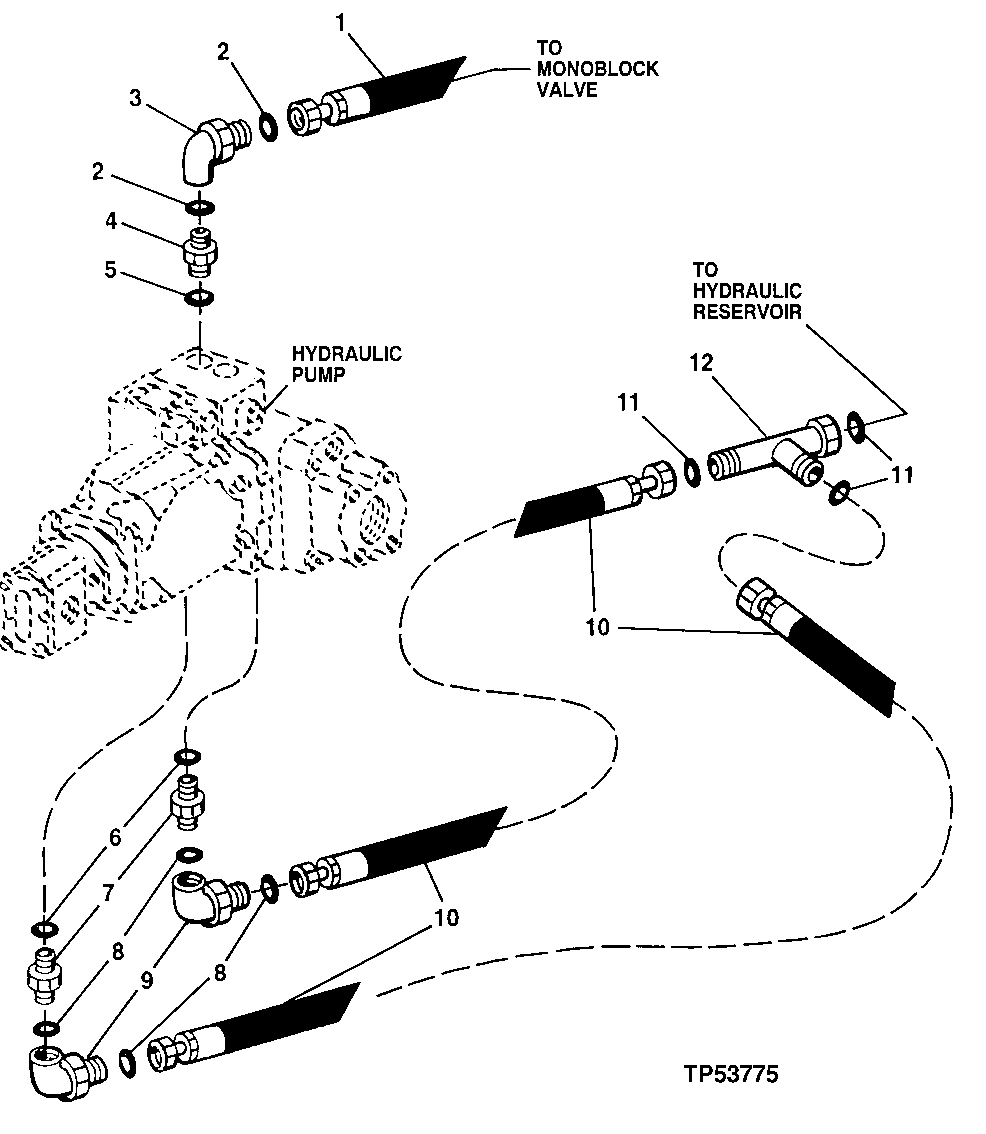

Запчасти John Deere 90ELC 269 - Hydraulic Pump Lines (559603 - ) 2160 HYDRAULIC SYSTEM

1

AT179358

Hydraulic Hose

17.4752" X 1549 mm (61") X 17.4752" (SUB FOR AT177788)

1шт.

2

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

2шт.

3

38H1094

Elbow Fitting

1шт.

4

38H5002

Adapter Fitting

1шт.

5

51M7041

O-Ring

11.300 X 2.200 mm

1шт.

6

51M7045

O-Ring

19.300 X 2.200 mm

2шт.

7

38H5121

Adapter Fitting

2шт.

8

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

9

38H1097

Elbow Fitting

2шт.

10

AT179359

Hydraulic Hose

2шт.

11

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

3шт.

12

38H1033

Tee Fitting

4шт.
