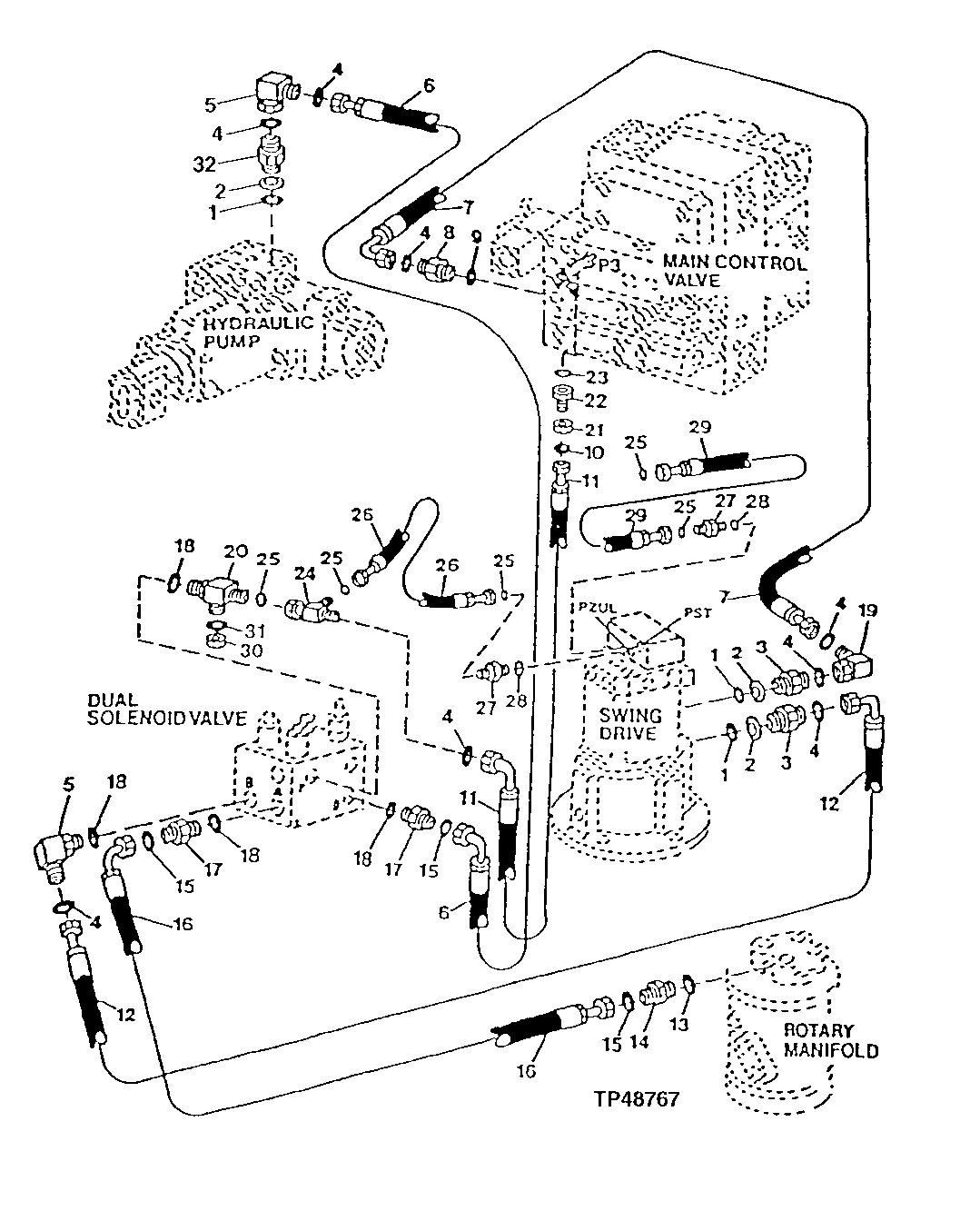

Запчасти John Deere 90ELC 267 - SWING BRAKE LINES ( - 556935) 2160 HYDRAULIC SYSTEM

1

T55758

O-Ring

3шт.

2

51M4236

Sealing Ring

3шт.

3

T104327

Adapter Fitting

2шт.

4

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

8шт.

5

38H1094

Elbow Fitting

2шт.

6

AT147487

Hydraulic Hose

9/16" X 1350 mm (53-1/4") X 17.4752"

1шт.

7

AT135309

Hydraulic Hose

17.4752" X 910 mm (35-3/4") X 17.4752"

1шт.

8

38H1172

Adapter Fitting

1шт.

9

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

10

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

1шт.

11

AT159112

Hydraulic Hose

13/16" X 520 mm (20-1/2") X 17.4752" (SUB FOR AT142043)

1шт.

12

AT84776

Hydraulic Hose

17.4752" X 1074 mm (42-1/4") X 17.4752"

1шт.

13

T76392

O-Ring

10.770 X 2.616 mm (0.424" X 0.103")

1шт.

14

4267506

Adapter Fitting

(SUB FOR AT137197)

1шт.

15

T77814

O-Ring

7.650 X 1.780 mm (0.301" X 0.070")

4шт.

16

AT147422

Hydraulic Hose

9/16" X 1099 mm (43-1/4") X 9/16"

1шт.

17

38H1168

Adapter Fitting

2шт.

18

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

19

38H1094

Elbow Fitting

1шт.

20

38H1023

Tee Fitting

1шт.

21

38H1355

Tube Nut

1шт.

22

38H1471

Reducer

1шт.

23

T77932

O-Ring

15.596 X 1.778 mm (0.614" X 0.070")

1шт.

24

38H1030

Tee Fitting

1шт.

25

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

5шт.

26

AT167988

Hydraulic Hose

17.4752" X 355 mm (14") X 17.4752"

1шт.

27

38H1160

Adapter Fitting

2шт.

28

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

2шт.

29

AT167987

Hydraulic Hose

(TO TEE AT SWING BRAKE REL EASE ON DIG SHUTTLE VALVE)

1шт.

30

38H1415

Fitting

1шт.

31

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

1шт.

32

38H1160

Adapter Fitting

(SUB FOR T104327, THIS APPLICATION)

1шт.
