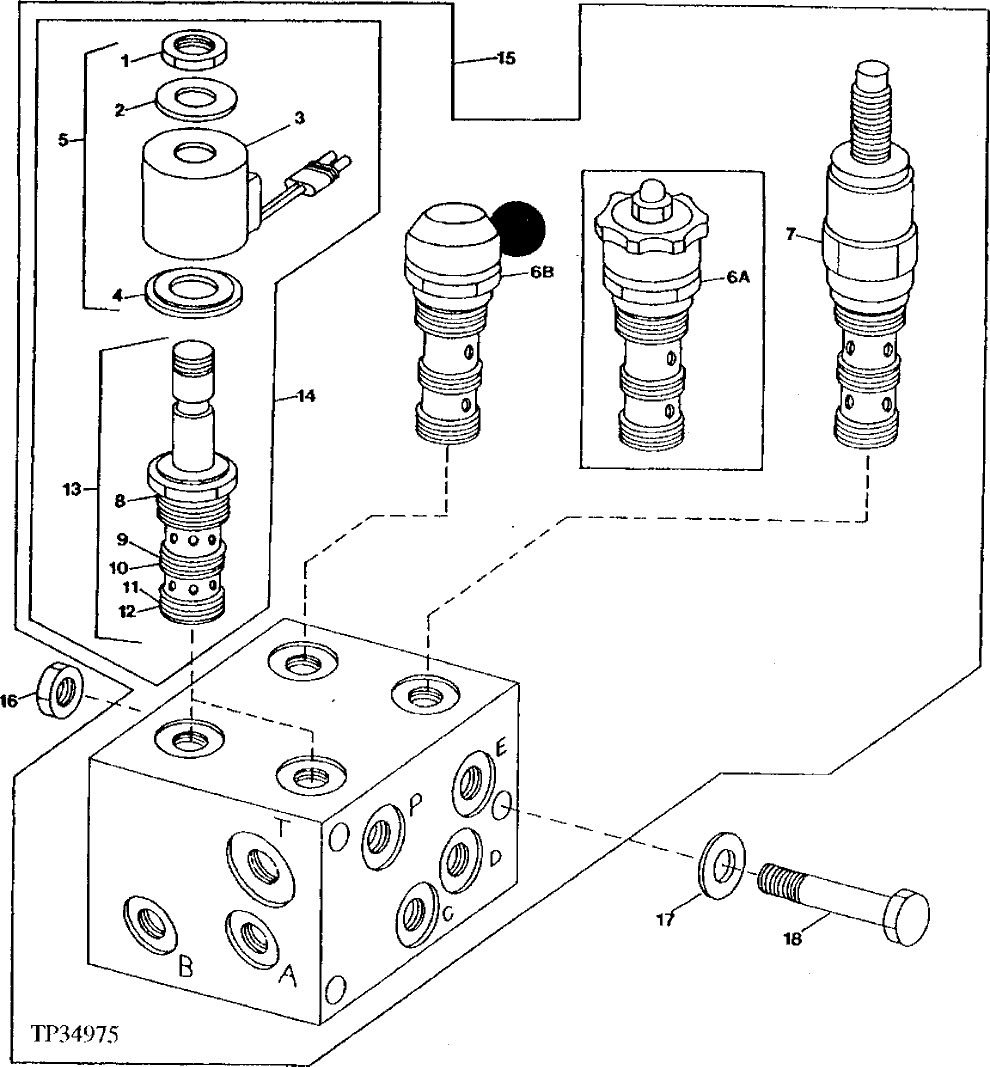

Запчасти John Deere 90ELC 262 - DUAL SOLENOID VALVE 2160 HYDRAULIC SYSTEM

1

Nut

(SUB AT139434)

1шт.

2

Washer

(SUB AT139434)

1шт.

3

AT139433

Electrical Coil

1шт.

4

T130847

Plate

1шт.

5

AT139434

Housing Kit

NOTE: DOES NOT INCLUDE COIL

1шт.

6A

Valve

(SUB AT147281)

1шт.

6B

AT157043

Manual Hydraulic Valve

1шт.

7

AT158341

Hydraulic Pressure Valve

1шт.

8

R47151

O-Ring

1шт.

9

R33259

O-Ring

1шт.

10

T81247

Back-Up Ring

1шт.

11

R28776

O-Ring

1шт.

12

R42926

Back-Up Ring

1шт.

13

AT139432

Hyd Actuated Control Valve

1шт.

14

AT139431

Solenoid Valve

2шт.

15

AT147281

Solenoid Hydraulic Valve

1шт.

16

14M7165

Lock Nut

M6

3шт.

17

24M7139

Washer

6.400 X 18 X 1.600 mm

3шт.

18

19M8254

Cap Screw

M6 X 110

3шт.
