251 - Main Hydraulic Control Valve ( - 556935)

Запчасти John Deere 90ELC 251 - Main Hydraulic Control Valve ( - 556935) 2160 HYDRAULIC SYSTEM

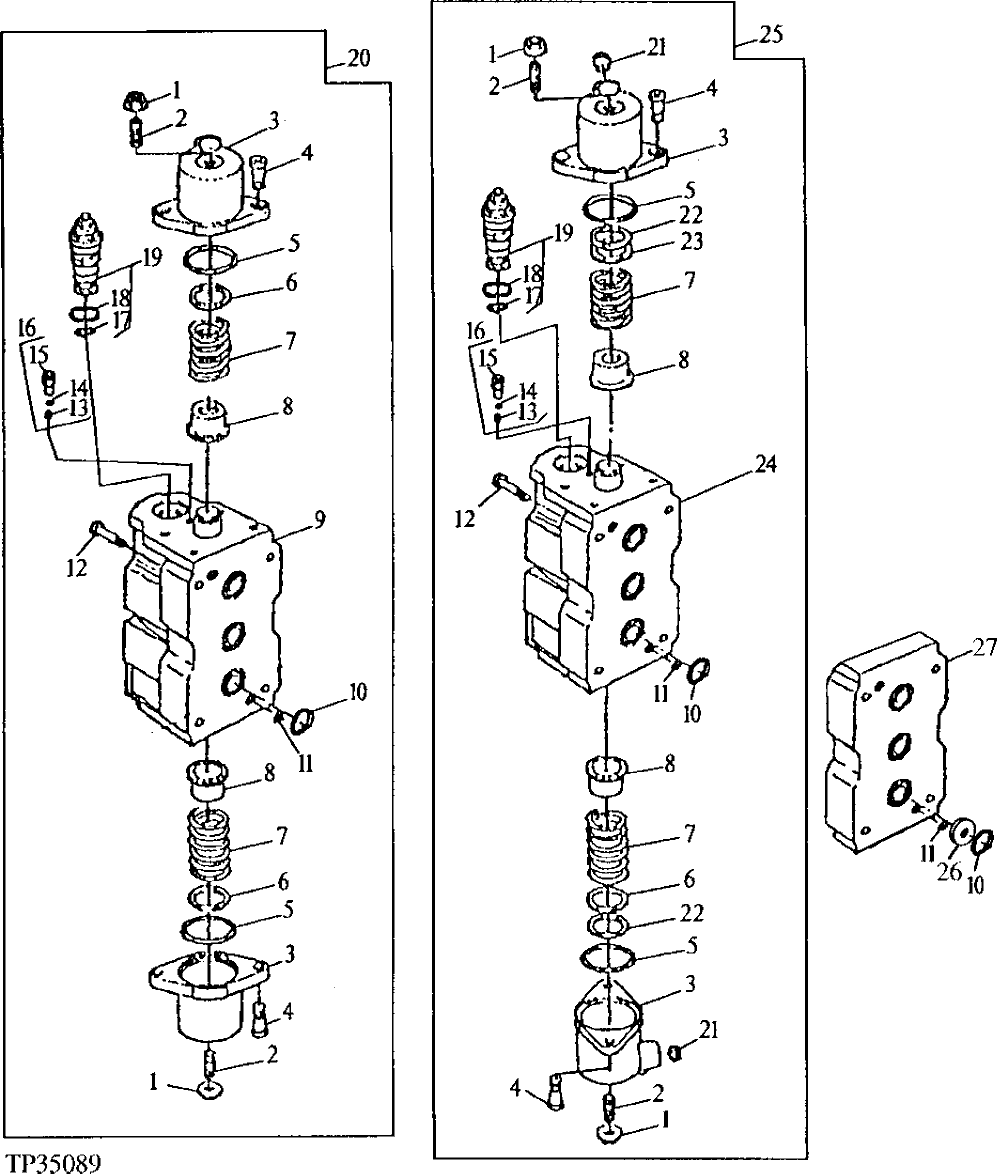

Схема запчастей John Deere 90ELC - 251 - Main Hydraulic Control Valve ( - 556935) 2160 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T107964

Nut

4шт.

2

T115243

Screw

4шт.

3

T153020

Cushion Cover

(SUB FOR T139570)

4шт.

4

19M7660

Screw

M8 X 20

8шт.

5

T153021

O-Ring

(SUB FOR T107880, THIS APPLICATION)

4шт.

6

Shim

(USE KIT AT152047)

3шт.

7

T139569

Spring

4шт.

8

T107944

Cap

BUCKET AND BOOM SECTIONS

4шт.

9

Housing

(SUB AT169477)

1шт.

10

T107888

O-Ring

6шт.

T107888

O-Ring

USE WITH BOOM REGENERATION

3шт.

11

T107877

O-Ring

4шт.

T107877

O-Ring

USE WITH BOOM REGENERATION

2шт.

12

19M8169

Screw

M12 X 30

4шт.

19M8169

Screw

M12 X 30

4шт.

19M8489

Screw

M12 X 65 USE WITH BOOM REGENERATION

4шт.

13

Spring

(SUB AT156518)

2шт.

14

Ball

(SUB AT156518)

2шт.

15

Valve Seat Insert

(SUB AT156518)

2шт.

16

AT156518

Pressure Relief Valve

2шт.

17

N31772

O-Ring

4шт.

18

T139571

O-Ring

4шт.

19

AT152054

Pressure Relief Valve

4шт.

20

AT169477

Hyd Actuated Control Valve

(SUB FOR AT152056)BUCKET

1шт.

21

AT112757

Check Valve

2шт.

22

Shim

(USE KIT AT152047)

2шт.

23

Shim

(USE KIT AT152047)

1шт.

24

Housing

(SUB AT167730)

1шт.

25

AT167730

Hyd Actuated Control Valve

BOOM (SUB FOR AT152053 (BEFORE SERIA L NO.545157:ALSO ORDER AT167733, T10 7888 (3), T154163 AND T107877 (2)))

1шт.

26

T154163

Orifice

USE WITH BOOM REGENERATION

1шт.

27

AT167733

Plate

BOOM REGENERATION

1шт.
