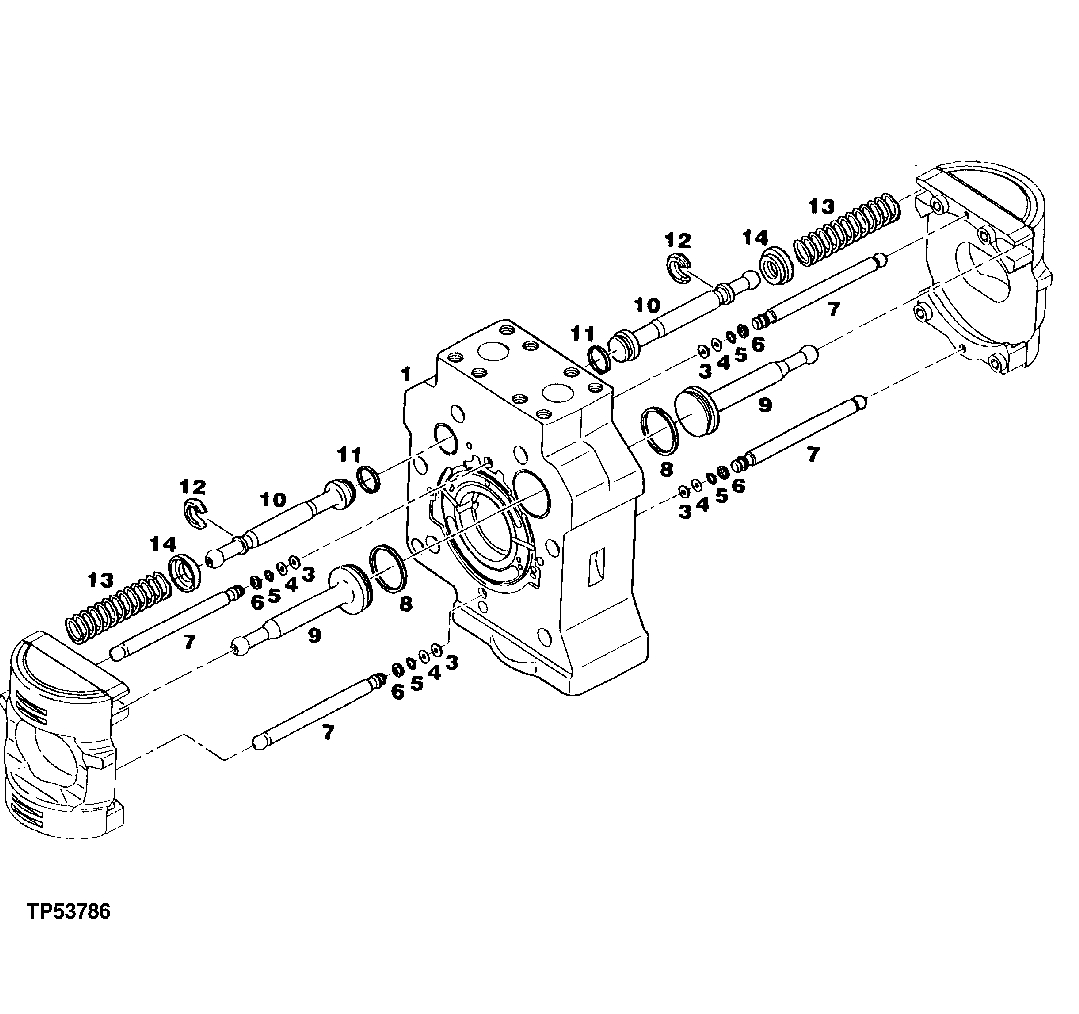

Запчасти John Deere 90ELC 246 - HYDRAULIC PUMP VALVE PLATE (559603 - ) 2160 HYDRAULIC SYSTEM

1

Housing

1шт.

AT191556

Bushing Kit

(USE TO REPLACE BUSHINGS IN HYD PUMP HO USING) (INCLUDES FOUR BUSHINGS AND FOUR PORT PLATE DOWEL PINS) (NOT ILLUSTRATED)

1шт.

3

T185432

Washer

1.5 MM

ARшт.

T185433

Washer

1.6 MM

ARшт.

T185434

Washer

1.7 MM

ARшт.

T185435

Washer

1.8 MM

ARшт.

T185436

Washer

1.9 MM

ARшт.

4

T185437

Shim

ARшт.

5

T185438

O-Ring

4шт.

6

Ring

SUPPORT

4шт.

7

Shaft

4шт.

8

T185439

Piston Ring

2шт.

9

Piston

SERVO

2шт.

10

Piston

SERVO

2шт.

11

T185440

Seal

RING

2шт.

12

Plate

SPRING

2шт.

13

Compression Spring

2шт.

14

Plate

SPRING

2шт.

15

Seal

3 IN

1шт.

16

Cover

3 IN

1шт.

17

Screw

CAP

4шт.

18

Seal

1 IN

2шт.

19

Cover

1 IN

2шт.

20

Screw

CAP

4шт.
