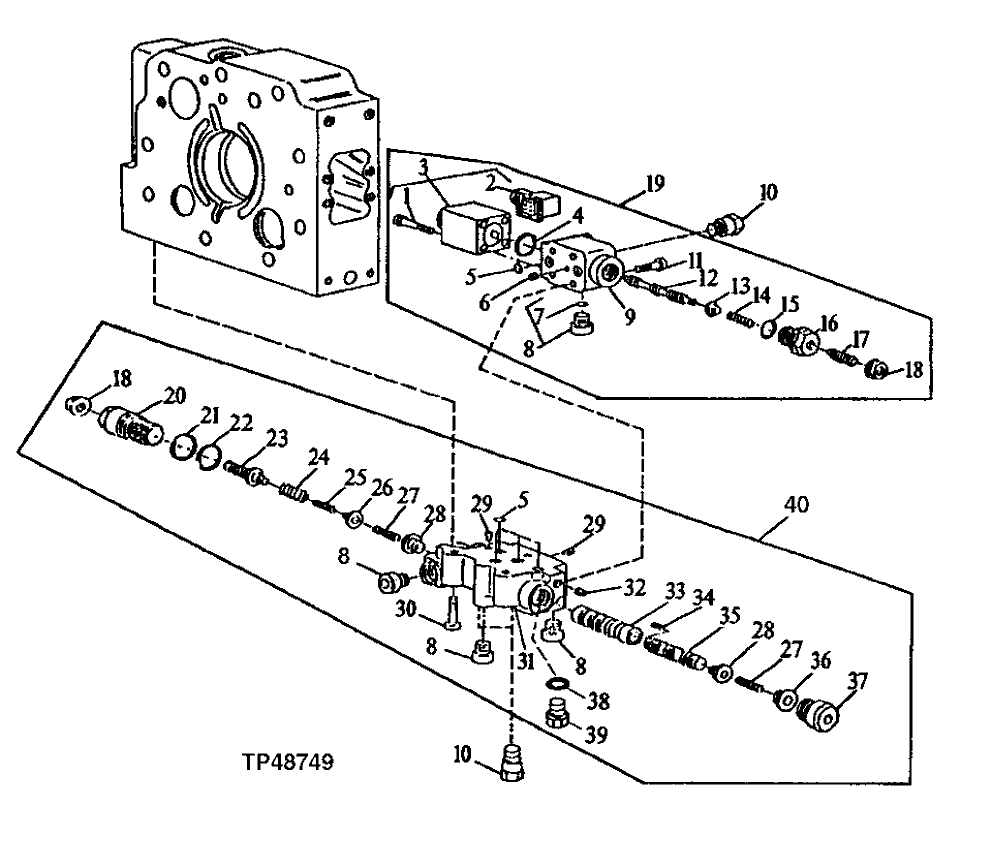

Запчасти John Deere 90ELC 242 - HYDRAULIC PUMP PRESSURE REGULATOR ( - 541310) 2160 HYDRAULIC SYSTEM

1

19M8812

Screw

M4 X 50

4шт.

2

Connector

(SUB AT152024)

1шт.

3

AT152024

Solenoid

1шт.

4

T49819

O-Ring

1шт.

5

T74550

O-Ring

6шт.

6

T107870

Plug

1шт.

7

T107983

Seal

1шт.

8

AT112799

Fitting Plug

4шт.

9

Housing

(SUB AT152023)

1шт.

10

T74522

Adapter Fitting

METRIC PORT ADAPTER

3шт.

O-Ring

(NOT ILLUSTRATED)

1шт.

11

19M8532

Screw

M6 X 35

4шт.

12

Piston

(SUB AT152023)

1шт.

13

Retainer

(SUB AT152023)

1шт.

14

T139532

Spring

1шт.

15

T139533

O-Ring

1шт.

16

T139534

Plug

1шт.

17

T139535

Bolt

1шт.

18

T115240

Nut

2шт.

19

Regulator

( AT152023 NO LONGER AV AILABLE) (SUB AT165682)

1шт.

AT165682

Regulator

REPLACEMENT

1шт.

20

T139531

Plug

1шт.

21

T115245

Back-Up Ring

1шт.

22

T74497

O-Ring

1шт.

23

T139530

Pin

1шт.

24

T139529

Spring

1шт.

25

T139528

Spring

1шт.

26

Retainer

(SUB AT152021)

1шт.

27

Piston

(SUB AT152021)

2шт.

28

Bushing

(SUB AT152021)

2шт.

29

Stop

(SUB AT152021)

2шт.

30

T116311

Bolt

3шт.

31

Housing

(SUB AT152021)

1шт.

32

15M7032

Pipe Plug

(SUB FOR T121804)

1шт.

33

Bushing

(SUB AT152021)

1шт.

34

Pin

(SUB AT152021)

1шт.

35

Guide

(SUB AT152021)

1шт.

36

Bushing

(SUB AT152021)

1шт.

37

AT152022

Plug

(INCLUDES O-RING)

1шт.

38

T144194

O-Ring

1шт.

39

AT158788

Check Valve

1шт.

40

Regulator

( AT152021 NO LONGER AVAILABLE) (SUB AT1 65681 (NOTE: MAY ALSO REQUIRE (3) T74522 ADAPTERS AND (1) AT158788 CHECK VALVES))

1шт.

Regulator

REPLACEMENT ( AT165681 NO LON GER AVAILABLE) (SUB AT180163)

1шт.

AT180163

Regulator

REPLACEMENT

1шт.
