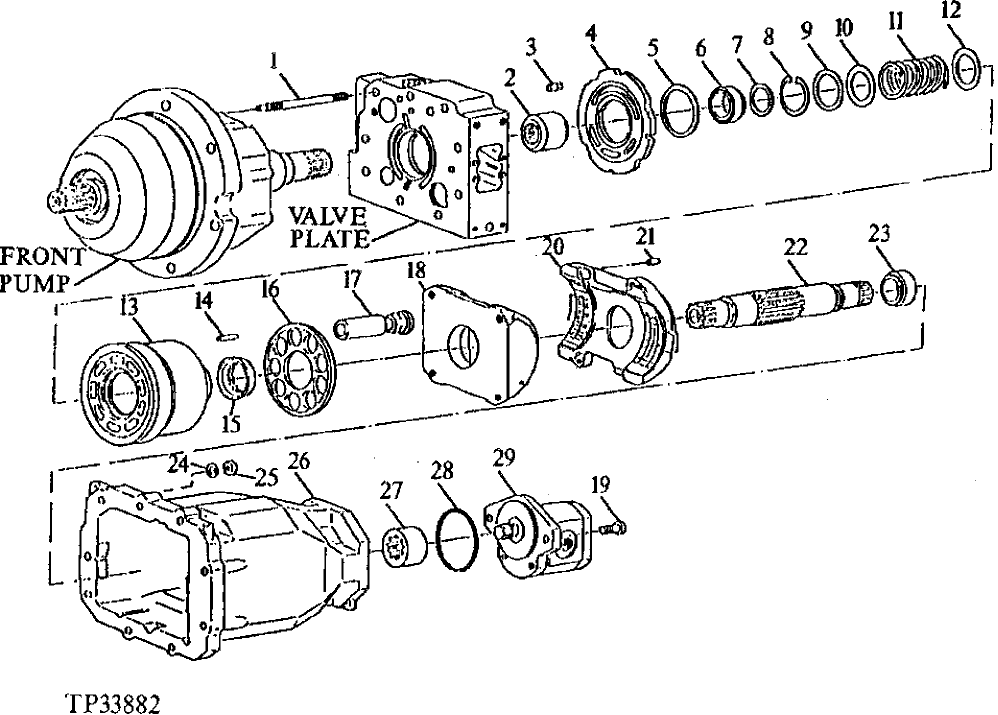

Запчасти John Deere 90ELC 241 - REAR HYDRAULIC PUMP ( - 559602) 2160 HYDRAULIC SYSTEM

1

T121667

Stud

9шт.

2

T107908

Splined Coupling

1шт.

3

T107823

Pin

1шт.

4

Plate

(K)

1шт.

5

AT112855

Shim Kit

(K) SHIM

1шт.

6

AT163764

Bearing

(K) (SUB FOR JD37026)

1шт.

7

T121602

Washer

(K)

1шт.

8

U14128

Snap Ring

(K)

1шт.

9

Shim

(K)

1шт.

10

T107832

Washer

(K)

1шт.

11

T121601

Spring

(K)

1шт.

12

T107834

Washer

(K)

1шт.

13

Cylinder Block

(K)

1шт.

14

Needle Bearing

(K)

3шт.

15

Retainer

(K)

1шт.

16

Plate

(K)

1шт.

17

Piston

(K)

9шт.

18

Swash Plate

(K)

1шт.

19

19M8881

Screw

M10 X 30

2шт.

20

Bearing

(K) CRADLE

1шт.

21

44M7072

Pin

10 X 23 mm

1шт.

22

T139513

Drive Shaft

1шт.

23

JD10427

Bearing

1шт.

24

T107826

Washer

9шт.

25

14M7275

Nut

M12

9шт.

26

T139514

Housing

1шт.

27

T139515

Coupling

1шт.

28

T139539

O-Ring

1шт.

29

AT152011

Pump

PILOT

1шт.

AZ30292

Seal Kit

(NOT ILLUSTRATED)

1шт.

AT125586

Rotating Platform

INCLUDES ALL (K) PARTS (REAR ROTATING GROUP)

1шт.
