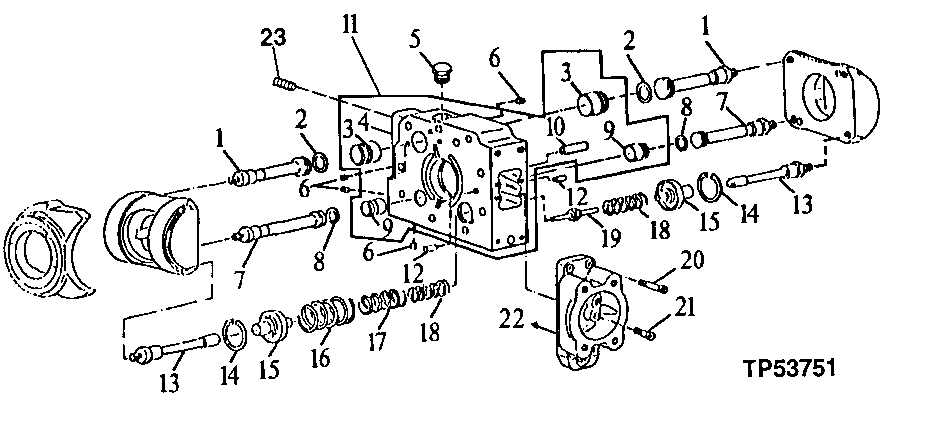

Запчасти John Deere 90ELC 239 - HYDRAULIC PUMP VALVE PLATE ( - 559602) 2160 HYDRAULIC SYSTEM

1

AT152015

Piston

2шт.

2

T107891

Piston Ring

2шт.

3

Bushing

(SUB AT152014)

2шт.

4

Housing

(K) (SUB AT152014)

1шт.

5

R27474

Drain Plug

1шт.

R26906

O-Ring

1шт.

6

15M7032

Pipe Plug

(SUB FOR T121804)

8шт.

7

AT125582

Piston

2шт.

8

T107892

Piston Ring

2шт.

9

Bushing

(K) (SUB AT152014)

2шт.

10

Tube

(SUB AT152014)

1шт.

11

AT152014

Housing

1шт.

AT170962

Bushing Kit

(USE TO REPLACE BUSHINGS IN HYD PUMP HOUSING) (NOT ILLUSTRATED)

1шт.

12

44M7086

Dowel Pin

6 X 12 mm

2шт.

13

AT152016

Rod

2шт.

14

40M7226

Snap Ring

2шт.

15

T139500

Plate

2шт.

16

T139504

Spring

1шт.

17

Spring

( T139503 NLA)

1шт.

18

T139501

Spring

2шт.

19

T139502

Plate

1шт.

20

19M8169

Screw

M12 X 30

4шт.

21

19M7660

Screw

M8 X 20

4шт.

22

T107907

Flange

1шт.

23

AT108944

Plug

(BLEED SCREW) BLEED PORT IN VALVE H OUSING ABOVE TOP DISCHARGE HOSE PORT

1шт.

AT170962

Bushing Kit

INCLUDES ALL (K) PARTS (ACTUATOR BUSHING)

1шт.
