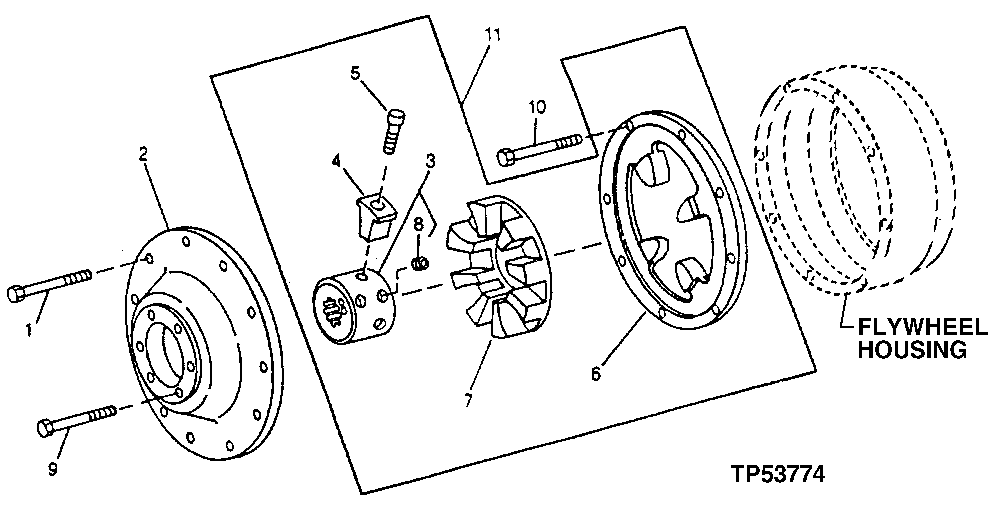

Запчасти John Deere 90ELC 236 - HYDRAULIC PUMP DRIVE AND MOUNTING PLATE ( - 559602) 2160 HYDRAULIC SYSTEM

1

19H3483

Cap Screw

3/8" X 1-1/8"

12шт.

2

T104378

Plate

1шт.

3

AT114854

Hub

(INCLUDES (4) T108082 AND ( 4) T108085 AND (2) 22M7130)

1шт.

4

T108082

Insert

4шт.

5

T108085

Cap Screw

4шт.

6

T108084

Flange

1шт.

7

T108083

Disk

FLEX COUPLING

1шт.

8

22M7130

Set Screw

M16 X 20

2шт.

9

19M8341

Screw

M12 X 45 SOCKET HEAD

6шт.

10

19H3483

Cap Screw

3/8" X 1-1/8"

8шт.

11

AT107262

Drive

1шт.
