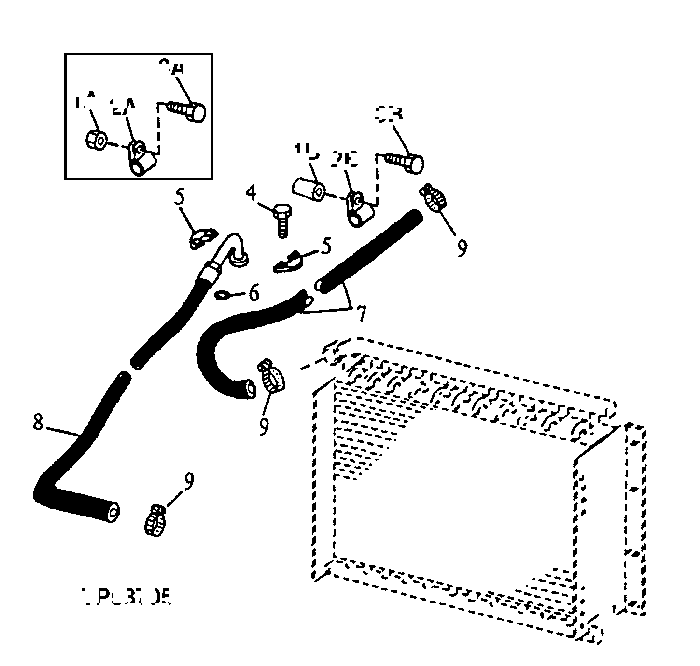

Запчасти John Deere 90ELC 235 - Hydraulic Oil Cooler Hoses 2160 HYDRAULIC SYSTEM

1A

14M7296

Flange Nut

M10

1шт.

1B

28H3389

Spacer

0.423" X 0.675" X 1"

1шт.

2A

N198631

Clamp

HOSE TO BAFFLE ABOVE MAIN CONTROL VALVE

1шт.

2B

N198631

Clamp

HOSE TO SPACER TO WIRE HARNESS CLAMP TO BA FFLE AT LEFT TOP OF WINDOW IN CENTER BAFFLE

1шт.

3A

19M7784

Screw

M10 X 20

1шт.

3B

19M7806

Screw

M10 X 50

1шт.

4

19M7358

Cap Screw

M10 X 40

4шт.

5

R29867

Flange Fitting

HOSE TO MAIN CONTROL VALVE

2шт.

6

T72216

O-Ring

1шт.

7

T143048

Hydraulic Hose

COOLER TO RESERVOIR (SUB FOR T144739)

1шт.

T160398

Hydraulic Hose

OIL COOLER TO RESERVOIR

1шт.

8

AT157525

Hydraulic Hose

1шт.

9

AT152191

Hose Clamp

3шт.
