Запчасти John Deere 90ELC 225 - VANDAL COVER 1910 Hood Or Engine Enclosure

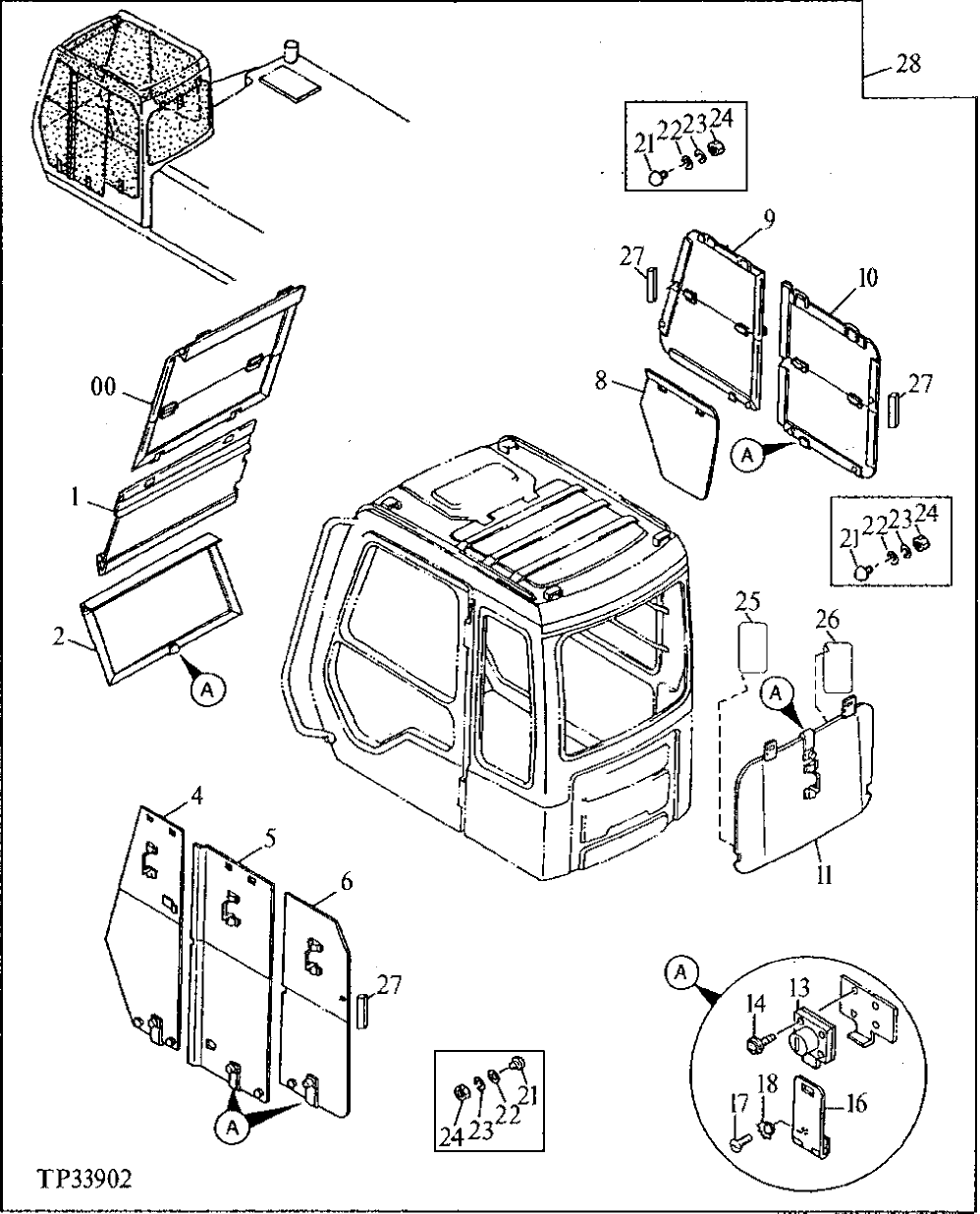

Схема запчастей John Deere 90ELC - 225 - VANDAL COVER 1910 Hood Or Engine Enclosure

Артикул

Название

Примечание

Количество

0

AT155170

Cover

1шт.

1

AT155171

Cover

1шт.

2

AT155172

Cover

1шт.

4

AT155173

Cover

1шт.

5

AT152205

Cover

1шт.

6

Cover

(SUB AT155175)( AT1551 74 NO LONGER AVAILABLE)

1шт.

AT155175

Cover

1шт.

8

AT154908

Cover

1шт.

9

AT155176

Cover

1шт.

10

AT155177

Cover

1шт.

11

AT155159

Cover

1шт.

13

4361601

Lock

(SUB FOR TH108982 ) (SUB FOR AT176636)

5шт.

14

21M7022

Screw

M5 X 20

16шт.

21M7271

Screw

M5 X 16 (USE WITH AT152205 COVER)

4шт.

16

TH108983

Hinge

5шт.

17

21M7249

Screw

M5 X 10

10шт.

18

T205218

Washer

(SUB FOR TH111908, 4107762)

10шт.

21

Stop

( AT155189 USE IF AVAILABLE)

16шт.

22

24M7027

Washer

5.300 X 10 X 1 mm

16шт.

23

12M7064

Lock Washer

5 mm

16шт.

24

14M7297

Nut

M5

16шт.

25

AT152168

Label

1шт.

26

T144785

Label

1шт.

27

Isolator

(MAKE FROM T65321 BULK MATERIAL, CUT TO LENGTH)

ARшт.

28

AT139550

Kit

INCLUDES "VANDAL COVER STORAGE TRAY" PARTS ON FOLLOWING PAGE

1шт.

Выбрано товаров: 25
