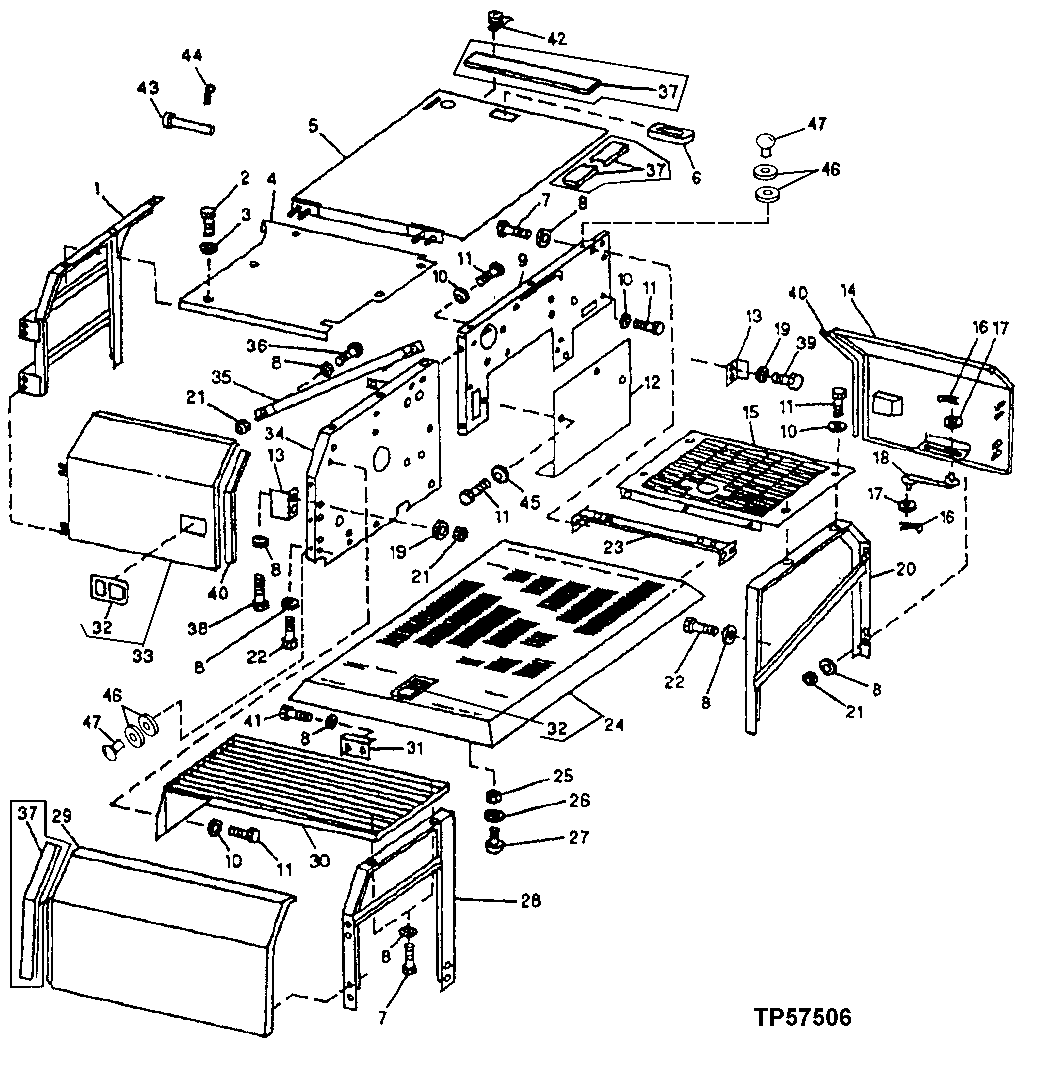

Запчасти John Deere 90ELC 220 - ENGINE COVERS, DOORS AND HOOD 1910 Hood Or Engine Enclosure

1

AT147336

Support

1шт.

2

19M7784

Screw

M10 X 20

6шт.

3

24M7296

Washer

10.500 X 30 X 2.500 mm

6шт.

4

AT147326

Cover

LEFT FRONT

1шт.

5

AT147325

Cover

CENTER

1шт.

AT147289

Hinge

(SUB FOR AT45090, THIS APPLICATION ) (INCLUDES 11M7015 AND T148131)(WELDED)

2шт.

11M7015

Cotter Pin

3.200 X 25 mm (NOT ILLUSTRAT ED) (INCLUDED WITH AT147289)

1шт.

T148131

Pin Fastener

(NOT ILLUSTRATED) (INCLUDED WITH AT147289)

1шт.

6

R20759

Grommet

2шт.

7

19M7787

Screw

M12 X 20

8шт.

8

T29342

Washer

44шт.

9

AT147340

Deflector

1шт.

10

24M7296

Washer

10.500 X 30 X 2.500 mm

15шт.

11

19M7784

Screw

M10 X 20

19шт.

12

T138675

Cover

1шт.

13

T138626

Angle

2шт.

14

AT147287

Door

RIGHT REAR SIDE SERVICE

1шт.

AT147289

Hinge

(SUB FOR AT45090, THIS APPLICATION ) (INCLUDES 11M7015 AND T148131)(WELDED)

2шт.

11M7015

Cotter Pin

3.200 X 25 mm (NOT ILLUSTRAT ED) (INCLUDED WITH AT147289)

1шт.

T148131

Pin Fastener

(NOT ILLUSTRATED) (INCLUDED WITH AT147289)

1шт.

15

AT152087

Cover

1шт.

16

11M7015

Cotter Pin

3.200 X 25 mm

10шт.

17

24H1162

Washer

17/32" X 1-1/4" X 0.060"

9шт.

24H1345

Washer

17/32" X 1-3/4" X 0.060" (USE WITH (2) AT45029 STOP RODS IN CENTER BAFFLE SLIDE S AND STOP RODS TO CENTER COVER AND HOOD )

6шт.

18

AT45029

Stop

5шт.

19

24M7240

Washer

13 X 25 X 3 mm

12шт.

20

AT147342

Support

1шт.

21

14M7401

Lock Nut

M12

24шт.

22

19M7789

Screw

M12 X 30

10шт.

23

AT147327

Angle

1шт.

24

AT147324

Hood

1шт.

AT147289

Hinge

(SUB FOR AT45090, THIS APPLICATION ) (INCLUDES 11M7015 AND T148131)(WELDED)

2шт.

11M7015

Cotter Pin

3.200 X 25 mm (NOT ILLUSTRAT ED) (INCLUDED WITH AT147289)

1шт.

T148131

Pin Fastener

(NOT ILLUSTRATED) (INCLUDED WITH AT147289)

1шт.

25

14M7298

Flange Nut

M8

2шт.

26

24M7298

Washer

8.400 X 25 X 2 mm

2шт.

27

AT59634

Bumper

2шт.

28

AT147338

Support

1шт.

29

AT147286

Door

(REQUIRES (4) 14M7273 AND (4) 19M8011)

1шт.

AT147289

Hinge

(SUB FOR AT45090, THIS APPLICATION ) (INCLUDES 11M7015 AND T148131)(WELDED)

2шт.

11M7015

Cotter Pin

3.200 X 25 mm (NOT ILLUSTRAT ED) (INCLUDED WITH AT147289)

1шт.

T148131

Pin Fastener

(NOT ILLUSTRATED) (INCLUDED WITH AT147289)

1шт.
