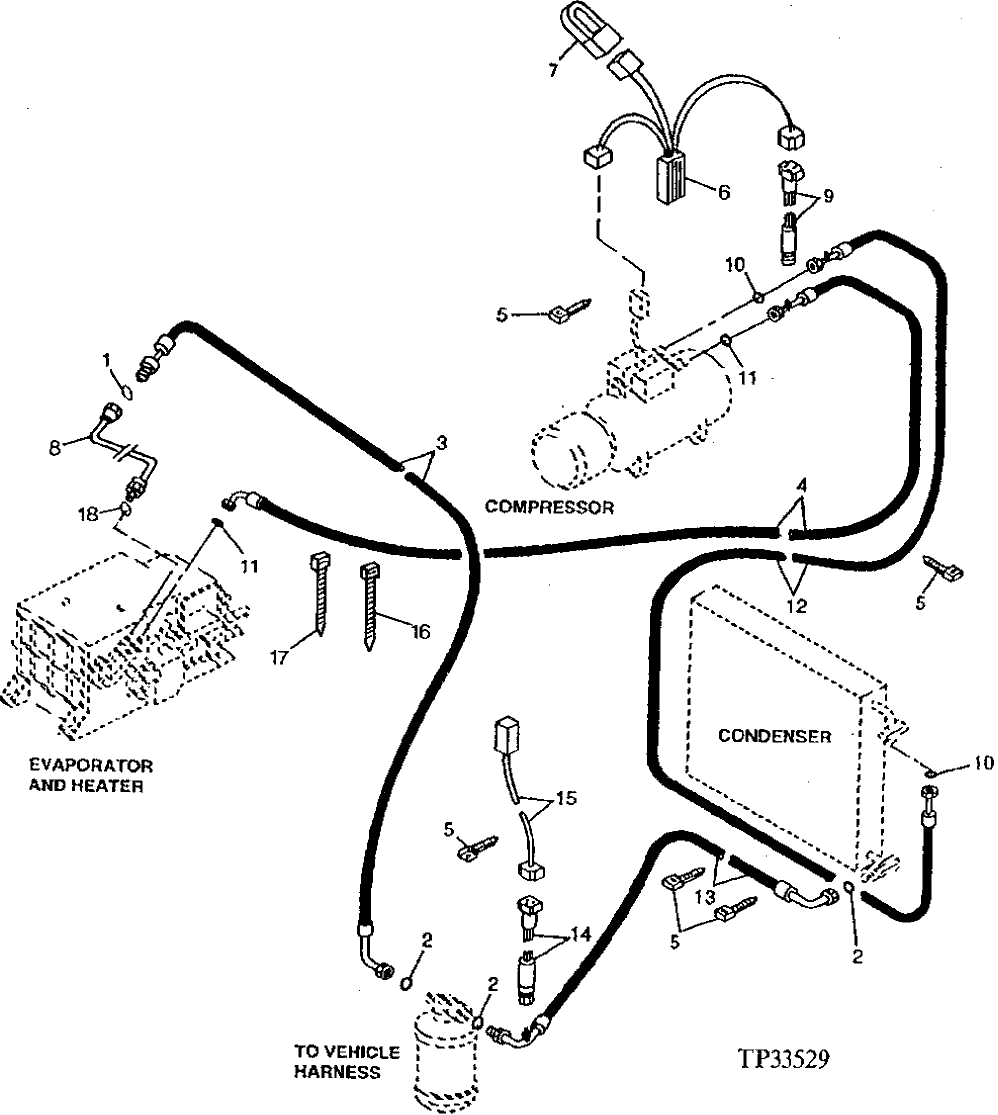

Запчасти John Deere 90ELC 217 - AIR CONDITIONER REFRIGERANT LINES AND HOSES ( - 541550) 1830 HEATING AND AIR CONDITIONING

1

R27166

O-Ring

1шт.

2

R10093

O-Ring

3шт.

3

AT152115

Hose

EVAPORATOR TO RECEIVER/DRYER

1шт.

4

AT152117

Refrigerant Hose

EVAPORATOR TO CONPRESSER

1шт.

5

R44302

Tie Band

ARшт.

6

AT152122

Wiring Harness

1шт.

7

AT103399

Diode

1шт.

8

AT152201

Fuel Line

1шт.

9

AT63265

Switch

HIGH PRESSURE

1шт.

10

P51212

O-Ring

2шт.

11

R33259

O-Ring

2шт.

12

AT152116

Refrigerant Hose

COMPRESSER TO CONDENSER

1шт.

13

AT152118

Hose

CONDENSER TO RECEIVER/DRYER

1шт.

14

AT63266

Switch

LOW PRESSURE

1шт.

15

AT152123

Wiring Harness

1шт.

16

H77698

Tie Band

5шт.

17

R44302

Tie Band

2шт.

18

R34802

O-Ring

1шт.
