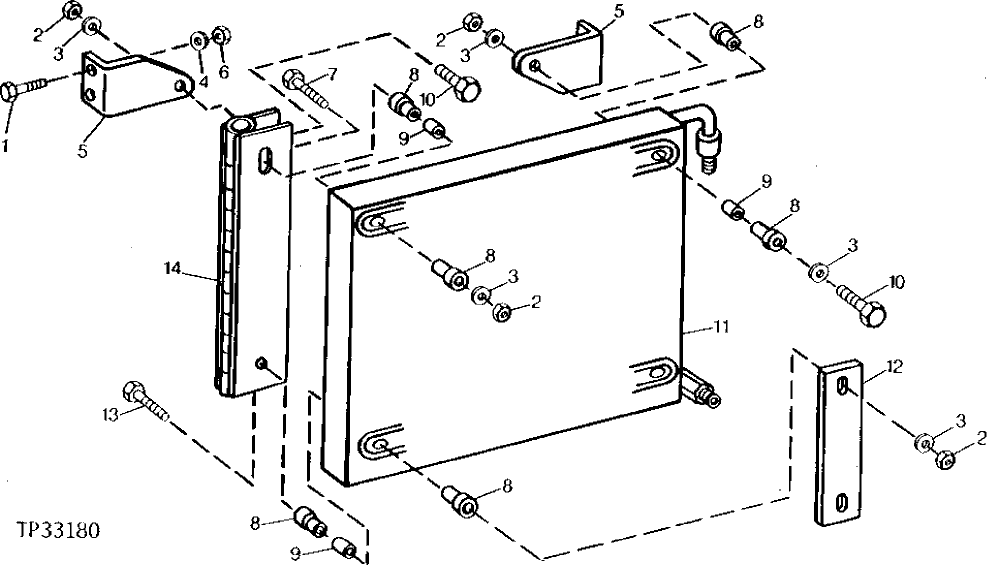

Запчасти John Deere 90ELC 215 - Air Conditioner Condenser ( - 541550) 1830 HEATING AND AIR CONDITIONING

1

19M7865

Screw

M8 X 16

8шт.

2

14M7166

Lock Nut

M8

2шт.

3

24H1299

Washer

3/8" X 1-1/4" X 0.065"

6шт.

4

24M7234

Washer

13 X 25 X 3 mm

8шт.

5

T138800

Bracket

2шт.

6

14M7166

Lock Nut

M8

8шт.

7

19M7270

Cap Screw

M8 X 65 (UPPER HINGE)

1шт.

8

AT116162

Isolator

8шт.

9

28H1903

Bushing

0.364" X 0.540" X 3/4"

4шт.

10

19M8402

Cap Screw

M8 X 65

2шт.

11

AT66976

Vapor Condenser

1шт.

12

H80636

Strap

1шт.

13

19M7274

Cap Screw

M8 X 70 (LOWER HINGE)

1шт.

14

AT79346

Hinge

1шт.
