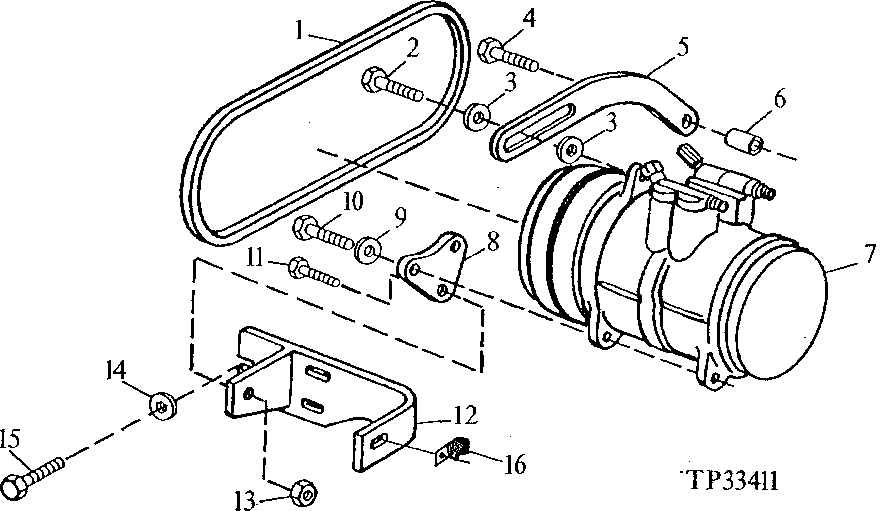

Запчасти John Deere 90ELC 211 - AIR CONDITIONER COMPRESSOR AND MOUNTING BRACKETS ( - 541550) 1830 HEATING AND AIR CONDITIONING

1

H86275

V-Belt

1шт.

2

19M8357

Cap Screw

M10 X 50

1шт.

3

24H1886

Washer

15/32" X 1-1/8" X 0.180"

2шт.

4

19H3031

Cap Screw

3/8" X 2-1/2"

1шт.

19H3065

Cap Screw

3/8" X 2"

1шт.

19H3031

Cap Screw

3/8" X 2-1/2" USE WITH AR74746

1шт.

5

Strap

R61562 NO LONGER AVAILABL E SUB AR74746 AND 19H3031)

1шт.

6

28H865

Bushing

0.423" X 0.675" X 9/16"

1шт.

7

TY6744

Compressor

NLA; ORDER SE501461; SUB FOR AT77894

1шт.

SE501461

Compressor

NLA; ORDER AT81298; REM AN FOR TY6744 OR AT77894

1шт.

AT81298

Compressor

1шт.

8

R71197

Bracket

2шт.

T78491

Bracket

2шт.

9

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

10

19M8007

Cap Screw

M10 X 25

4шт.

11

19M7786

Screw

M10 X 30

2шт.

12

AT152107

Support

1шт.

13

14M7167

Lock Nut

M10

2шт.

14

24H1864

Washer

13/32" X 3/4" X 7/64"

3шт.

15

19M7788

Screw

M12 X 25

3шт.

19M7786

Screw

M10 X 30

3шт.

16

T19935

Clamp

1шт.
