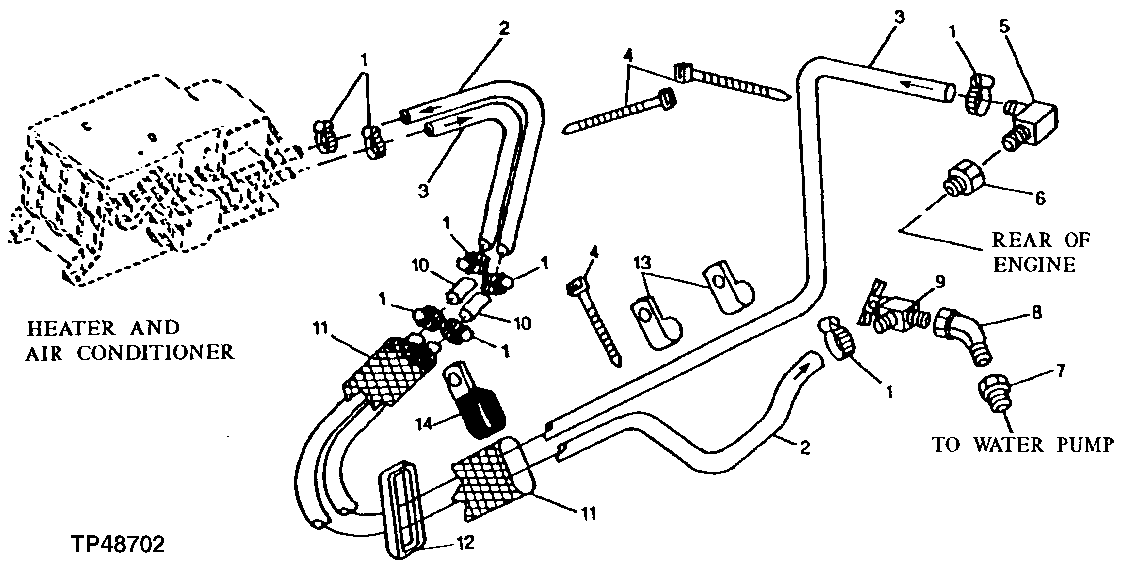

Запчасти John Deere 90ELC 209 - HEATER HOSES AND VALVES ( - 41550) 1830 HEATING AND AIR CONDITIONING

1

AR21837

Hose Clamp

8шт.

2

Hose

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

3

Hose

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

4

R44302

Tie Band

ARшт.

5

H62994

Hose Fitting

(SUB FOR AT35831, THIS APPLICATION)

1шт.

6

15H616

Pipe Bushing

3/4" (SUB FOR 15H576, THIS APPLICATION)

1шт.

7

15H586

Adapter Fitting

3/8"

1шт.

8

15H221

Elbow Fitting

3/8"

1шт.

9

AT169553

Drain Valve

(SUB FOR AT169553)

1шт.

10

T76200

Tube

(SUB FOR T76200, THIS APPLICATION)

2шт.

11

T142542

Cover

1шт.

12

R20759

Grommet

1шт.

13

T38377

Clamp

3шт.

14

AH77869

Clip

4шт.
